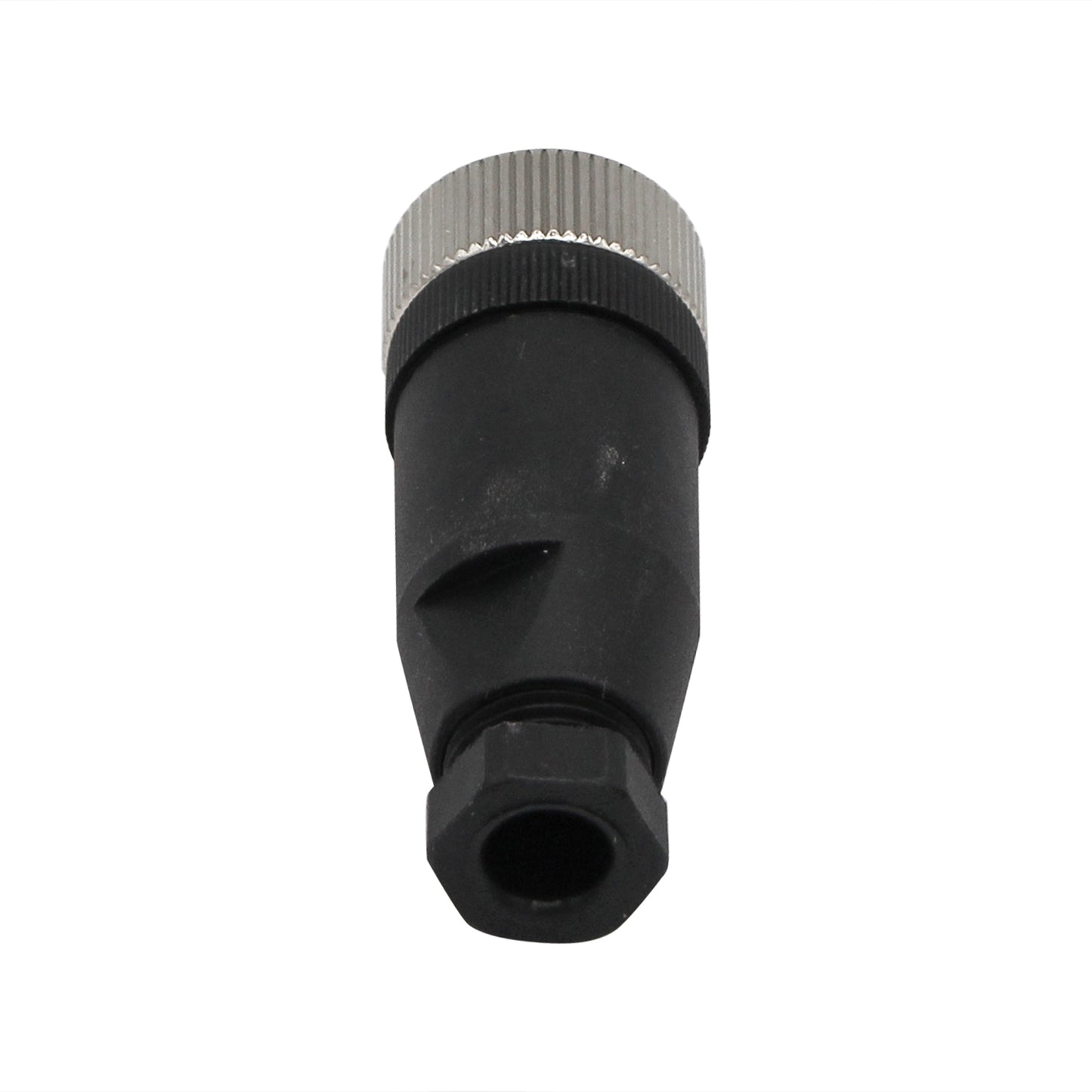

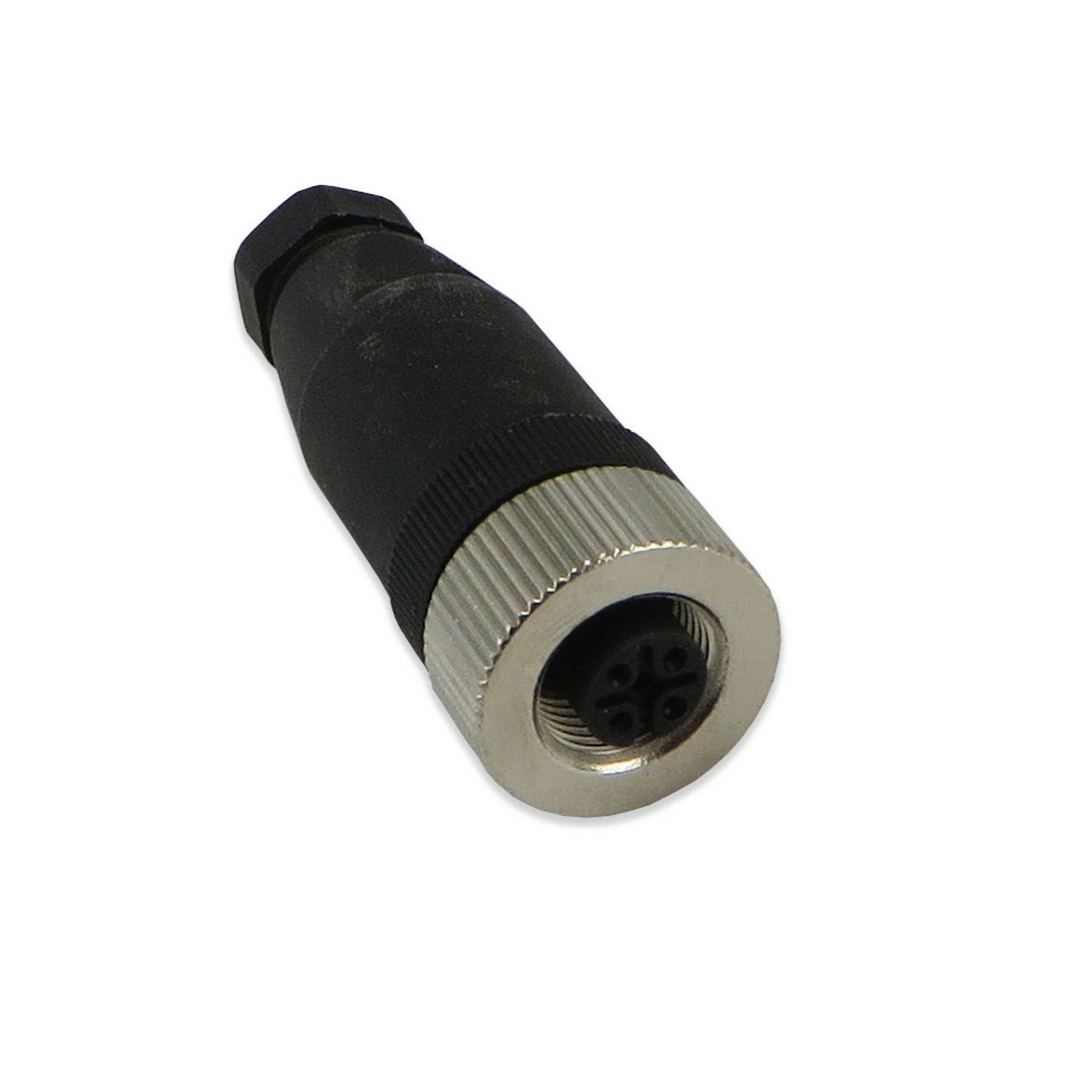

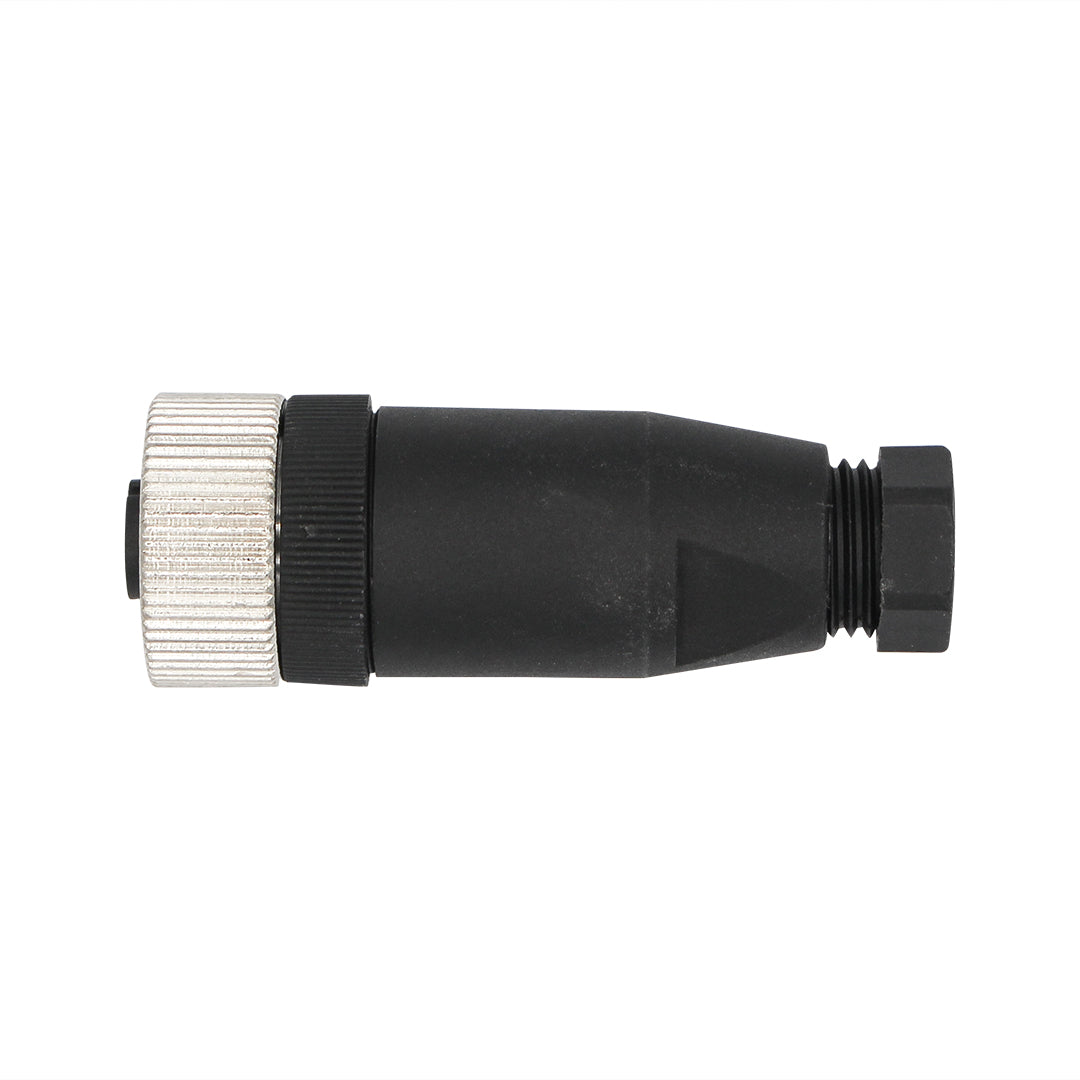

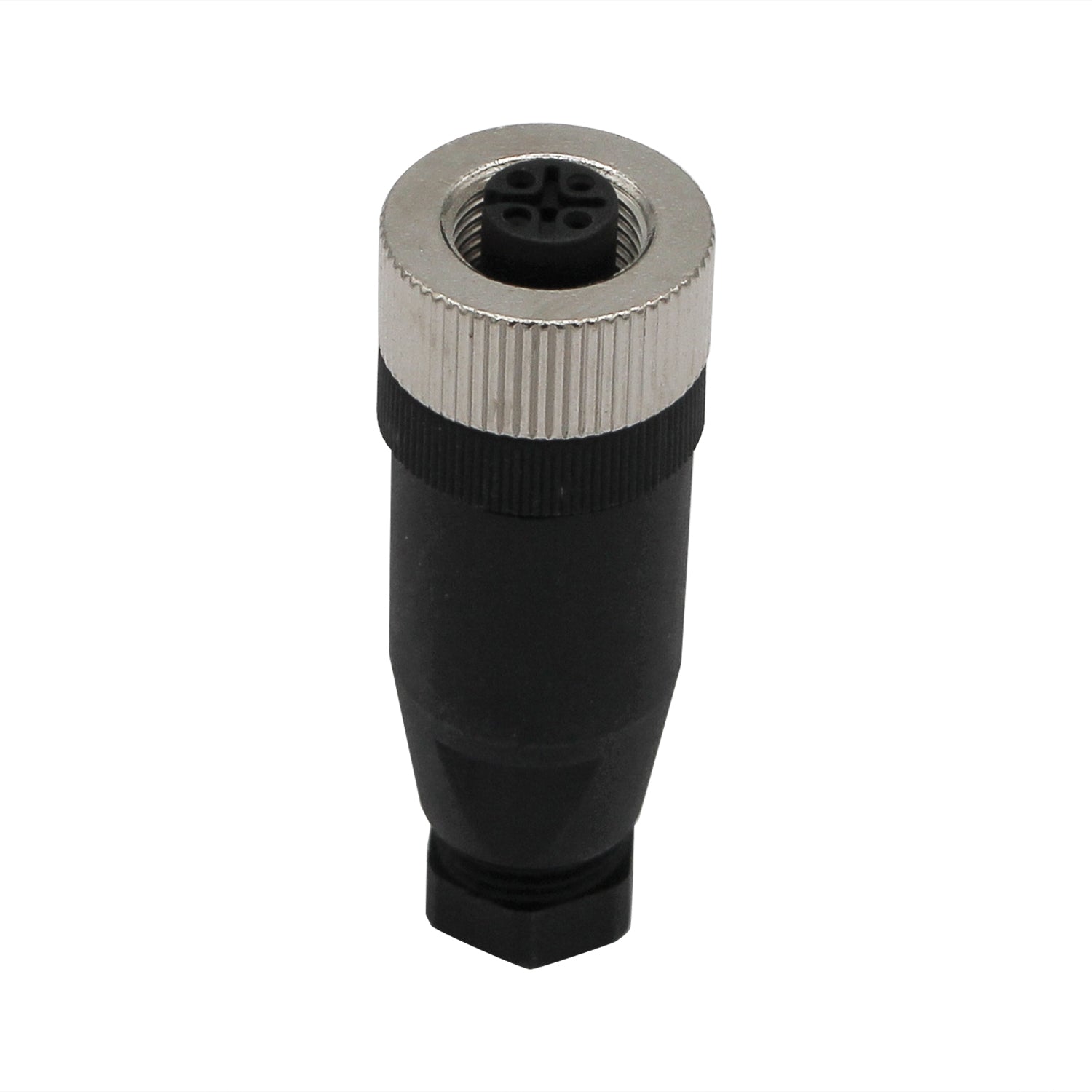

The Quick Disconnect M12 Cable End - Female has a "Hexagon" locking sleeve for hand-tightening connections. Accepts cables with OD ranging between 4 to 10mm. It has 4 connections.
When you add an element it must be wired by a qualified electrician, enclosed in a water-tight enclosure and protected with a GFCI circuit breaker! Improper wiring and/or control of a heater element can KILL YOU! If you have any doubt, please return it for a full refund.
Thread Type*: M12
*When purchasing threaded hardware, it's crucial to verify that you are selecting the appropriate threaded fittings to meet your requirements. Specifications:
Locking System: M12 A-Coding
Number of Contacts: 4
Gender: Female
Shell Material: Plastic
Mounting Style: Cable-mounted
Termination: Crimp Termination
Protection: IP 67
Shielding: non-shielded
Contact Plating: Gold
Rated Voltage (V): 250
Rated Current (A): 4
Cable Outlet (mm): 4-6
Form: Straight
Please Note: This is intended to be used ONLY with Heating Element Adapters below 3500W and 240V.
