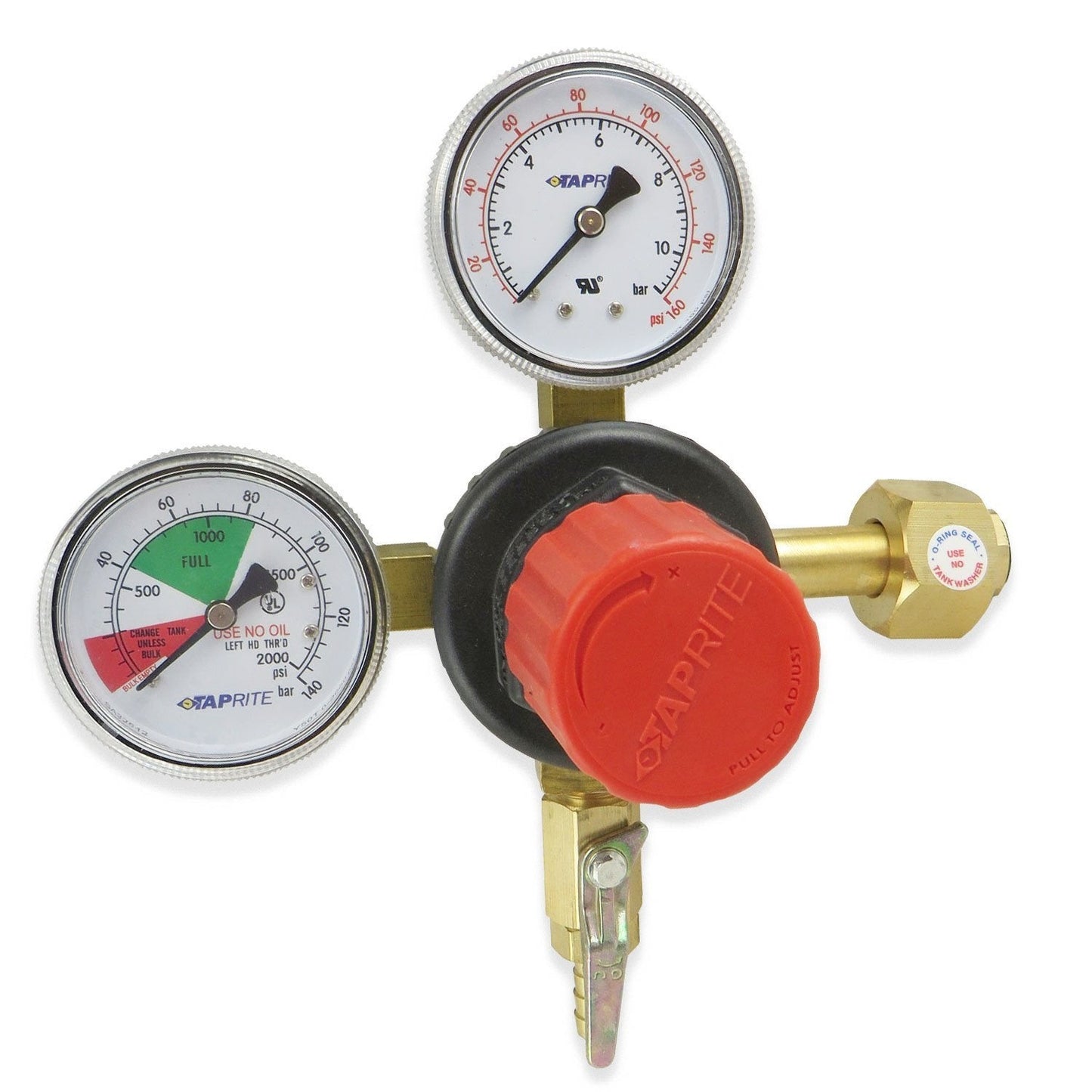

Taprite Dual Gauge Primary Beer & Soda CO2 Regulator (160 & 2000PSI) #T5741PMHPT

Premium Taprite Primary High Pressure Beer and Soda CO2 Regulator. NSF Approved -- Approved for use by all major breweries. Manufactured in the USA.

Solid brass body with extra long nipple. Regulator has "shut down" safety system (blow off at 126 to 130 PSI.) Set the screw adjustment and forget it to maintain a constant pressure to your dispensing system. Permanent Quad-Ring Seal on inlet nipple helps eliminate a source of leaks -- no need to use a new fiber washer each time a tank is changed. Heavy duty UL rated dual gauges. Left hand (LH) threaded ports with CGA 320 shank and nut.

The bonnet is made from Polycorbonate. The regulator is approved for CO2.

Features an 5/16" OD barbed shut-off valve with check. (Right hand thread)

OntarioBeerKegs is an official distributor of Taprite.

---

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 126-130 PSIG.
• Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle CO2.
• Polycorbonate Bonnet
• CGA320 Inlet (Left hand thread)
• Body parts are 1/4" NPT
• 5/16" OD barbed shut-off valve with check. (Right hand thread)
• Working Pressure Range 0-120 PSI
• Front loading seat assembly is easily replaceable in the field.
• 0-160 PSI low pressure gauge (Right Hand Thread)
• 0-2000 PSI high pressure gauge (Left Hand Thread)

Dimensions:

• 7 5/8" Wide
• 7 1/2" Tall

---

Taprite Documentation:

• SPECIFICATIONS
