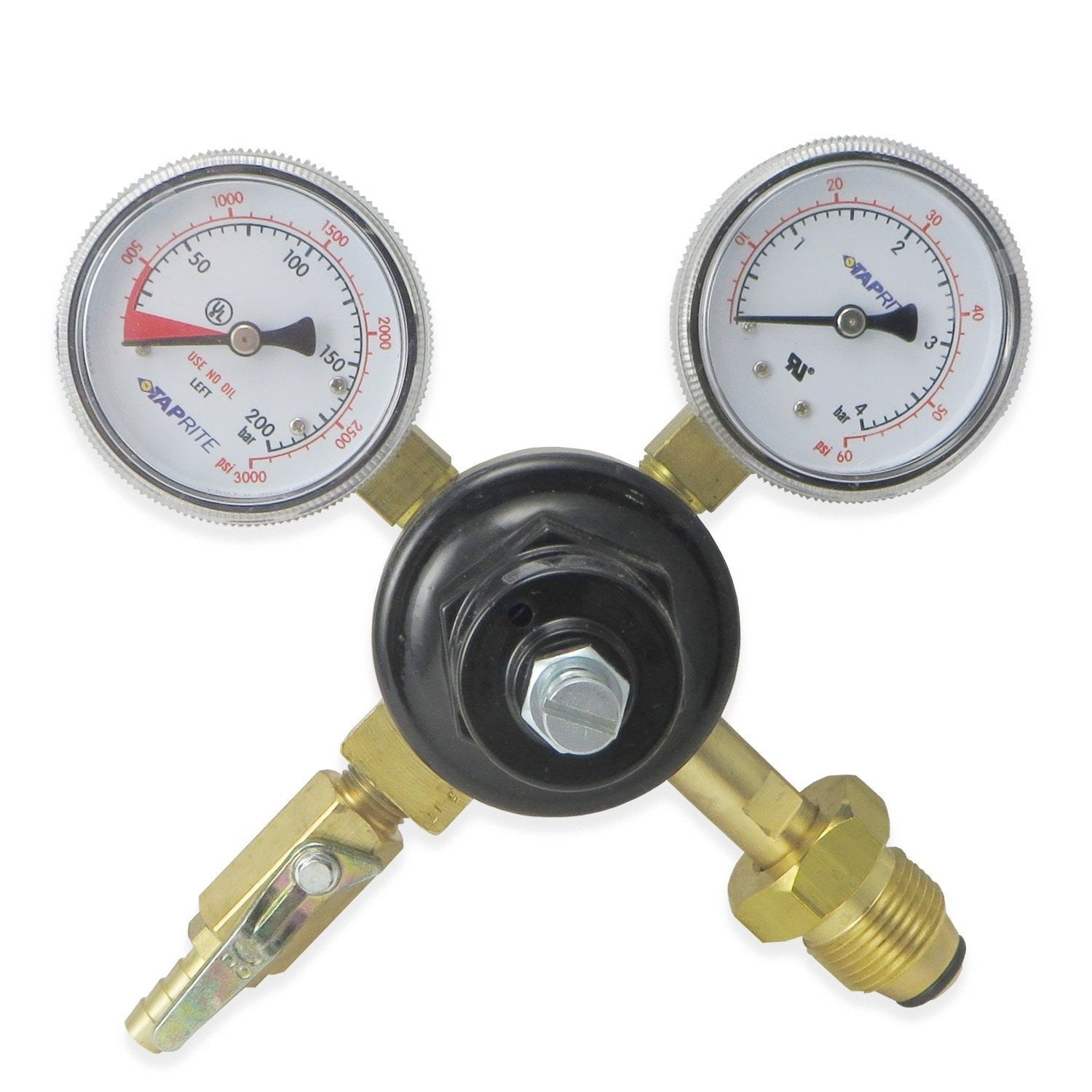

Taprite Primary Nitrogen Regulator (60 & 3000PSI) #742HPN

  • $131.99


Solid brass body and approves for use with multiple gases, this Taprite Primary Nitrogen Regulator is a mainstay in the beer kegging world, capable of carbonating and pushing beer like a champ.

Specifications:

  • To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-60 PSIG.
  • Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
  • Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Nitrogen, Argon and blended Beer gas.
  • Durable Zinc Bonnet will not strip or break like polycorbonate (plastic)
  • CGA580 Inlet (Left hand thread)
  • Body parts are 1/4" NPT
  • 5/16" Barbed Duckbill shut off valve outlet (Right hand thread)
  • Working Pressure Range 0-50 PSI
  • Front loading seat assembly is easily replaceable in the field.
  • 0-60 PSI low pressure gauge (Right Hand Thread)
  • 0-3000 PSI high pressure gauge (Left Hand Thread)


Dimensions:

  • 7 5/8" Wide
  • 7 1/2" Tall
