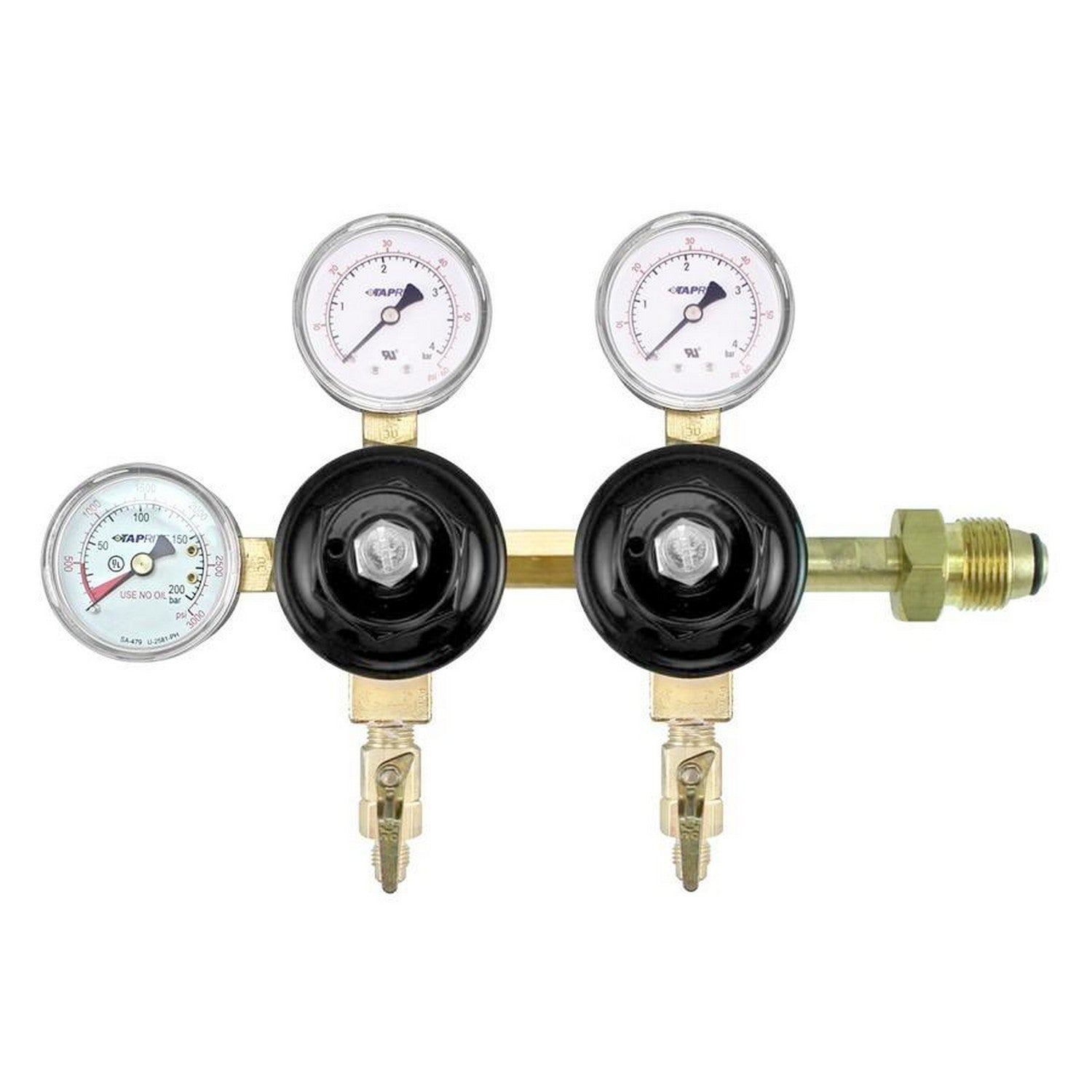

Taprite Primary Dual Nitrogen Regulator (60 & 3000 PSI) [752N-03]

Premium Taprite Primary Nitrogen Regulator. NSF Approved -- Approved for use by all major breweries. Manufactured in the USA.

Solid brass body with extra long nipple. Regulator has "shut down" safety system (blow off at 55 to 60 PSI.) Heavy duty UL rated dual gauges. Left hand (LH) threaded ports with CGA 580 inlet.

The bonnet is made from industrial zinc which can handle higher pressures. The regulator is approved for argon, nitrogen, beer gas, and beer gas blends.

Features dual 1/4" MFL threaded output connections (does NOT include a Stainless Steel Barbed Swivel Nut).

OntarioBeerKegs is an official distributor of Taprite.

---

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-60 PSIG.
• Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Nitrogen, and Argon, and blended Beer gas.
• Durable Zinc Bonnet will not strip or break like polycorbonate (plastic)
• CGA580 Inlet (Left hand thread)
• Body parts are 1/4" NPT
• 1/4" male flared outlets with check (Right hand thread)
• Working Pressure Range 0-50 PSI
• Front loading seat assembly is easily replaceable in the field
• 0-60 PSI low pressure gauges (Right Hand Thread)
• 0-3000 PSI high pressure gauge (Left Hand Thread)

Dimensions:

• 10 3/4" Wide
• 7 1/2" Tall

---

Taprite Documentation:

• SPECIFICATIONS
