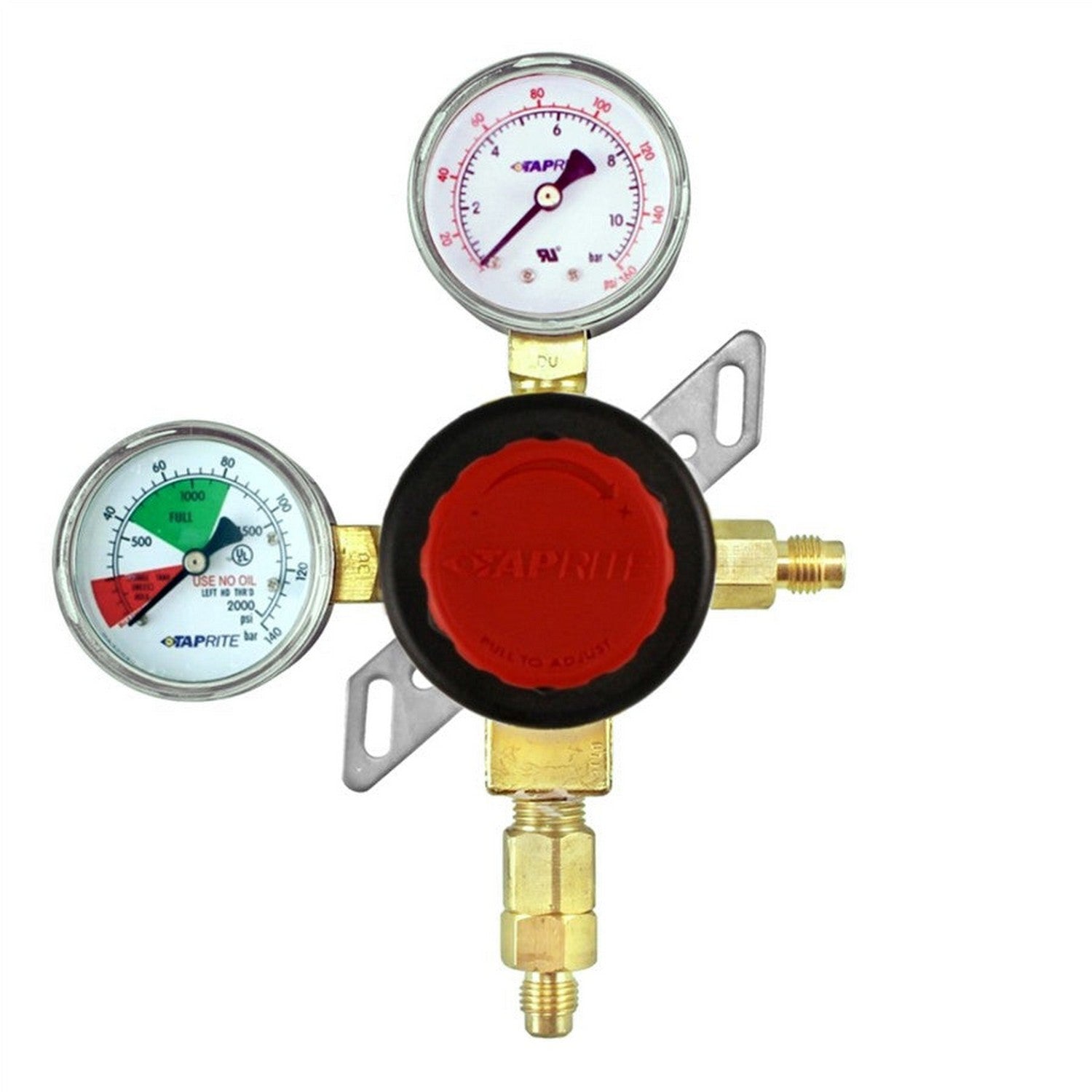

Taprite Primary High Pressure CO2 Regulator w/ HP Hose (160 & 2000 PSI) [T5741WMHP-6]

  • $144.99


This high-pressure CO2 regulator from Taprite has a 1/4" MFL inlet and outlet, and comes with a high-pressure hose to connect the MFL inlet to a CGA320 tank connection.

The gauges read 160 and 2000 PSI, and the working pressure is 0 to 120 PSI. The built-in pressure relief valve vents between 126 and 134 PSI.

The body is made of Brass, and the bonnet is made of Zinc to handle the high pressures.

Specifications:
  • To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 126-130 PSIG.
  • The internal relief valve opens if the delivery pressure exceeds the set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
  • Forged brass body for greater durability. The body has enough mass to serve as a heat sink to help prevent freeze up. Can handle CO2.
  • Polycorbonate Bonnet
  • 1/4" Flared Inlet (Left-Hand Thread)

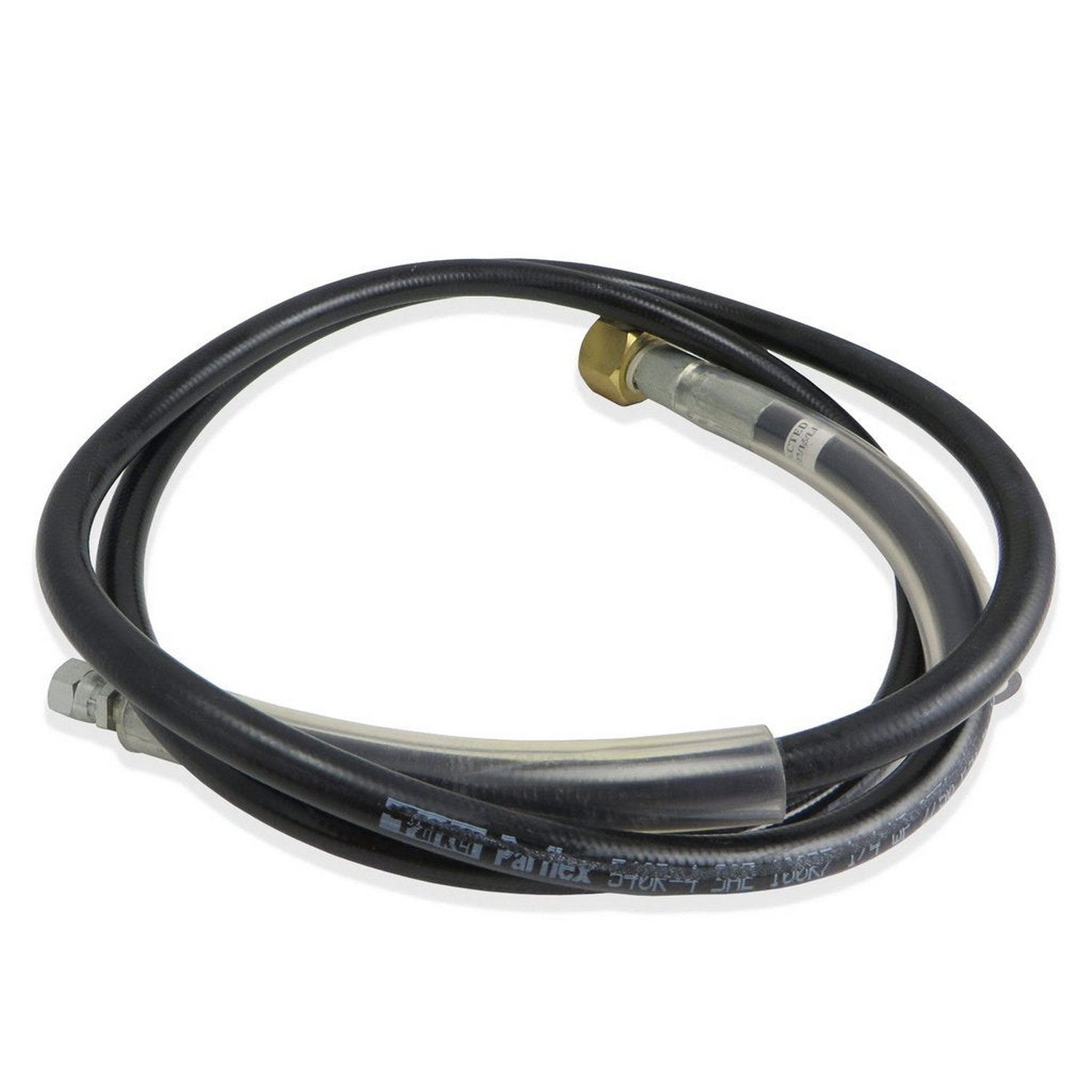

  • 6' HP Hose that attaches to CGA320 outlets
  • Body parts are 1/4" NPT
  • 1/4" male flared outlet (Right-Hand Thread)
  • Working Pressure Range 0-120 PSI
  • The front-loading seat assembly is easily replaceable in the field
  • Mounting bracket on each unit
  • 0-160 PSI low-pressure gauges (Right-Hand Thread)
  • 0-2000 PSI high-pressure gauge (Left-Hand Thread)
