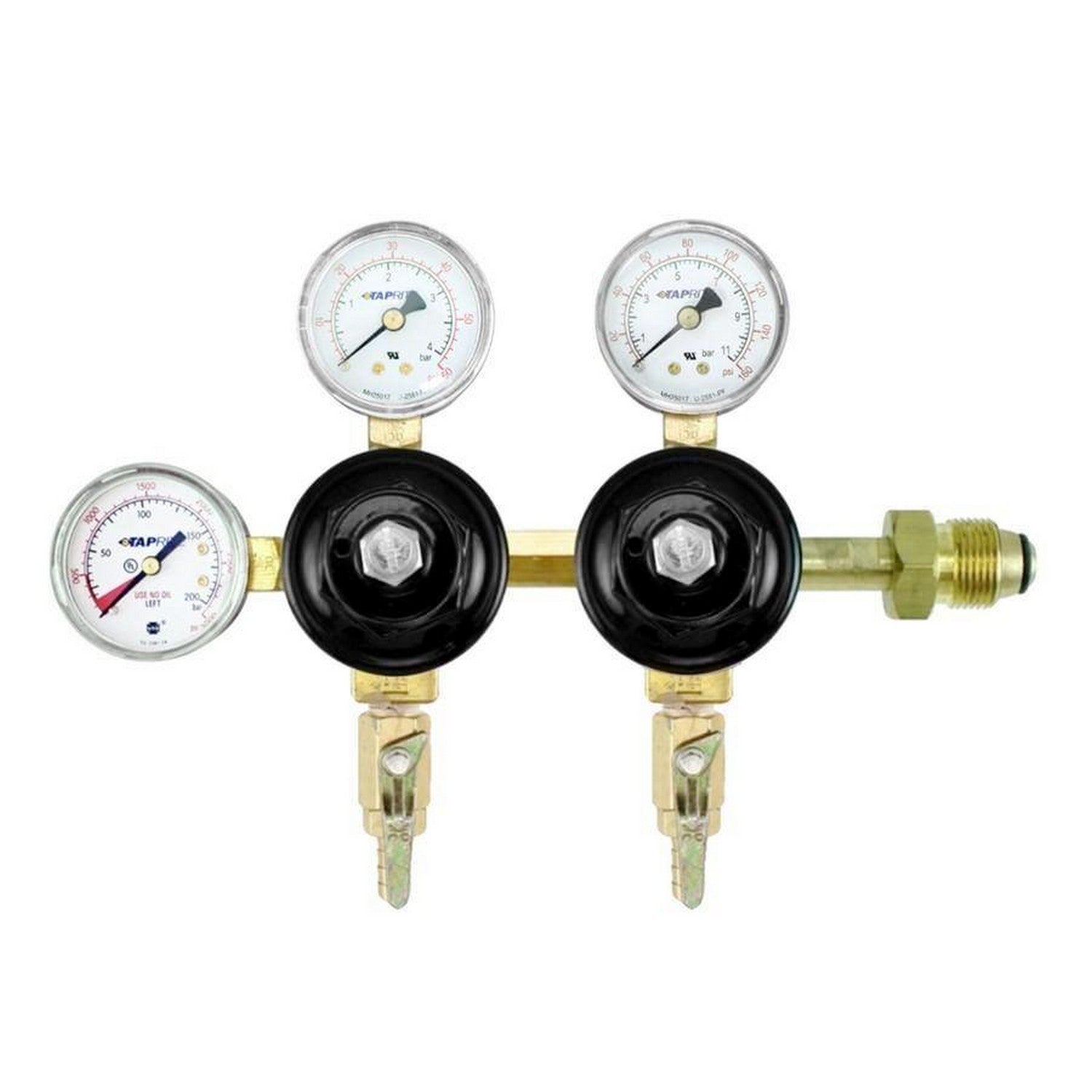

Taprite Primary Dual High Pressure Nitrogen Regulator (60, 160, & 3000 PSI) [5752HPN-03]

Taprite Primary Dual High Pressure Nitrogen Regulator (60, 160, & 3000 PSI) [5752HPN-03]

  • $184.99


This is a high-pressure nitrogen regulator for up to two kegs.

It has a CGA580 inlet and two 5/16" barbed outlet valves with checks to prevent backflow.

The gauges read 60, 160, and 3000 PSI, and it has a built-in pressure relief valve set to 126 to 134 PSI.

The bodies are forged Brass, while the bonnets are Zinc to handle the high pressures.

Specifications:
  • To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 125-130 PSIG.
  • The internal relief valve opens if the delivery pressure exceeds the set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
  • Forged brass body for greater durability. The body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Nitrogen, and Argon, and blended Beer gas.
  • Durable Zinc Bonnet will not strip or break like polycorbonate (plastic)
  • CGA580 Inlet (Left-Hand Thread)
  • Body parts are 1/4" NPT
  • 5/16" barbed valves with a check (Right-Hand Thread)
  • Working Pressure Range 0-120 PSI
  • The front-loading seat assembly is easily replaceable in the field
  • 0-60 PSI low-pressure gauge (Right-Hand Thread)
  • 0-160 PSI high-pressure gauge (Right-Hand Thread)
  • 0-3000 PSI high-pressure gauge (Left-Hand Thread)
