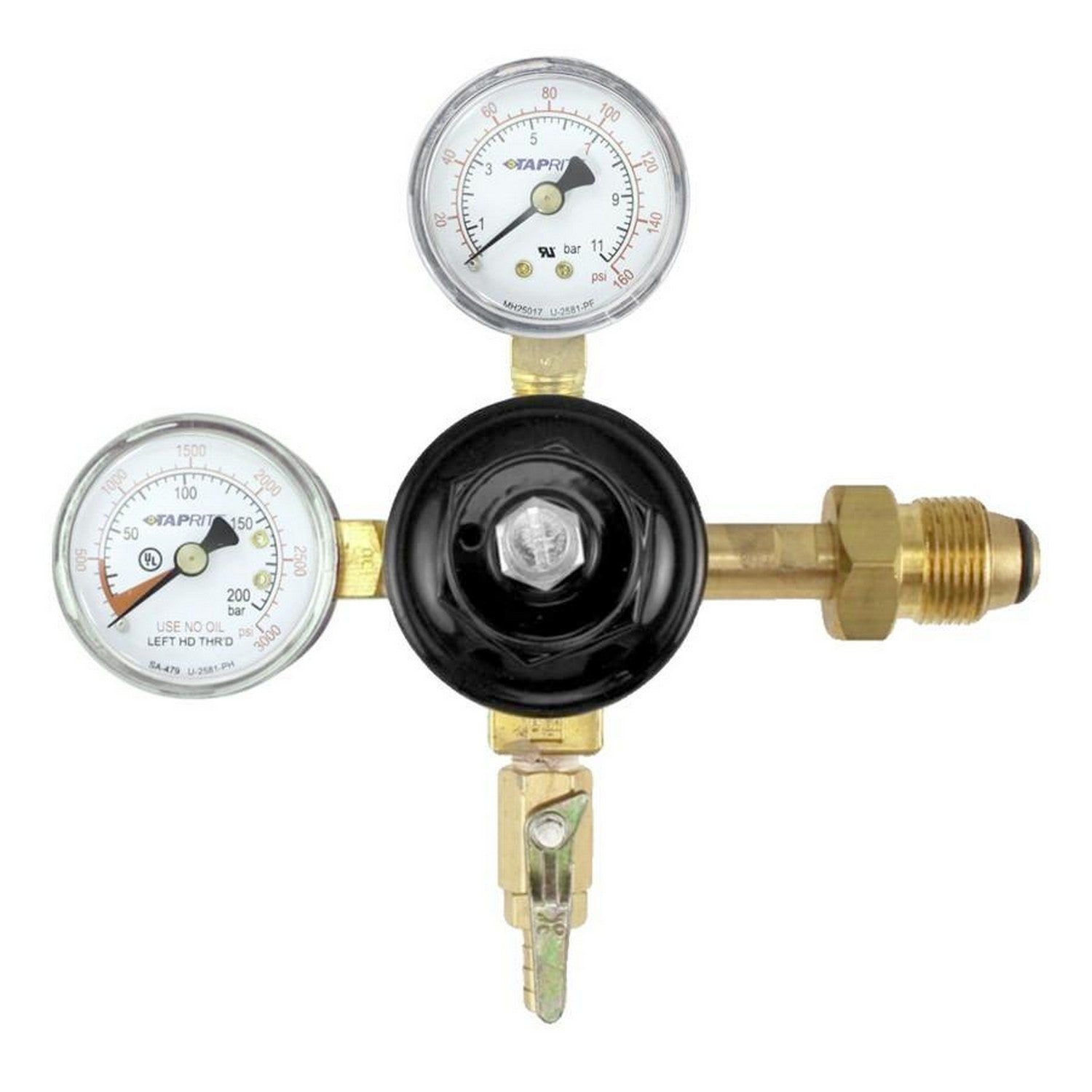

Taprite Primary High Pressure Nitrogen Regulator (160 & 3000 PSI) [5741PMHPNT]

Discover an exceptional nitrogen regulator crafted by Taprite, delivering impressive performance under high pressure.

Equipped with a CGA580 inlet, this regulator boasts a well-fitted outlet featuring a convenient shut-off valve complemented by a check and a 5/16" barb.

Monitor your nitrogen levels effortlessly with the precision gauges displaying readings of 160 PSI and a robust 3000 PSI. Rest assured, a built-in safety relief valve has been thoughtfully included, set at an optimum range of 126 to 134 PSI. Expect remarkable versatility as this regulator functions effectively within a working pressure range spanning from 0 to 120 PSI.

Crafted with a resilient brass body and a durable zinc bonnet, this nitrogen regulator exudes reliability and durability.

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 126-130 PSIG.
• Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Nitrogen, Argon and blended Beer gas.
• Durable Zinc Bonnet will not strip or break like polycorbonate (plastic)
• CGA580 Inlet (Left hand thread)
• Body parts are 1/4" NPT
• 5/16" OD barbed shut-off valve with check (Right hand thread)
• Working Pressure Range 0-120 PSI
• Front loading seat assembly is easily replaceable in the field.
• 0-160 PSI low pressure gauge (Right Hand Thread)
• 0-3000 PSI high pressure gauge (Left Hand Thread)

Dimensions:

• 7 5/8" Wide
• 7 1/2" Tall
