Taprite Primary High Pressure CO2 Regulator (160 & 2000 PSI) [3741]

Taprite Primary High Pressure CO2 Regulator (160 & 2000 PSI) [3741]

  • $84.99

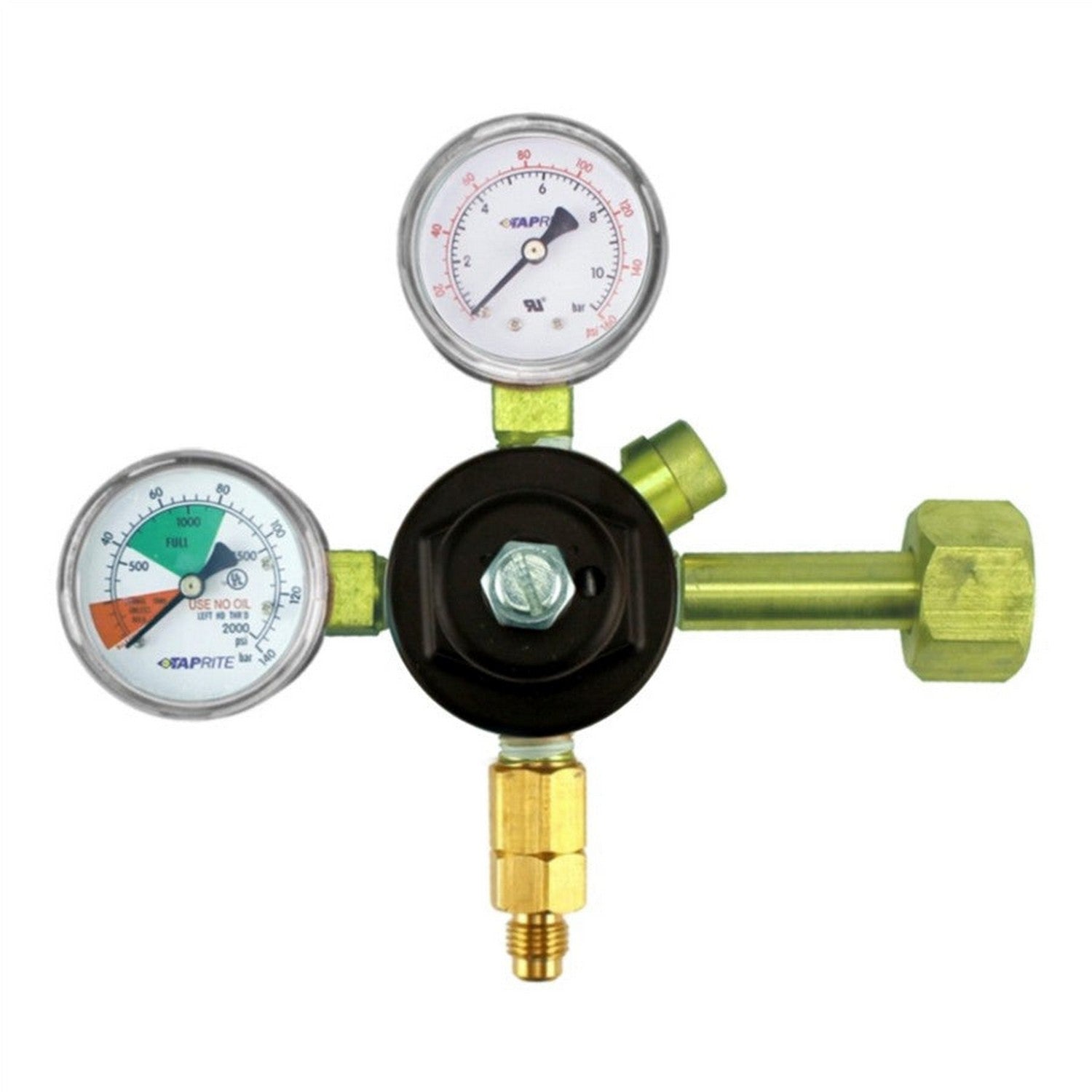

This is a high-pressure CO2 regulator from Taprite, and has a CGA320 inlet and 1/4" MFL outlet.

The gauges read 160 PSI and 2000 PSI, and the working pressure ranges from 0 to 120 PSI. There is a built-in safety pressure relief valve set to vent between 126 and 134 PSI.

The forged Brass body is very durable and it has a polycarbonate bonnet.

  • Body parts are 1/4" NPT
  • CGA320 Inlet (Left-Hand Thread)
  • Working Pressure Range 0-120 PSI
  • 1/4" male flared outlet (Right-Hand Thread)
  • 0-2000 PSI high-pressure gauge (Left-Hand Thread)
  • 0-160 PSI high-pressure gauge (Right-Hand Thread)
  • The front-loading seat assembly is easily replaceable in the field.
  • Durable Zinc Bonnet will not strip or break like polycorbonate (plastic)
  • Forged brass body for greater durability. The body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Co2.
  • To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 126-130 PSIG.
  • The internal relief valve opens if the delivery pressure exceeds the set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
