Ss Brewtech BME Pressurized Transfer Kit

This Pressurized Transfer Kit features 304 Stainless Steel hardware and food grade silicone tubing. It is intended for use with the Brewmaster Editions of the Ss Brewtech chronicals. Installing this kit will allow you to easily perform a pressurized transfer.

This kit does not include hardware for the output side of the keg. For the keg side please add a TC connection using appropriate tubing for whatever type of transfer you plan on doing.

To use attach the included 1/2" tubing to one side of the 3" TC lid cap's blow off barb. With the other end of the tubing attach it to the 1.5" TC x 1/2" OD Hose Barb fitting and tighten using the included hose clamps. Afterwards attach the 1.5" TC x 1/4" MFL Fitting to the .5" TC x 1/2" OD Hose Barb using the included clamp and gasket. With this you will have a 1/4" MFL connection that can be used with common gas flare fittings.

This kit only includes accessories to introduce pressure into your fermenter. It dos not include accessories for beer output.

---

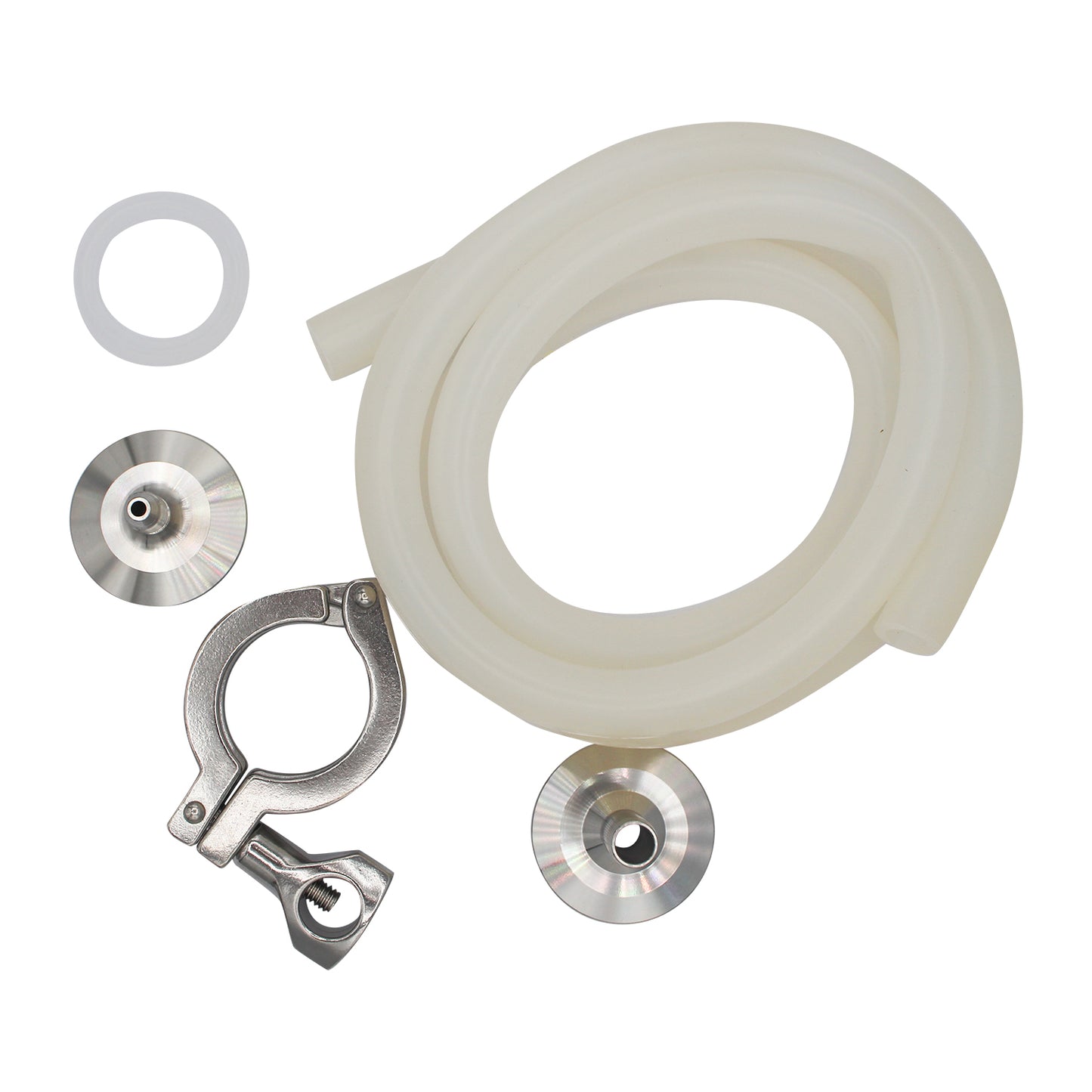

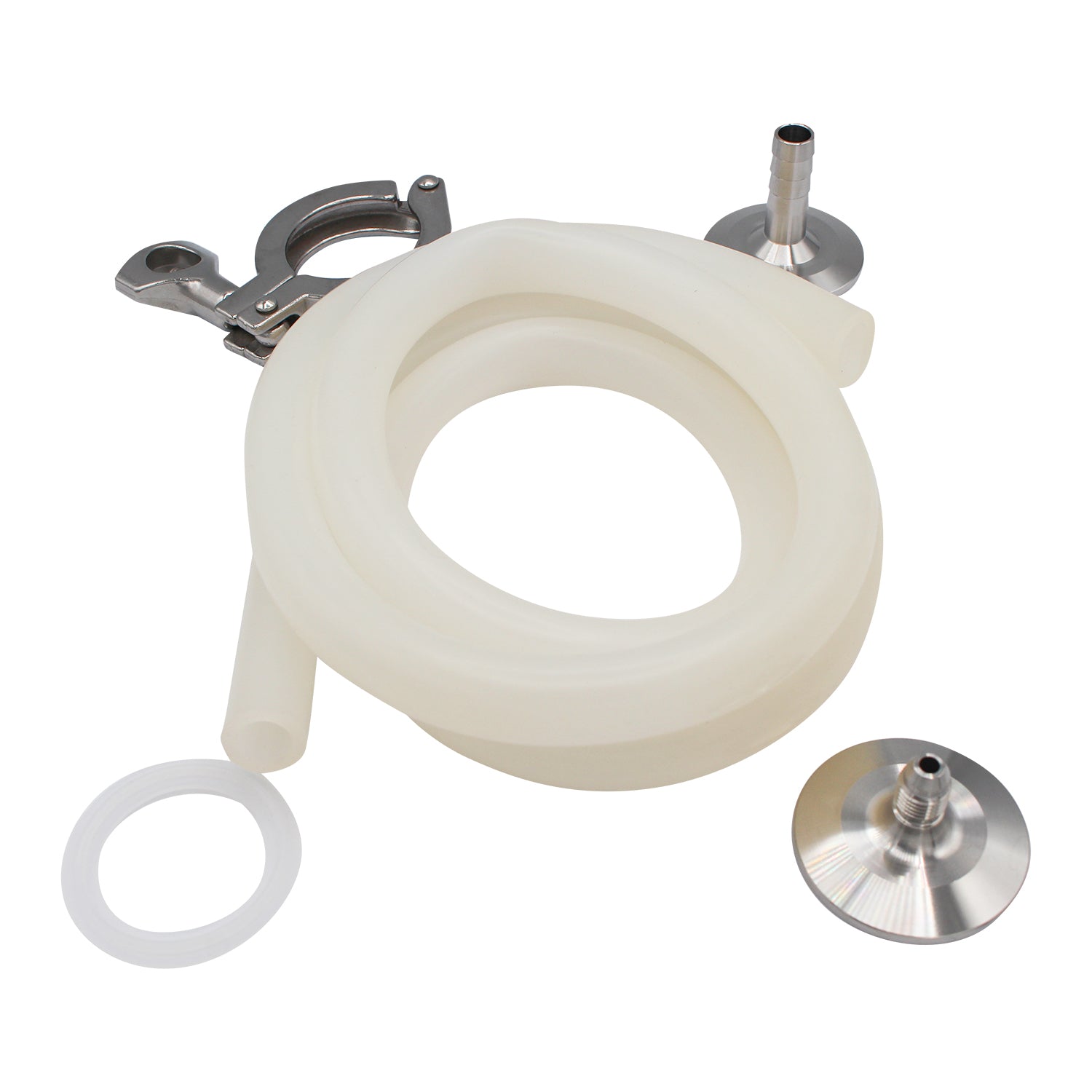

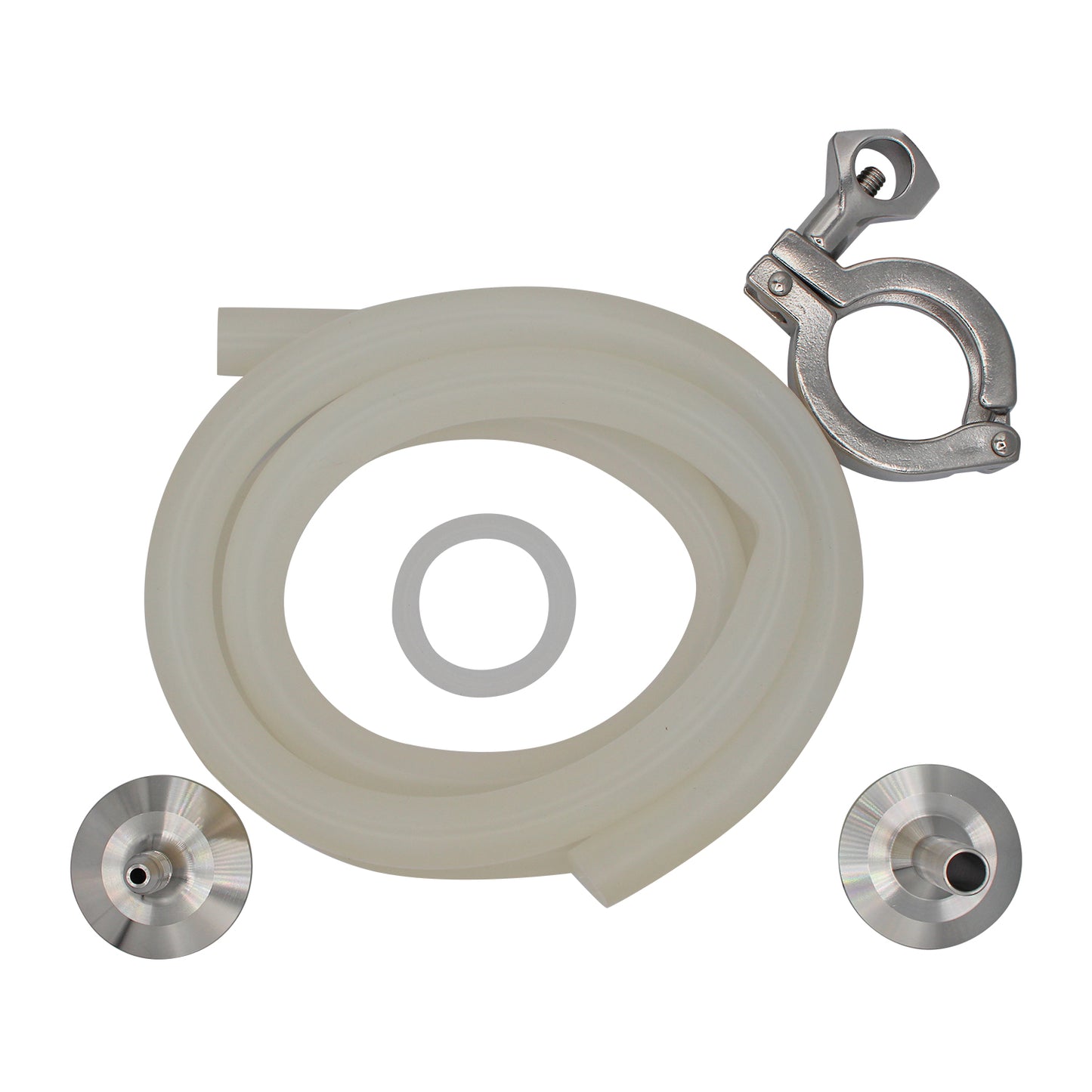

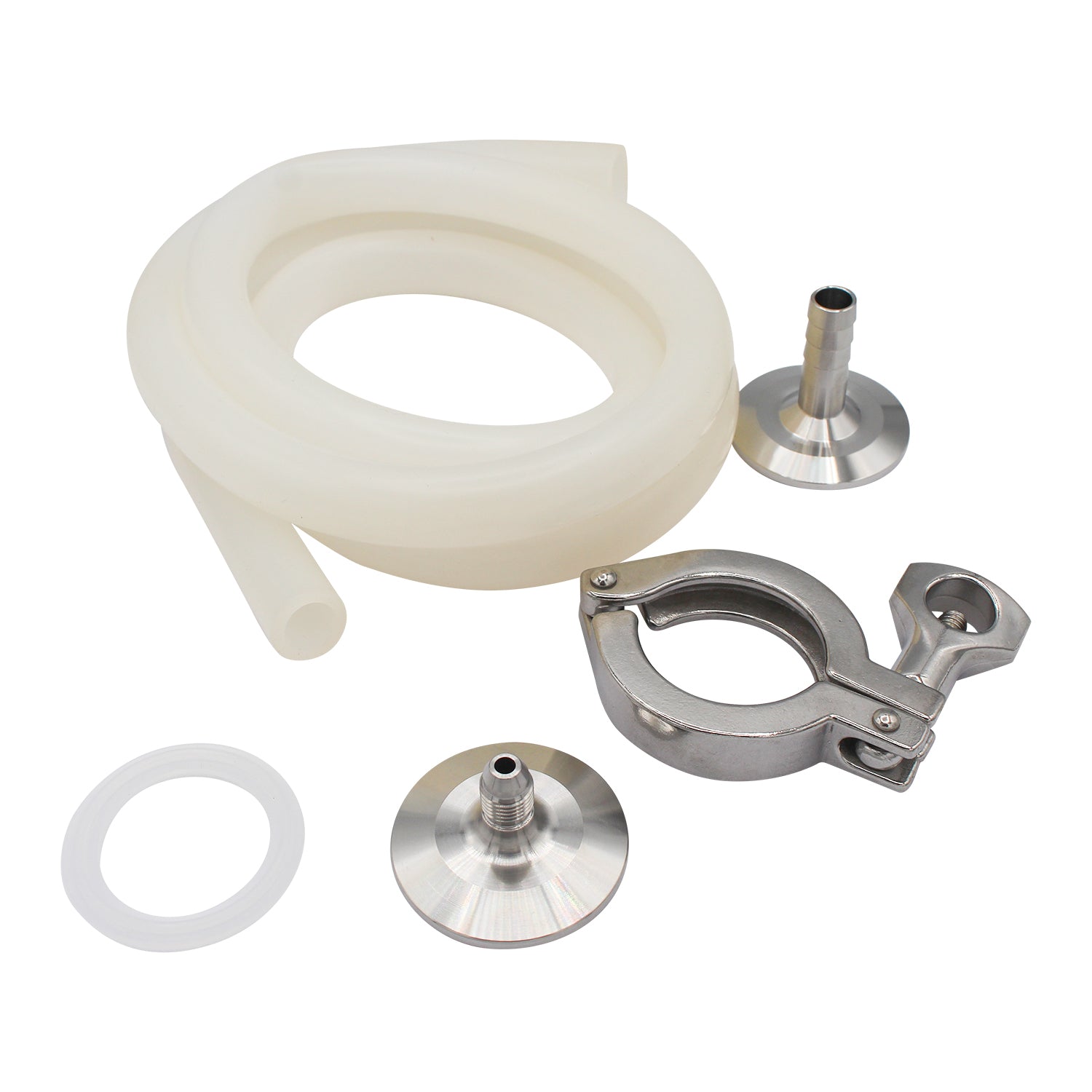

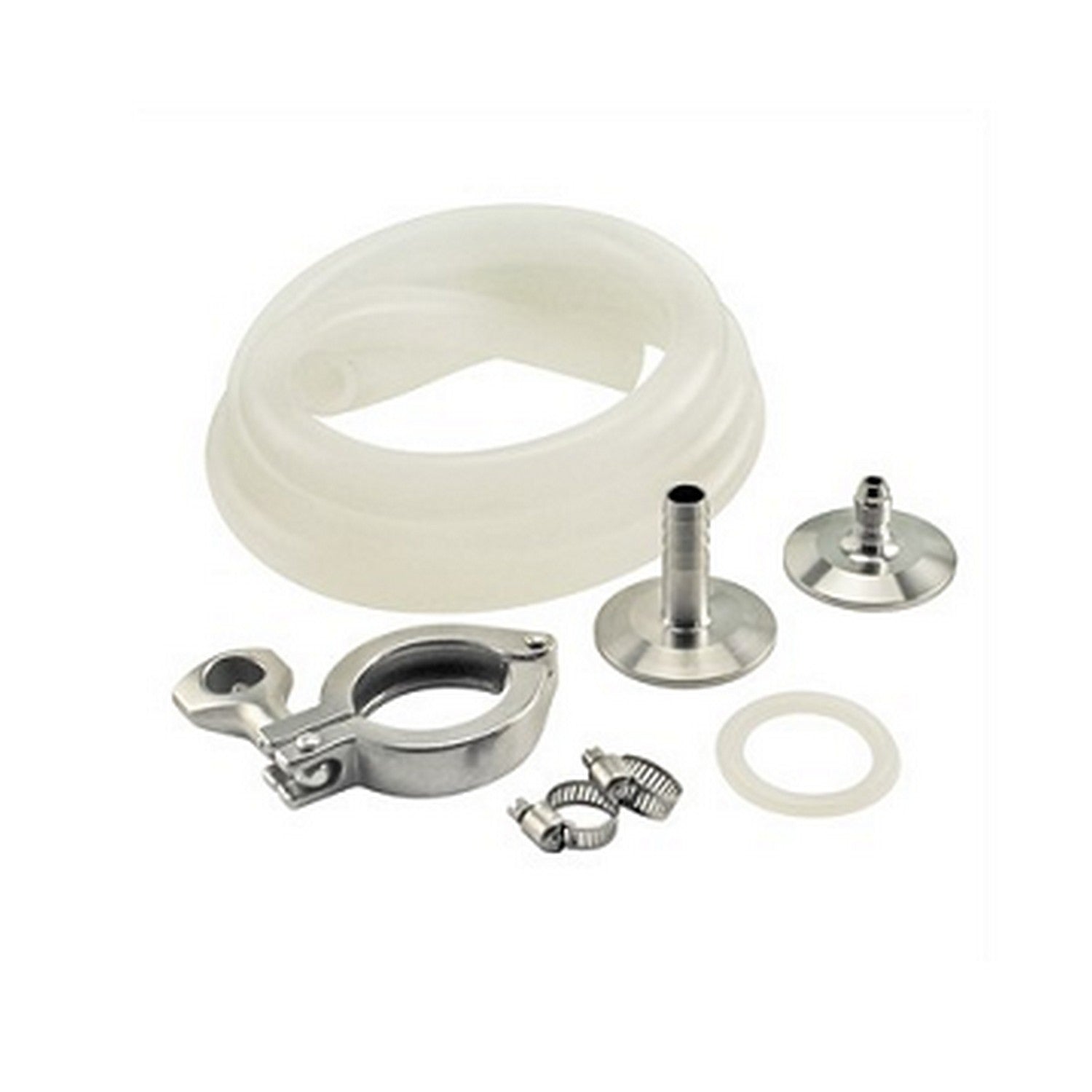

Includes:

• 1.5" TC x 1/4" MFL Fitting x 1
• 1.5" TC x 1/2" OD Hose Barb x 1
• 1.5" TC Clamp x 1
• 1.5" TC Gasket x 1
• 1/2" MNPT x 1/2" Hose Barb x 1
• 5' Length of 1/2" Silicone Tubing
• Hose Clamps x 2

When buying TC hardware it is important to ensure that you are ordering the correct TC fittings. Unsure about TC sizing? Please consult the sizing chart.
