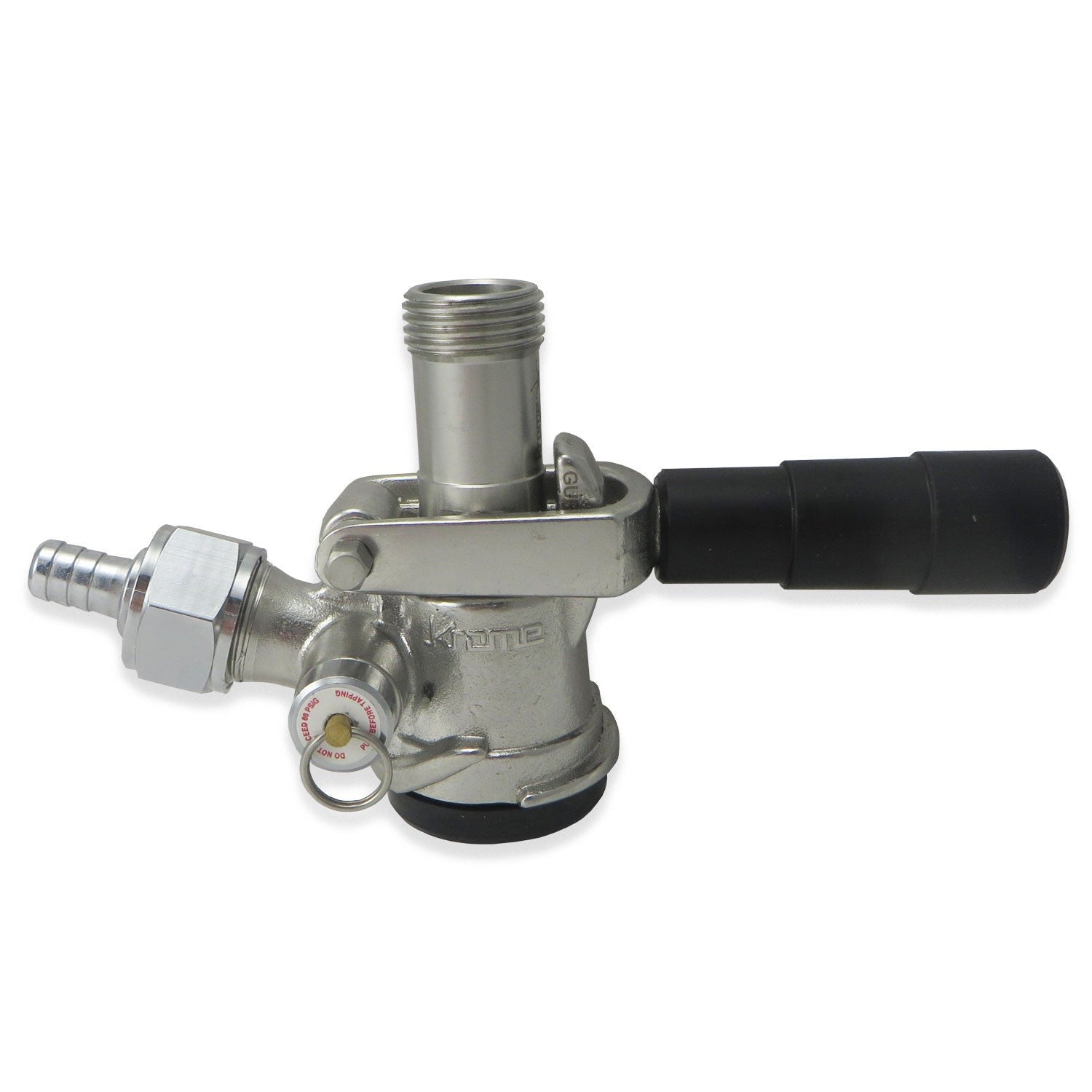

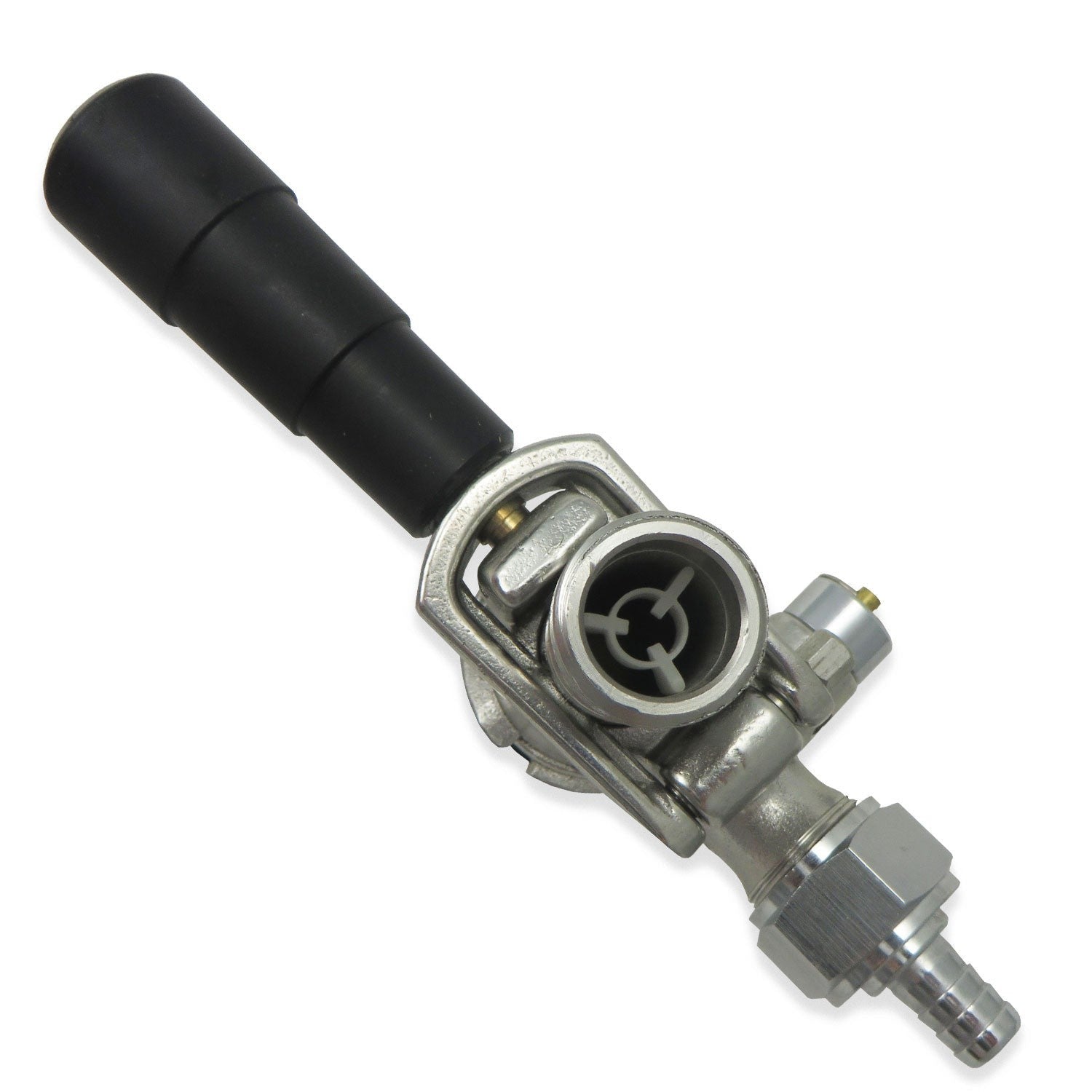

Sanke 'D' Coupler with Black Handle #C703

Stainless Steel "D" Style Sanke Coupler with a body and probe made out of durable 304 stainless steel. The tailpiece is chrome plated forged brass and the coupler is NSF approved. It features a high-capacity 55-PSI pressure relief valve that is build directly into the coupler body. When functioning with other relief devices in the system, it will prevent a keg from reaching pressures in excess of recommended working pressure. It also allows the user to relieve pressure when needing to prevent or correct dispensing problems. The pull lever handle is black and controls the flow of gas; up position is off, down position is on.

To install rotate clockwise on the keg valve until secure. Pull the lever handle and push down; this opens the keg valve and pressure inlet on the coupler. You are now ready to dispense. This coupler can be quickly dismantled for cleaning and periodic service. No special tools required.

The gas port is 3/8" OD in diameter and will fit hose with an ID of 3/8" or 5/16".

Sanke "D" style couplers are the standard connection type for most North American beer brands.

Please Note: A Tail Piece Assembly is recommended as these parts are needed to properly hook up a Sanke Coupler to tubing.

---

Specifications:

• Material: 304 Stainless Steel
• Finish: Polished Stainless Steel
• Tailpiece Material: Forged Brass
• Probe Material: 304 Stainless Steel
• Type: "D" Style
• Handle Type: Short Handle
• Handle Colour: Black
• Tail Piece: 3/8" OD Barb
• Beer Port Size: 7/8"-14 (5/8" BSP) (U.S. Beer Industry Standard)

Find Your Brand:
(Always confirm with the store when purchasing the keg if it will be compatible.)

Sanke Coupler Chart
