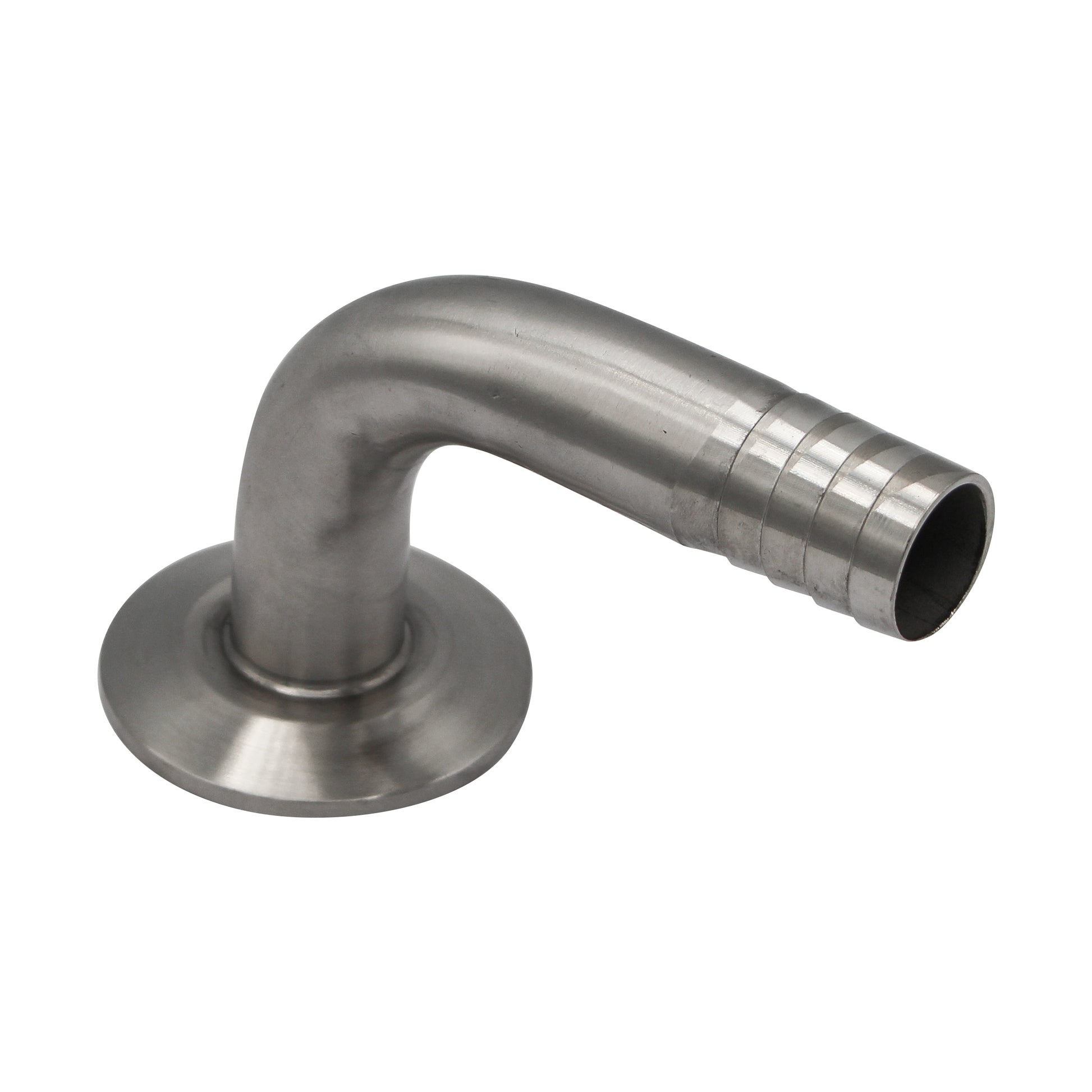

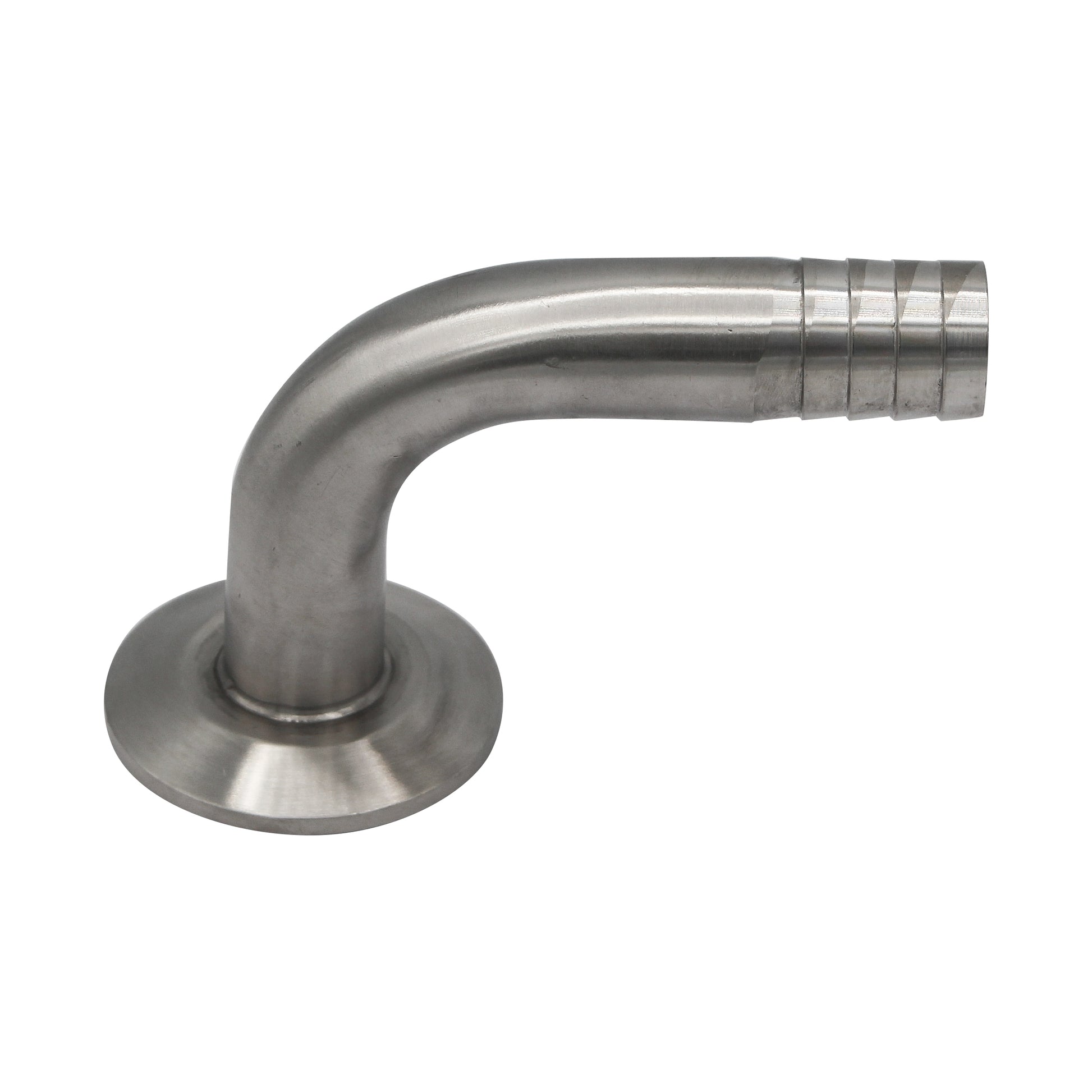

This 90 Degree Elbow 3/4" Hose Barb to 1.5" TC Cap is made of strong 304 stainless steel. It's designed with a 90 elbow that allows for installation in tighter more congested spaces. The barb has an 3/4" OD that allows you to attach 3/4" ID tubing to your 1.5" TC connections. In order to use this part with a 1.5" TC flange you will need a 1.5" TC gasket and a TC Clamp.
Specifications:
Made out of 304 Stainless Steel
90° Elbow
Designed for use with 3/4" ID tubing
Barbed portion protrudes out 3" from center of TC Cap
For use with 1" & 1.5" TC fittings
When buying TC hardware it is important to ensure that you are ordering the correct TC fittings. Unsure about TC sizing? Please consult the sizing chart.
