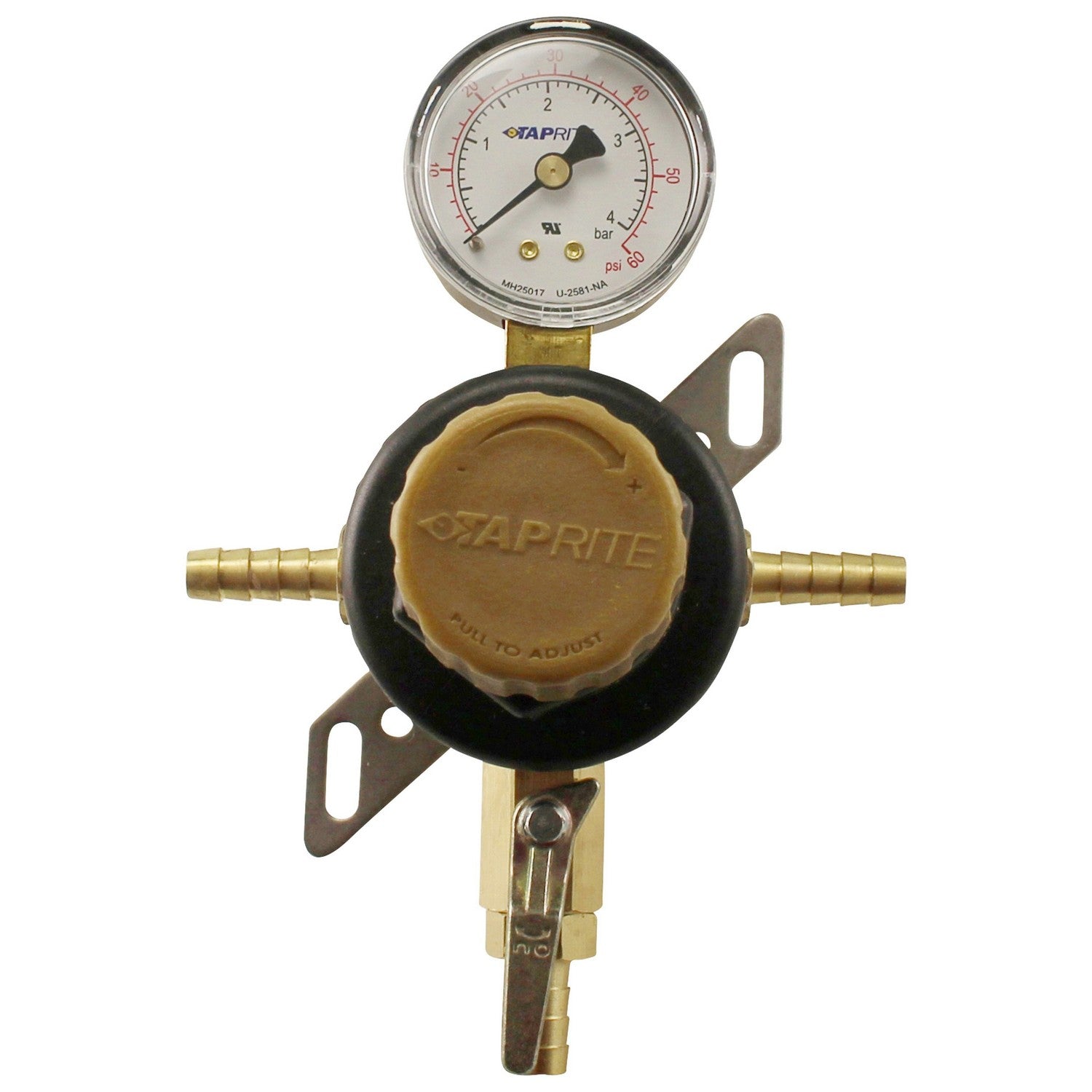

Taprite Single Product Secondary Pass Through CO2 Regulator (60 psi) - 5/16" Barbs - #T1661STC-01

Premium Taprite 1-Way Secondary Pass-Thru CO2 Regulator. NSF Approved -- Approved for use by all major breweries. Manufactured in the USA.

Solid brass body with 5/16" OD nipple. Regulator has "shut down" safety system (blow off at 55 to 60 PSI.) Heavy duty UL rated dual gauges. Right hand (RH) threaded ports. The bonnet is made from Polycorbonate. The regulator is approved for CO2.

Pass-Thru regulators have 5/16" OD barbs on each side allowing you to attach tubing.

Secondary regulators are used when you are attempting to dispense two or more kegs off of the same CO2 tank.

A secondary regulator will allow you to regulate the pressure of each keg individually.

Features 5/16" OD barbed shut-off valve.

OntarioBeerKegs is an official distributor of Taprite.

---

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-60 PSIG.
• Taprite secondary regulators are designed to further reduce pressure from a primary regulator to a proper dispensing level.
• Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Co2
• Pass-Thru design allows full pass-thru through the body
• Polycorbonate Bonnet
• 5/16" OD barbed inlet (Right hand thread)
• Body parts are 1/4" NPT (Right hand thread)
• 5/16" OD barbed shut-off valve outlet (Right hand thread)
• Working Pressure Range 0-50 PSI
• Front loading seat assembly is easily replaceable in the field
• Comes with wall mounting brackets
• 0-60 PSI low pressure gauge (Right Hand Thread)
