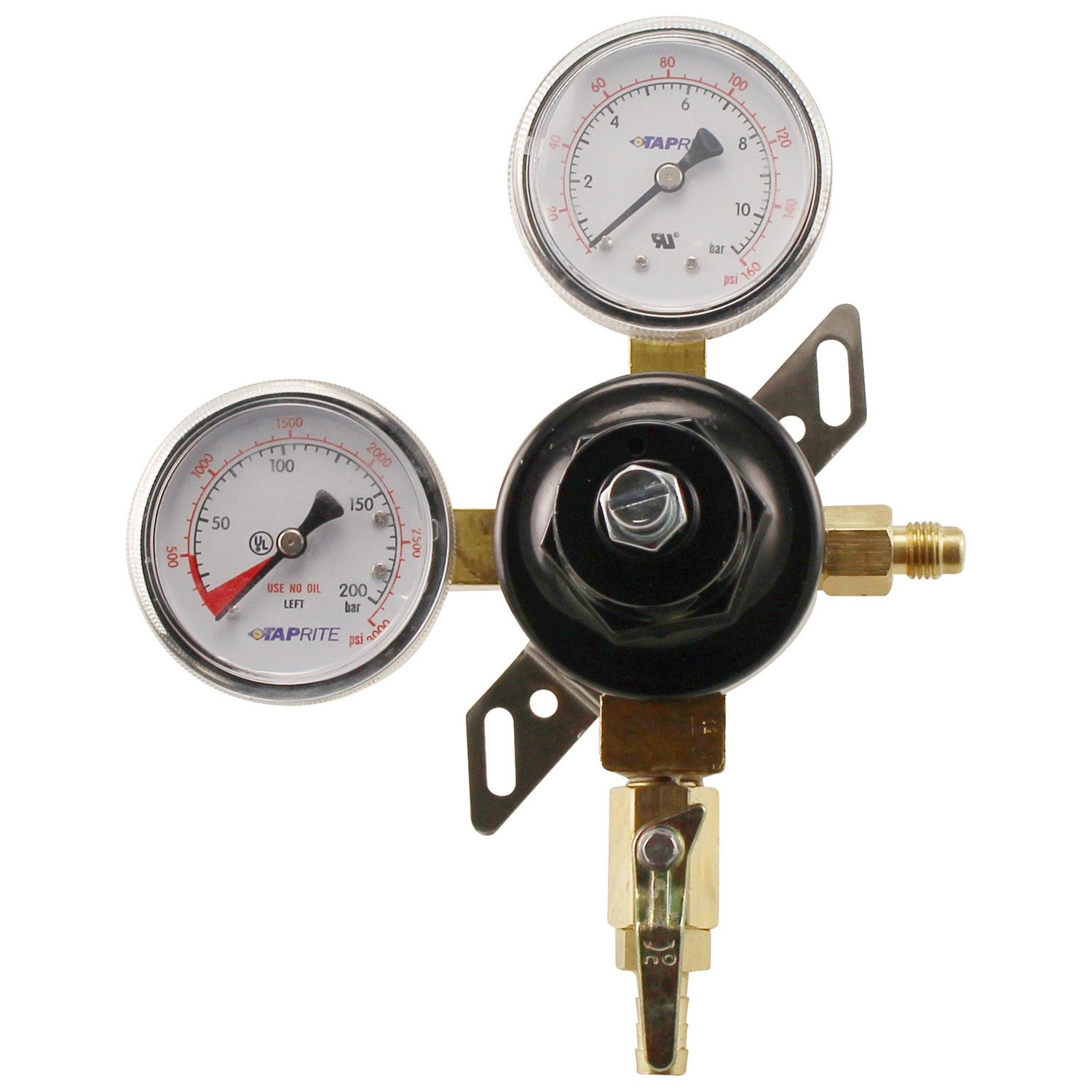

Taprite Primary Nitrogen Regulator (160 & 3000 psi) #5741WMHPNT-6

Premium Taprite Primary Nitrogen Regulator with HP Hose. NSF Approved -- Approved for use by all major breweries. Manufactured in the USA.

Solid brass body with extra long nipple. Regulator has "shut down" safety system (blow off at 126 to 130 PSI.) Heavy duty UL rated dual gauges. Left hand (LH) threaded ports with 1/4" Flared Inlet.

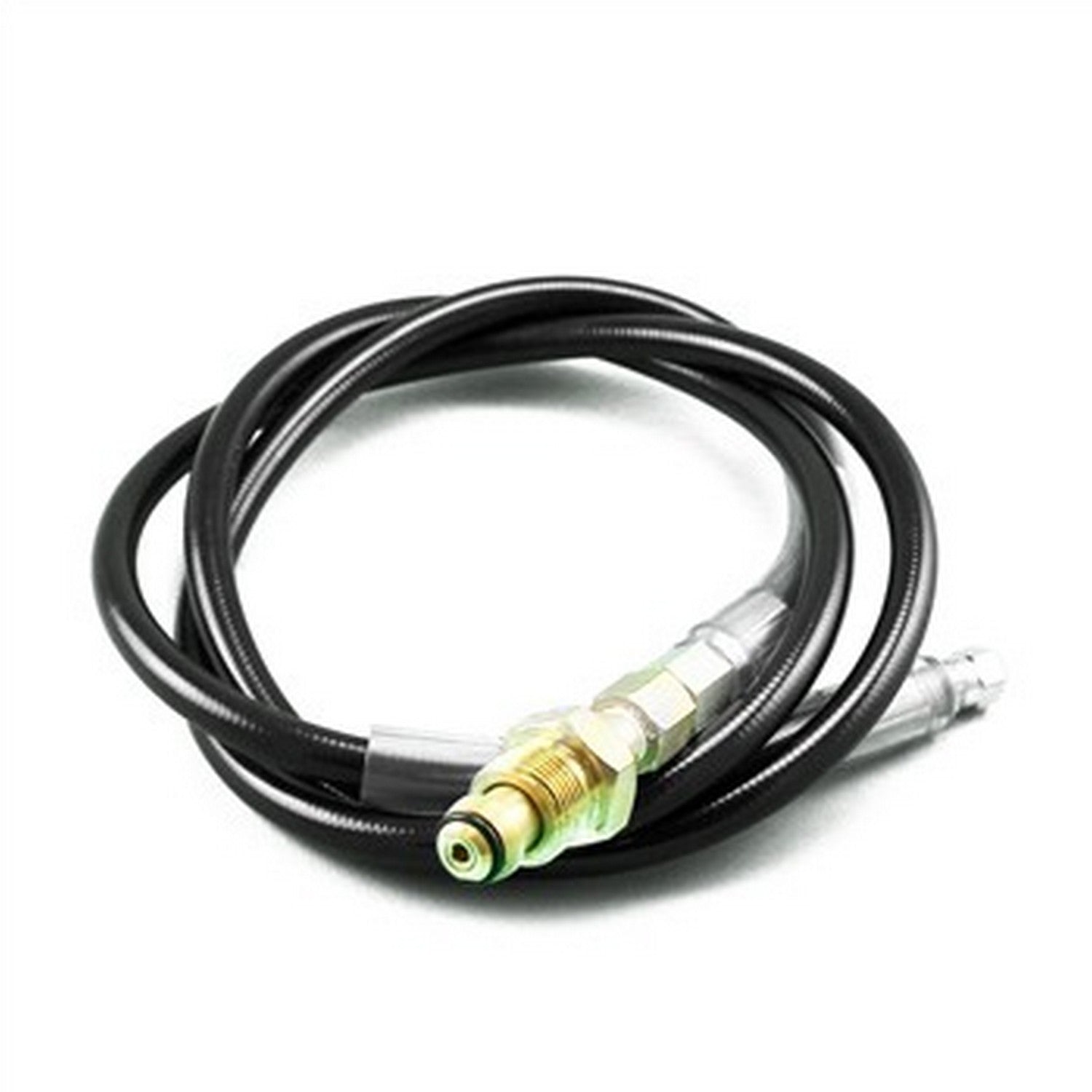

The inlet is a 1/4" MFL fitting, and comes with a six foot high pressure hose assembly which connects the MFL to the Nitrogen tanks CGA580 fitting. On the outlet side it has a 1/4" MFL connection allowing the attachment of 1/4" flared hardware.

The bonnet is made from industrial zinc which can handle higher pressures. The regulator is approved for argon, nitrogen, beer gas, and beer gas blends.

Features an 5/16" OD barb shut off valve with check (Right hand thread).

OntarioBeerKegs is an official distributor of Taprite.

---

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 126-130 PSIG.
• Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Nitrogen, Argon and blended Beer gas.
• Durable Zinc Bonnet will not strip or break like polycorbonate (plastic)
• 1/4" Flared Inlet (Left hand thread)
• 6' HP Hose that attaches to CGA580 outlets
• Body parts are 1/4" NPT
• 5/16" OD barb shut off valve with check (Right hand thread)
• Working Pressure Range 0-120 PSI
• Front loading seat assembly is easily replaceable in the field
• Mounting bracket on each unit
• 0-160 PSI low pressure gauges (Right Hand Thread)
• 0-3000 PSI high pressure gauge (Left Hand Thread)

Dimensions:

• 7 5/8" Wide
• 7 1/2" Tall
