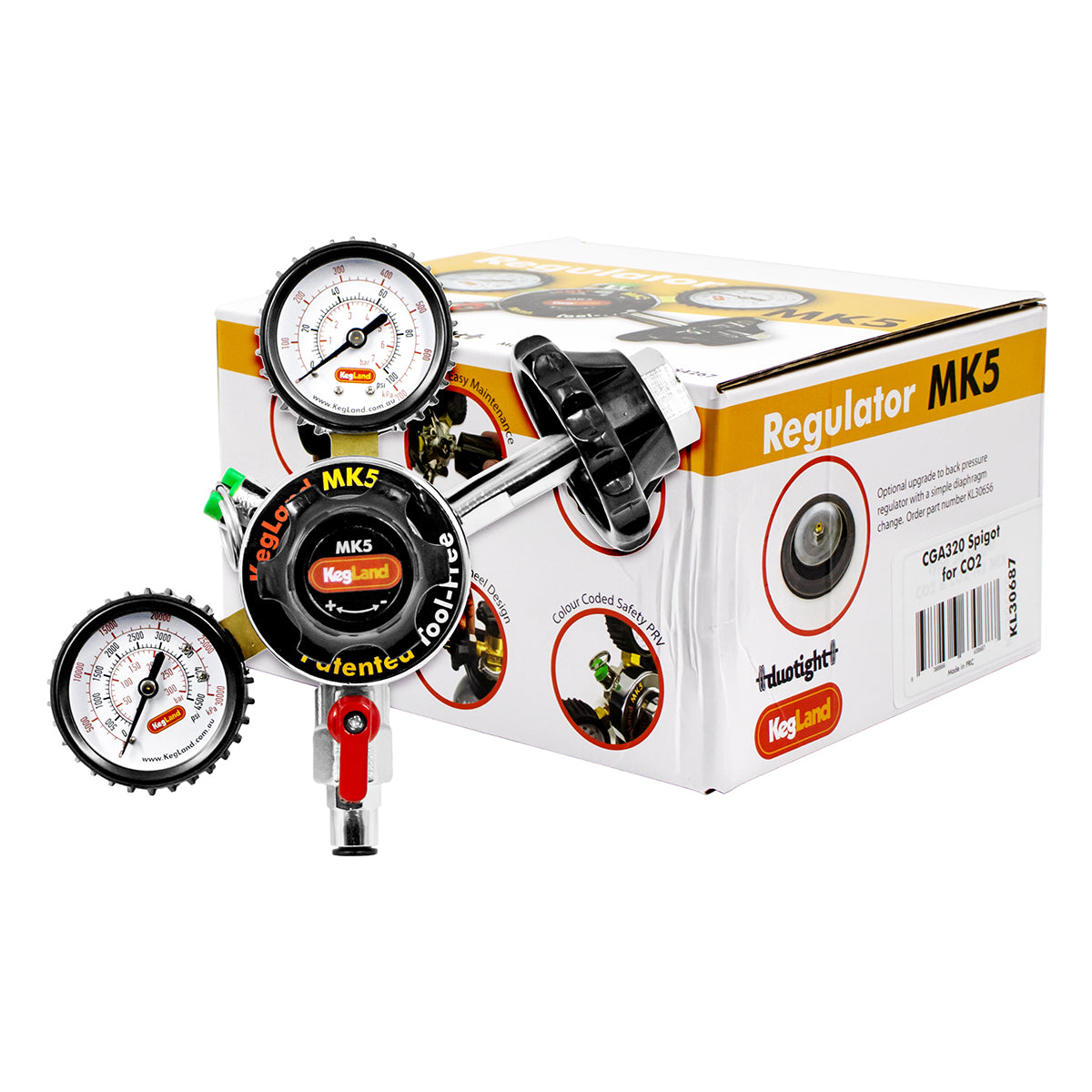

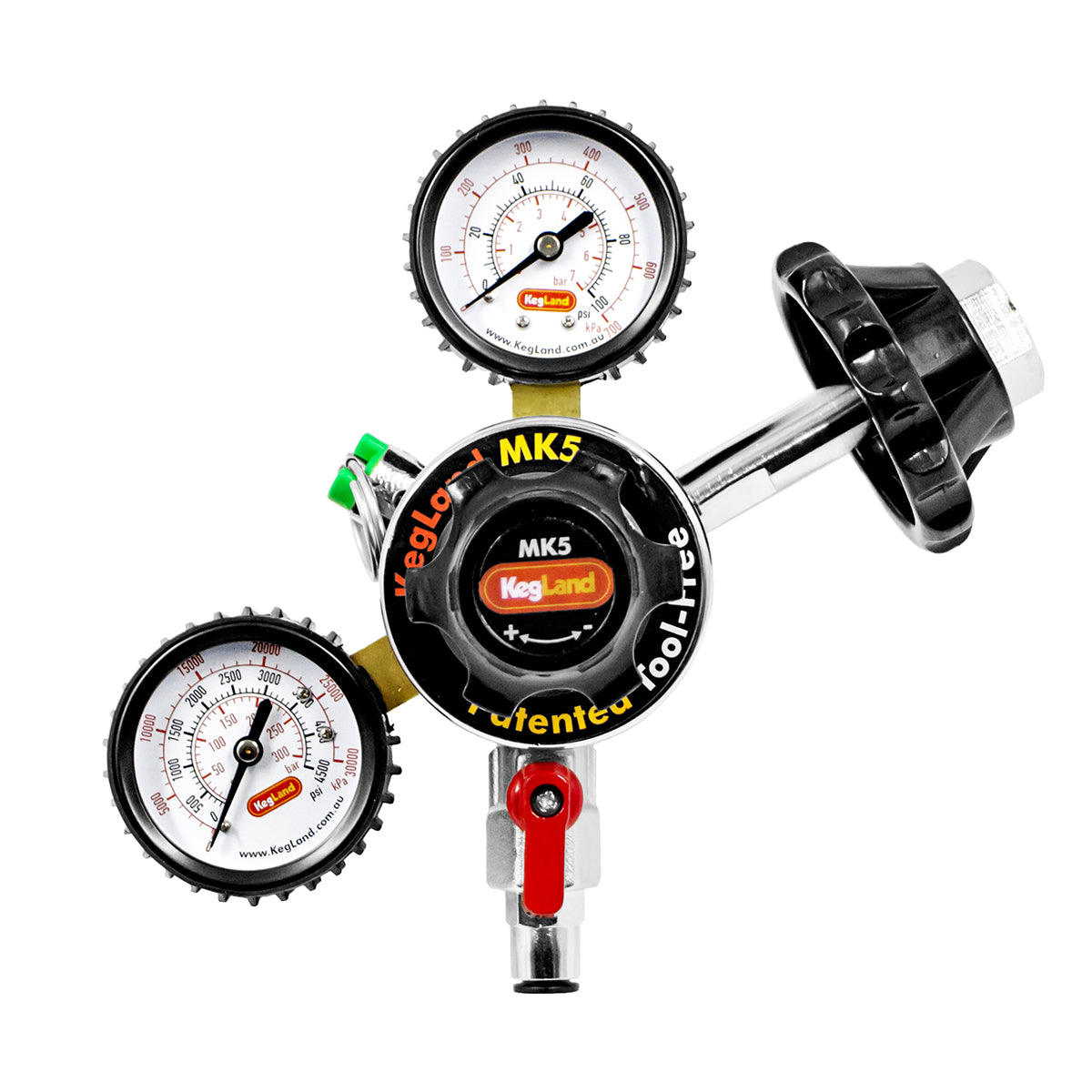

Kegland Multi-Gas 1-Way Primary Co2 Tool-Free Regulator (100 PSI, 4500 PSI) - 5/16" (8mm) [MK5]

Product Code: KL30687

This primary Co2 regulator is the newest generation of Kegland’s dual-gauge regulators, offering improved build quality, tool-free adjustment, upgraded seals, and enhanced over-pressure protection. It features a chrome-plated brass body with a standard Co2 CGA320 inlet.

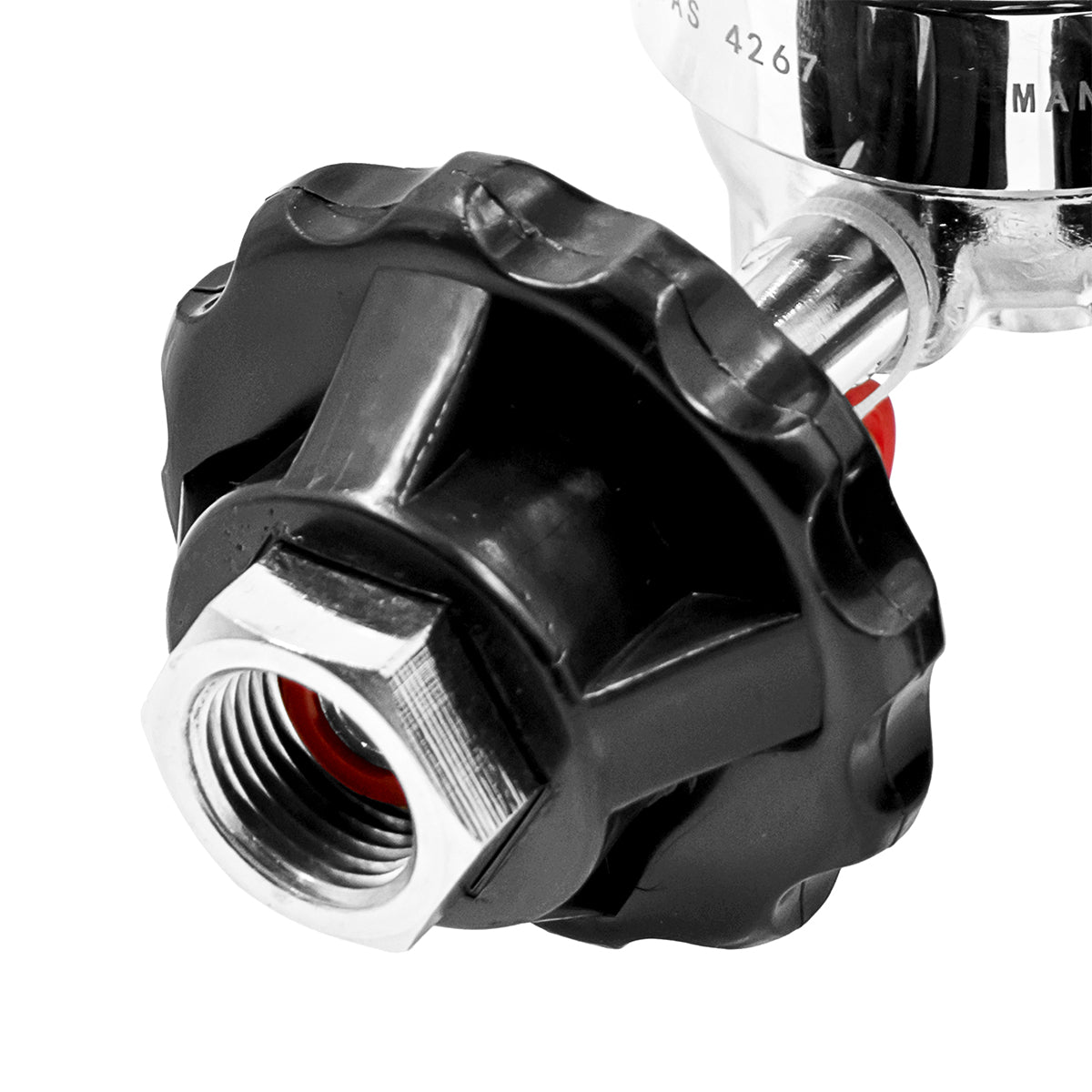

The redesigned tool-free adjustments allow one-handed tightening onto the Co2 cylinder. Thanks to the hand wheel and new spigot-seal design, no spanner wrench is required as the seal compresses easily without risk of damage or leaks.

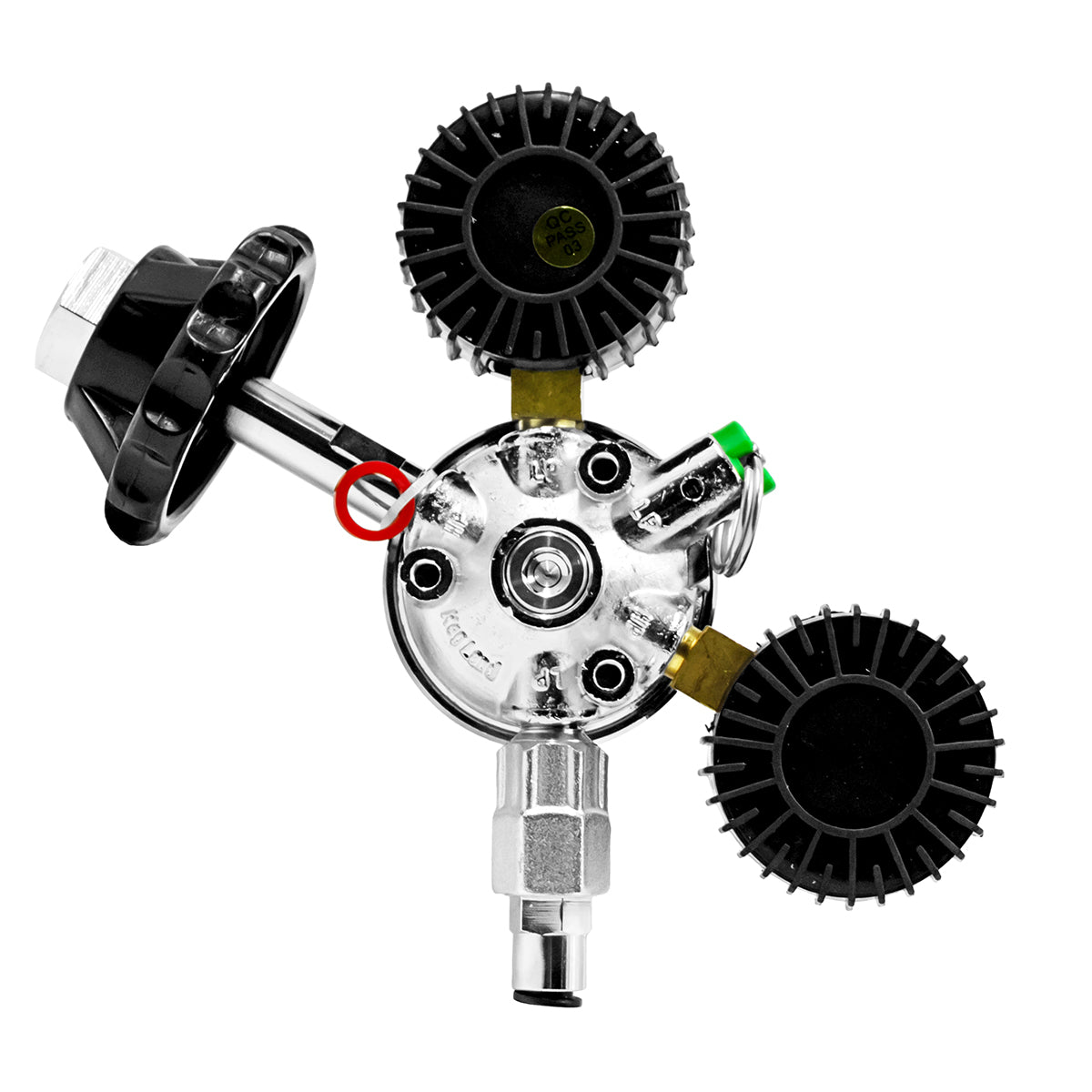

Self-servicing has also been greatly improved. A vice or specialized tools are no longer needed. The internals have been reduced in size and are now accessible directly from the rear plate. You can disassemble and clean the regulator using only a simple Allen key if contaminants enter the system.

The seat cap has been completely redesigned and is now made from ultra high molecular polyethylene, making it significantly stronger and more resistant to wear and damage.

The regulator has a "shut down" safety system that can be manually released using the integrated colour coded PRV. Rubberized gauge protection helps prevent impact damage, while the thicker steel gauge bodies add further durability.

Primary regulators are designed to be directly hookup up to your CO2 tank providing a way to reduce the high pressure of gas being dispensed.

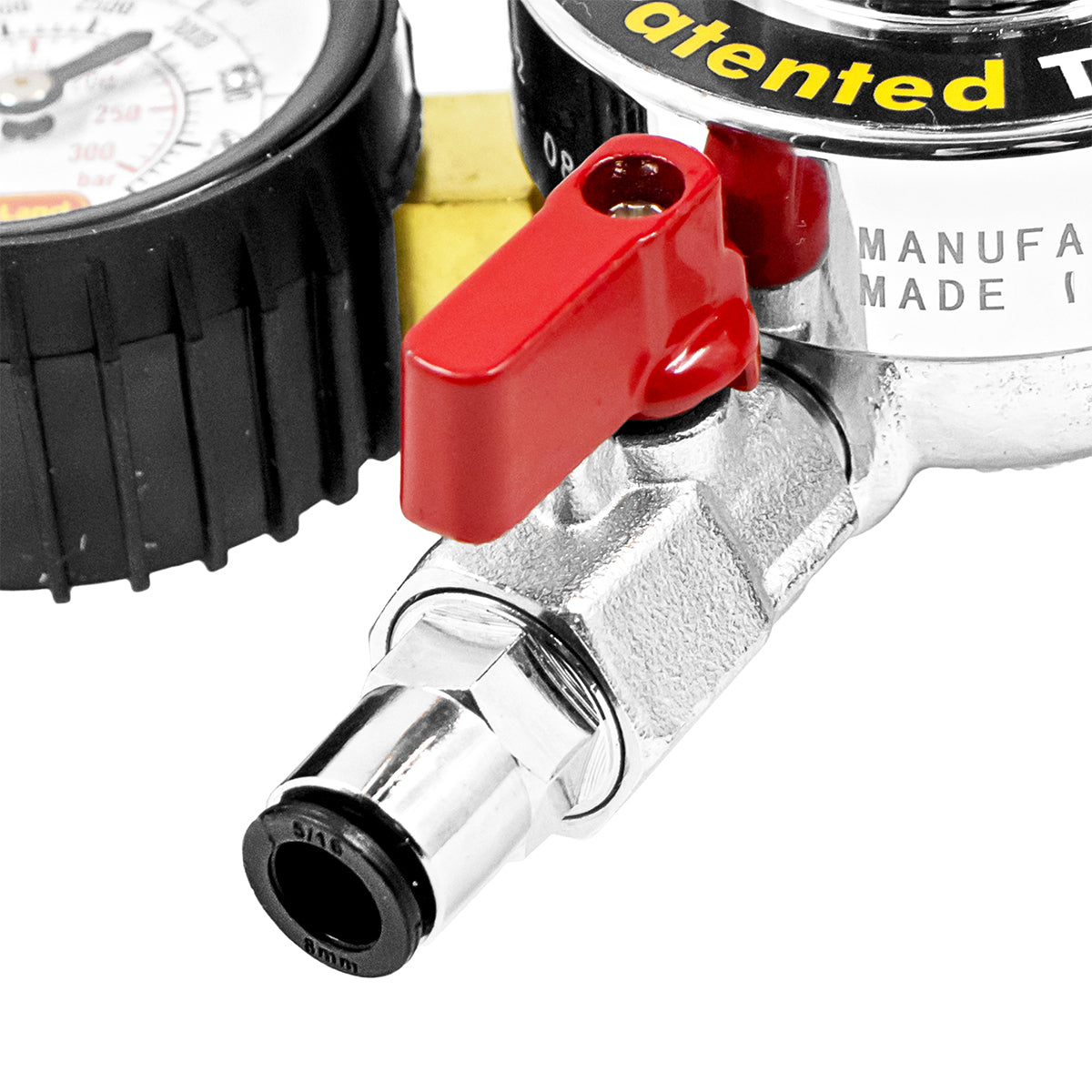

The outlet is a fully integrated ball valve with check that is equipped with a Duotight (Push-In) 5/16" (8mm) connection.

Duotight fittings are designed to work by simply pushing in the compatible tubing.

Inside each fitting are dual EPDM o-rings that provide superior sealing capacity due to having twice the sealing surface area when compared to other push in fittings. This makes Duotight fittings even more reliable and significantly reduces the chance of a leak.

For optimal performance it is recommended that when cutting your tubing it is cut straight, not on an angle, this helps to ensure a complete seal.

Meant to be used with 5/16" OD (8mm) Polyethylene Tubing.

---

Specifications:

• To protect dispensing systems each regulator has a built-in colour coded pressure relief valve that can be manually released
• Forged brass body for greater durability. Chrome Plated Finish. Can handle Co2 and Mixed Gasses
• CGA320 Inlet (Left hand thread)
• Body parts are 1/4" NPT
• Duotight (Push-In) Ball Valve with Check - 5/16" (8mm) x 1
• Working Pressure Range 0 - 20 PSI
• Tool-free Design
• Thick Steel Gauge Bodies
• Easy grip knob for easy adjustments
• M6 Mounting Holes
• Rubberized gauges for extra protection
• 0-100 PSI low pressure gauges (Right Hand Thread)
• 0-4500 PSI high pressure gauge (Left Hand Thread)

Dimensions:

• 7 1/2" Wide
• 7" Tall
