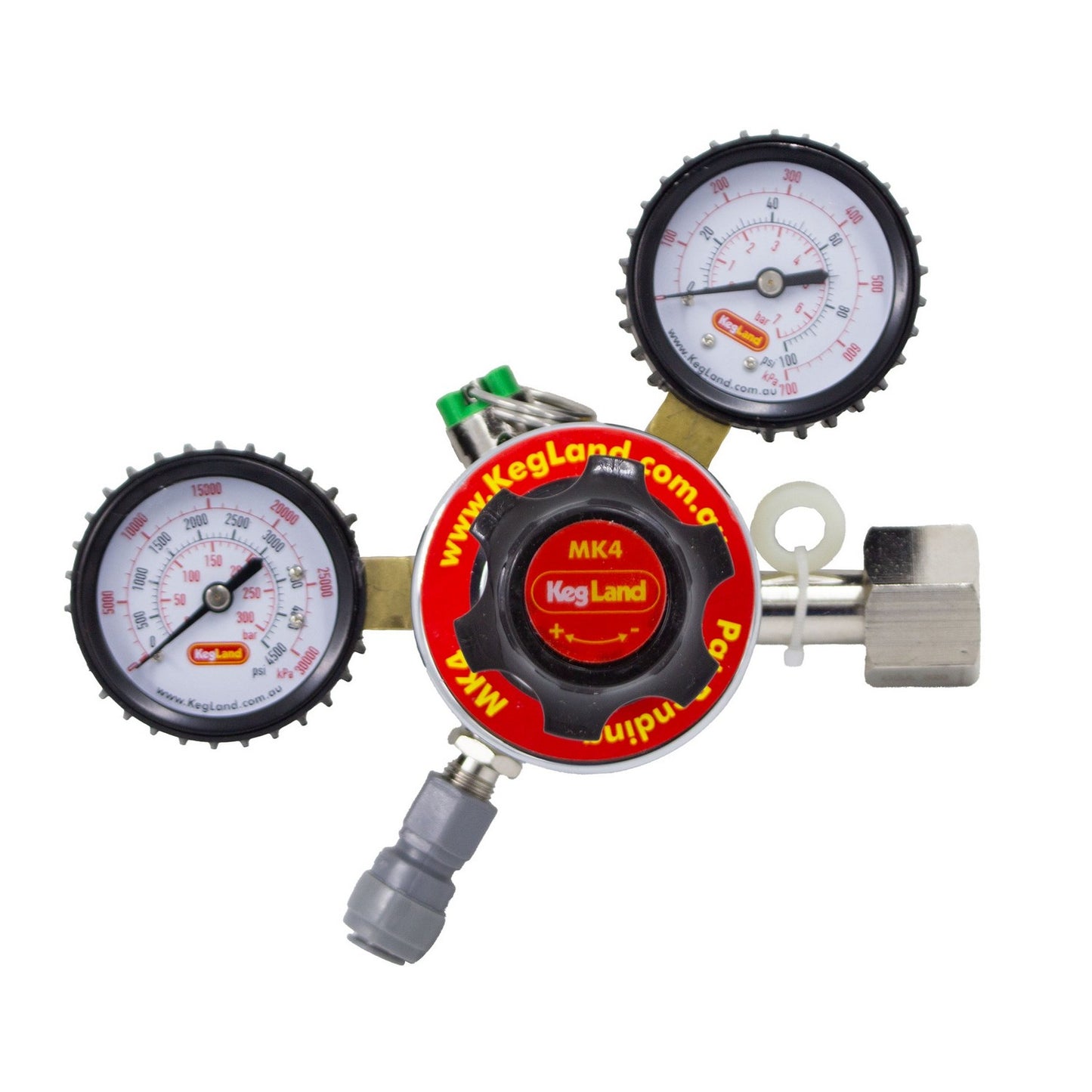

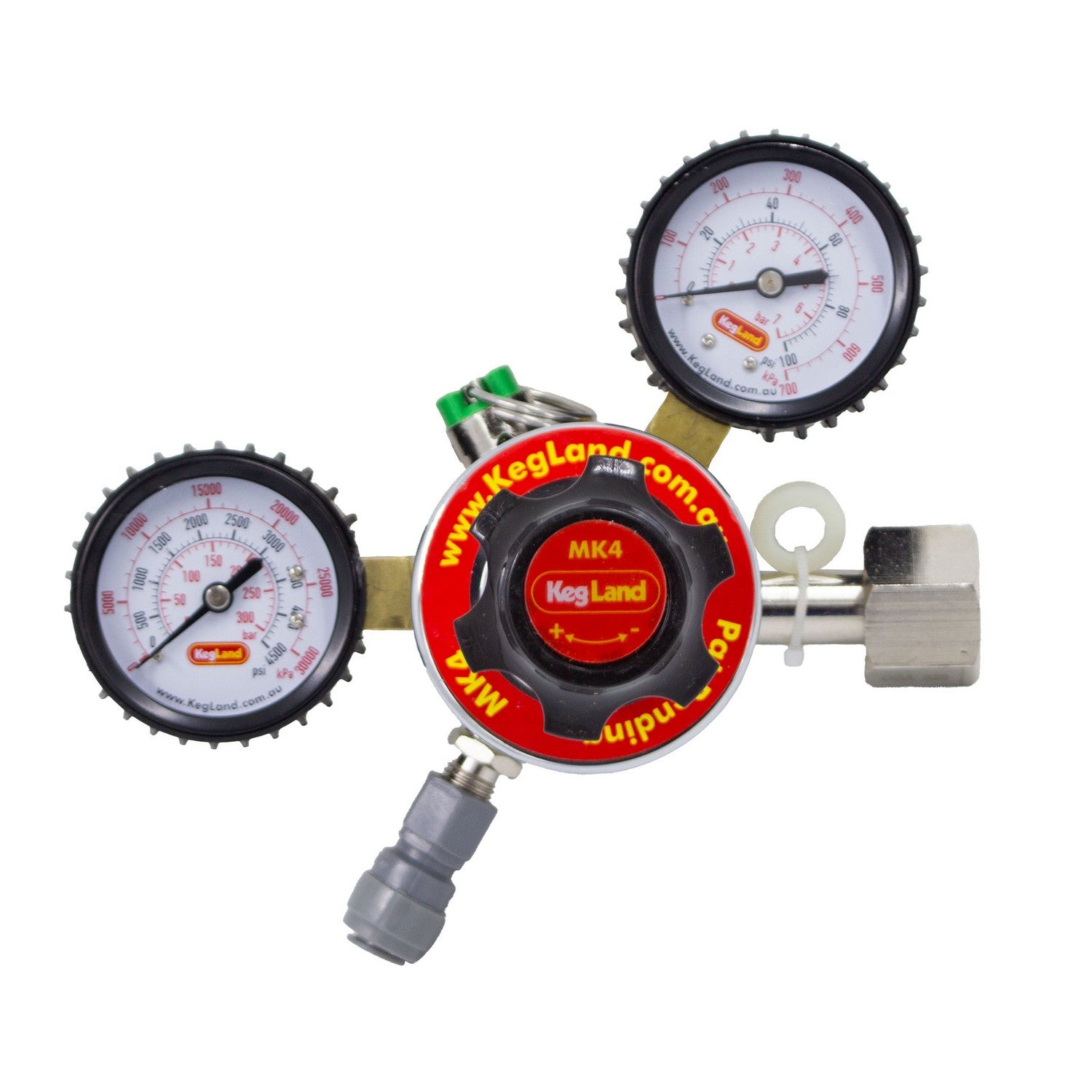

Kegland Multi-Gas 1-Way Primary Co2 Regulator (100 PSI, 4500 PSI) - 5/16" (8mm) [MK4]

This affordable primary Co2 regulator features a durable chrome plated brass body and comes with a standard Co2 CGA320 inlet.

The regulator includes a safety system that can be manually released using the integrated PRV. The gauges are protected by a rubberized coating to prevent damage.

Primary regulators are designed to be directly connected to your CO2 tank, providing a way to lower the high pressure of the gas being dispensed.

The outlet has a 1/4" MFL connection (right hand thread) and is equipped with a Duotight Food Grade Plastic (Push-In) Fitting - 1/4" FFL X 5/16" (8mm).

Duotight fittings are designed to work by simply pushing in the compatible tubing. These fittings have dual EPDM o-rings inside them, which provide superior sealing capacity due to having twice the sealing surface area compared to other push-in fittings. This makes Duotight fittings more reliable and significantly reduces the chance of a leak.

For optimal performance, it is recommended to cut your tubing straight, not on an angle, as this helps ensure a complete seal.

This regulator is intended to be used with 5/16" OD (8mm) Polyethylene Tubing.

Specifications:

• Chrome-Plated Forged Brass Body

• Type 30 Inlet (Left hand thread)
• 1/4" NPT Threads
• 1/4" MFL Connections (right hand thread)
• Duotight Food Grade Plastic (Push-In) Fittings - 1/4" FFL X 5/16" (8mm)
• Working Pressure Range 0 - 90 PSI
• Rubberized gauges

• 0-100 PSI low pressure gauge (Right Hand Thread)
• 0-4500 PSI high pressure gauge (Left Hand Thread)

Dimensions:

• 7" T x 6 3/4" W

Product Code: KL07450
