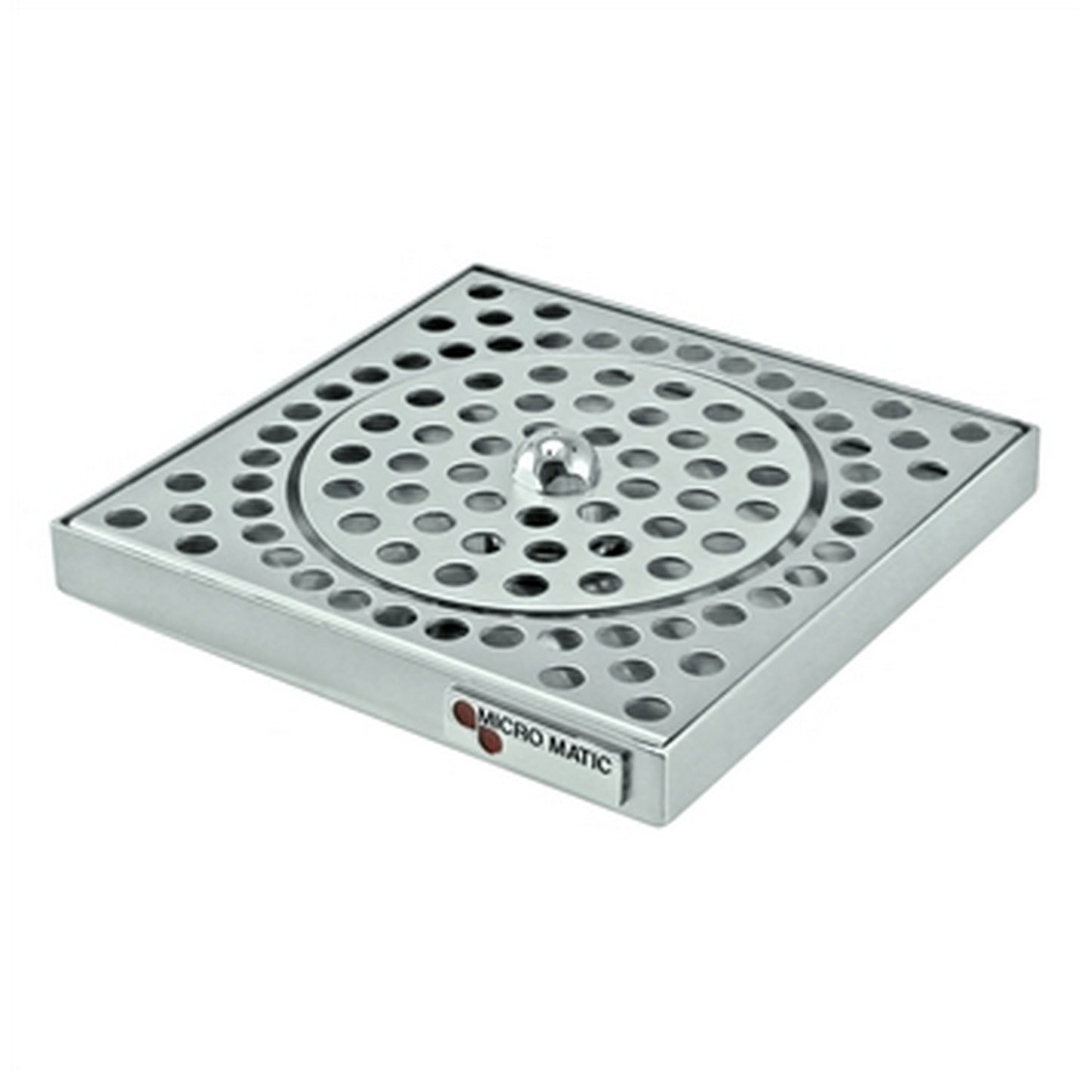

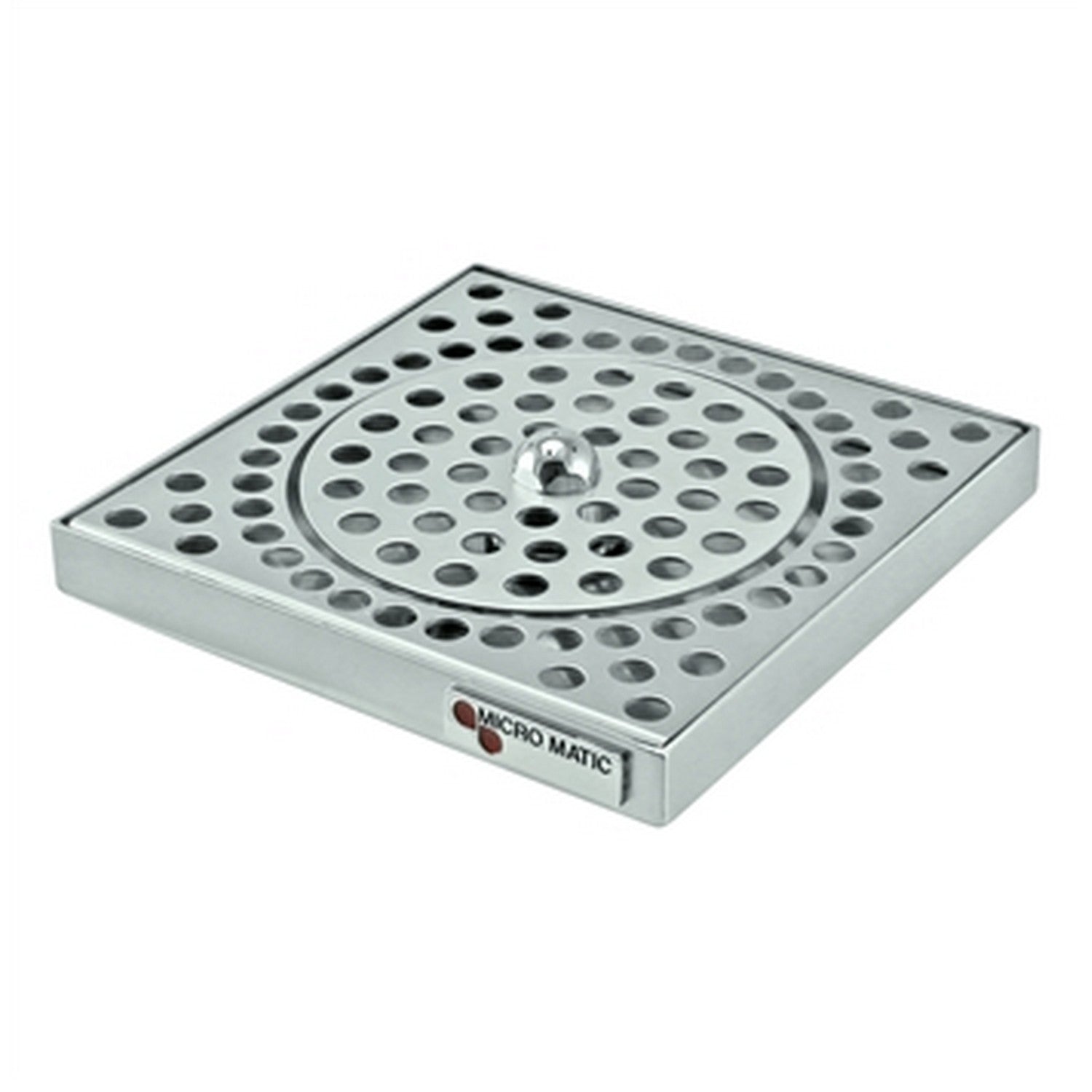

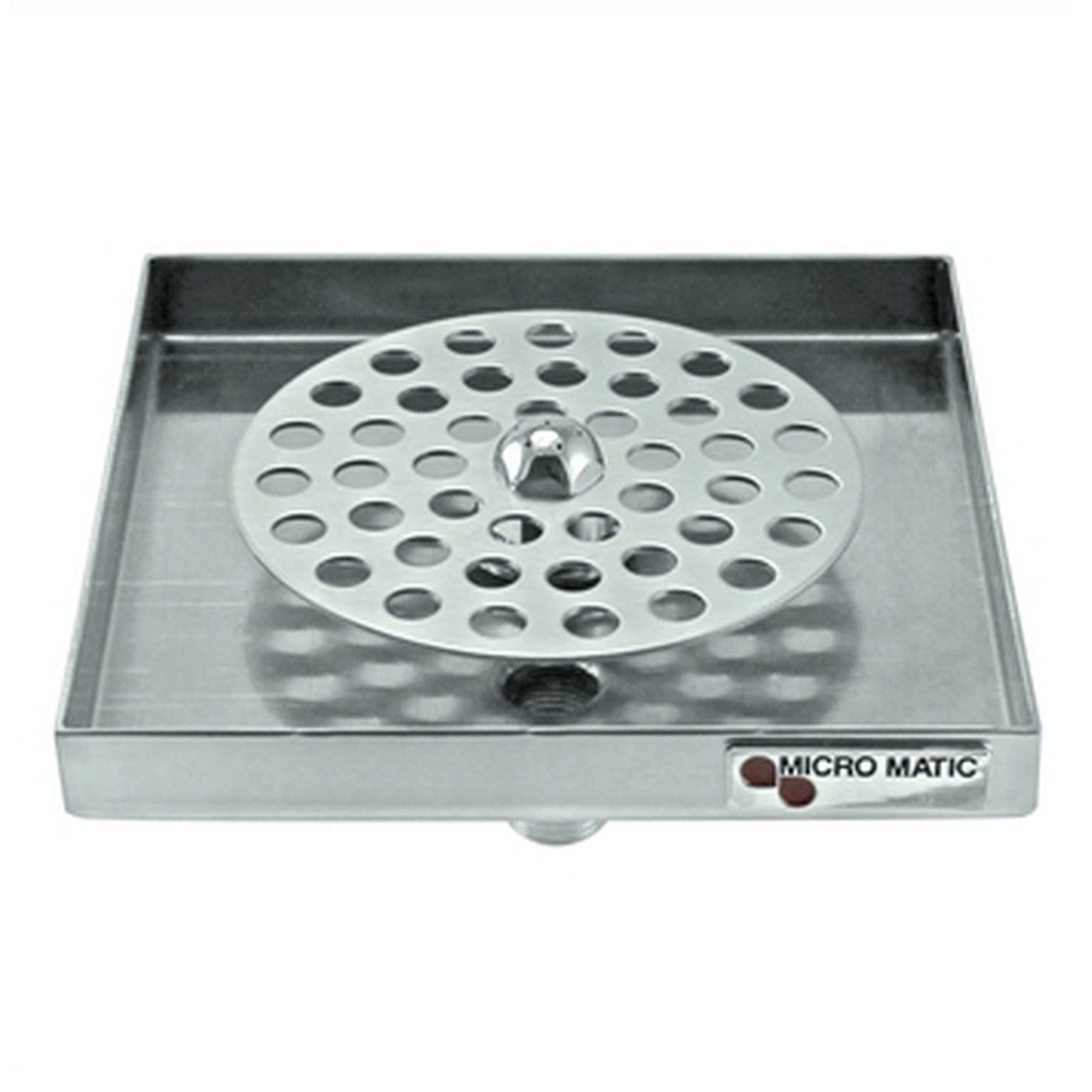

Micro Matic Stainless Steel Spray Glass Rinser With Drain Drip 6 3/8" X 6 3/8" X 3/4" Tray

Both the high-quality Micromatic glass rinser and the surrounding drip tray are made from 18 gauge brushed 304 stainless steel. Strong and durable, this spray glass rinser will make an excellent addition to your bar.

Easily rinse your glasses with the fully integrated 4.5" spray glass rinser. This rinser activates by applying pressure which sprays water cleaning your glasses.

Comes with all required mounting hardware for drain and rinser.

---

Specifications:

• 18 Gauge 304 Stainless Steel Construction
• Surface Mount Spray Glass Rinser with Drain Drip Tray
• Welded corners, finished smooth for safety and appearance
• 4 1/2" Diameter Spray Glass Rinser
• Easy dump screen
• 3/8" Female NPT Drain

Dimensions:

• 6 3/8" Length
• 6 3/8" Width
• 3/4" Height

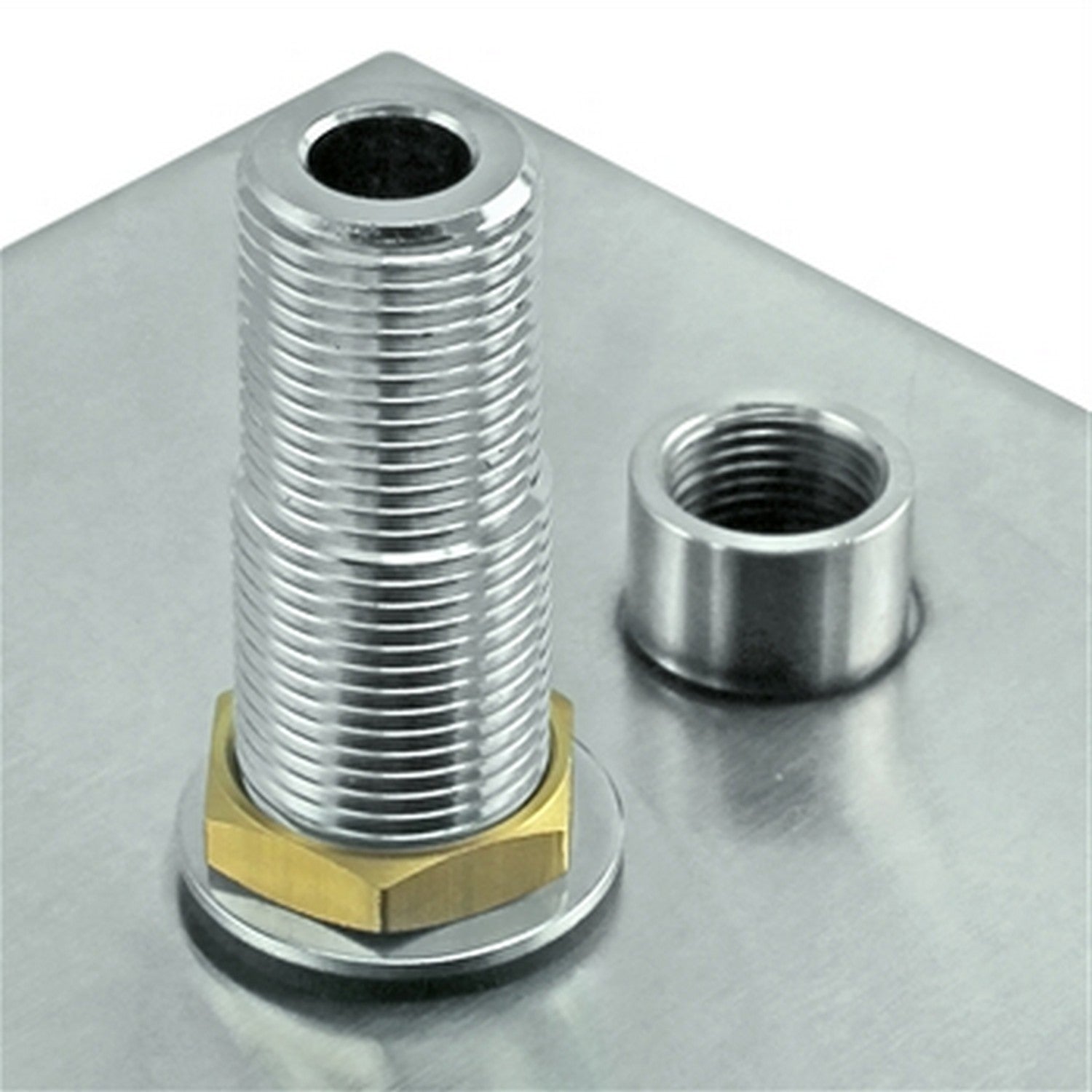

Rinser Drain Sizing:

• 7/8" -14 UNF
• 2 3/4" Length

Rinser Installation Instruction:

• Check local plumbing codes prior to installation
• Install inline water regulator set at 15 PSI from water supply (do NOT exceed 15 PSI)
• Install inline one way check valve from water supply (prevents pressure drop)
• Install inline shut-off for the rinser from water supply (must be turned off nightly)
• Install shut-off for the water supply if line is not attached directly into the system
