Micro Matic 1-Way Primary Nitrogen Regulator (60 PSI, 3000 PSI) - Premium Plus Series

  • $122.99

This 1-Way Primary Low-Pressure Nitrogen Regulator from the Micro Matic Premium Plus Series has a safety system 'shut down' to blow off at 55 - 65 PSI.

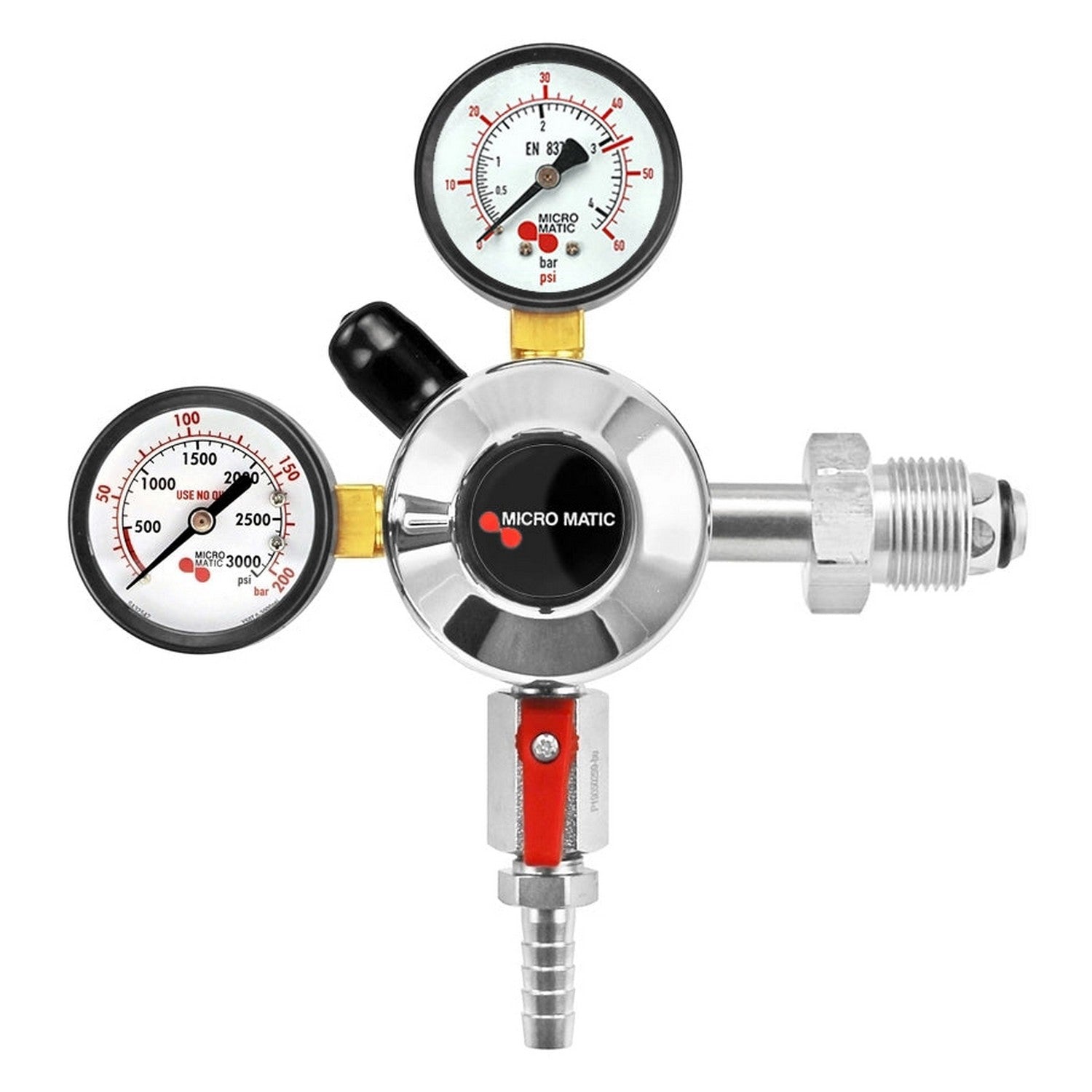

The low-pressure gauge on this Chrome-Plated Brass bodied regulator is 0 - 60 PSI. As with all primary regulators, it is designed to be hooked up directly to your Nitrogen tank.

Micro Matic states - Only use in a gas blender or nitrogen generator application!

  • Body parts are 1/4" NPT
  • Sintered Bronze mesh inlet filter
  • CGA580 Inlet (Left-Hand Thread)
  • Working Pressure Range 0 - 15 PSI
  • Built-in CO2 resistant solid nylon inlet seal
  • 0-15 PSI low-pressure gauge (Right-Hand Thread)
  • 0-3000 PSI high-pressure gauge (Left Hand Thread)
  • 3/8" OD barbed gas shut-off valve (Right-Hand Thread)
  • Nickel-plated valve seat for higher corrosion resistance
  • The front-loading seat assembly is easily replaceable in the field
  • Forged brass body for greater durability. The body has enough mass to serve as a heat sink to help prevent freeze up. Chrome Plated Finish.
  • To protect dispensing systems the regulator has a built-in high volume external safety relief valve factory set to relieve at 55-65 PSIG. Can be manually released using the integrated PRV.
