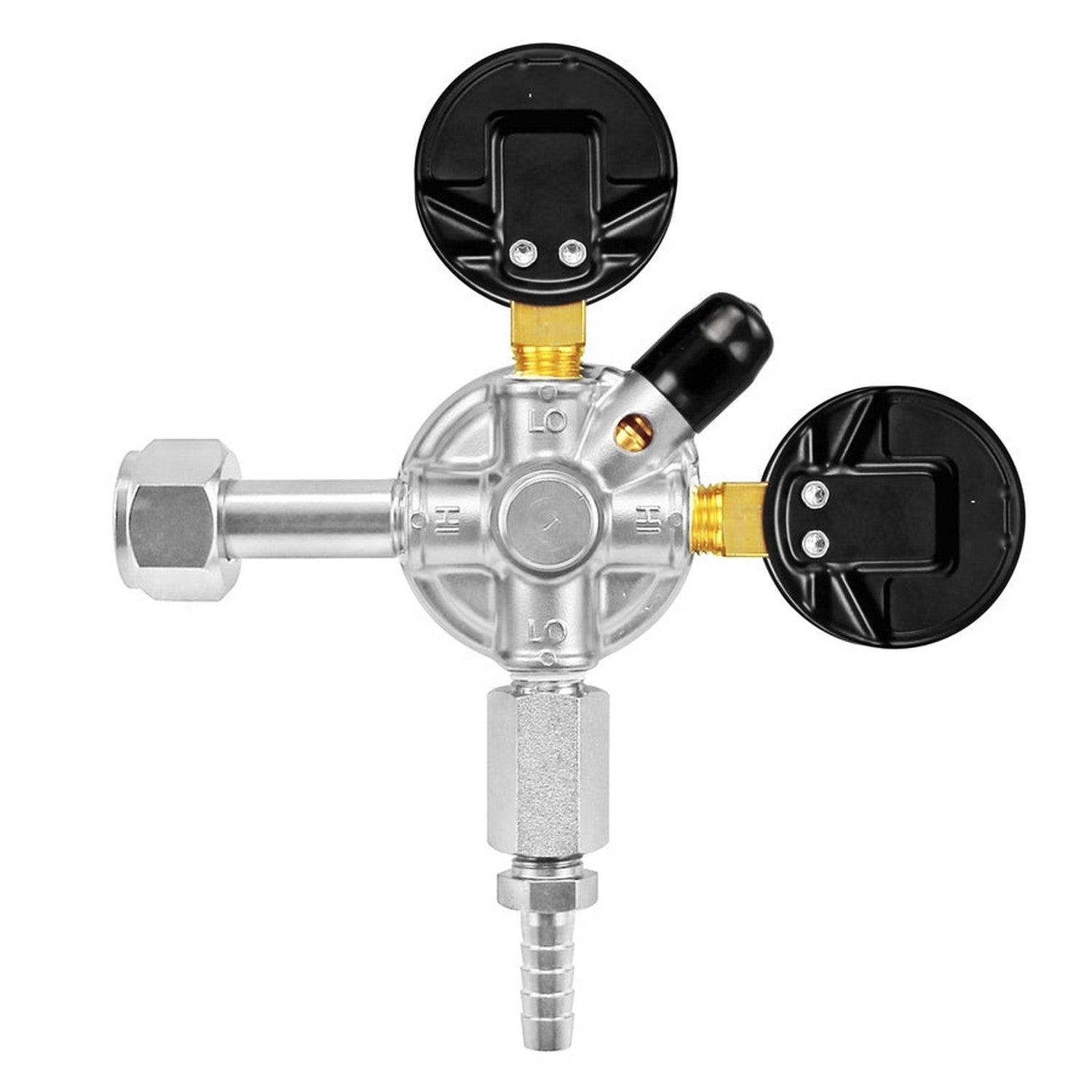

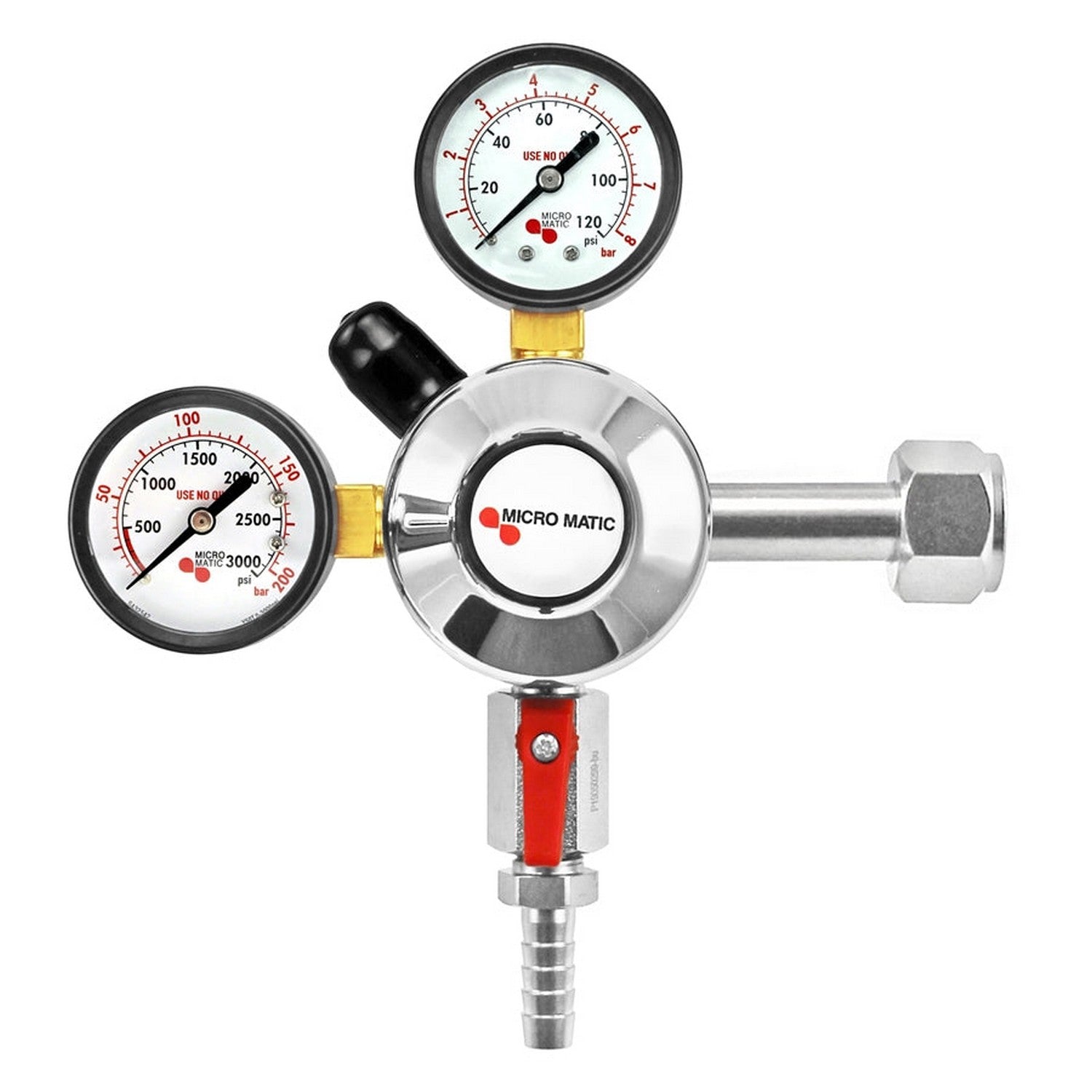

Micro Matic Premium Plus Primary High Pressure CO2 Regulator (160 & 3000 PSI) [942B-PP]

High quality Micromatic 1-Way Primary CO2 Regulator. Premium Plus Series. NSF Approved -- Approved for use by all major breweries. Manufactured in the USA.

This primary CO2 regulator has a chrome plated brass body that comes equipped with a CGA320 inlet.

The regulator has a "shut down" safety system (blow off at 115 to 125 PSI). High quality and highly accurate gauge. All right hand (RH) threaded ports.

'High Pressure' regulators are equipped with a 0-120 PSI gauge opposed to the standard 0-60 PSI gauge traditionally found on a regulator.

The valve seat is made out of nickel plated brass for higher corrosion resistance. As well as a sintered bronze mesh inlet filter. It is approved for use with CO2.

Primary regulators are designed to be directly hookup up to your CO2 tank providing a way to reduce the high pressure of gas being dispensed.

The outlet is a 3/8" OD barbed gas shut-off valve (Right hand thread)

Warning from Micro Matic:
Only use in a gas blender or nitrogen generator application!

---

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 115-125 PSIG.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Chrome Plated Finish. Can handle Co2
• Nickel plated valve seat for higher corrosion resistance
• Sintered bronze mesh inlet filter
• Built in CO2 resistant solid nylon inlet seal
• CGA320 Inlet (Left hand thread)
• Body parts are 1/4" NPT
• 3/8" OD barbed gas shut-off valve (Right hand thread)
• Working Pressure Range 0 - 120 PSI
• Front loading seat assembly is easily replaceable in the field
• 0-120 PSI low pressure gauge (Right Hand Thread)
• 0-3000 PSI high pressure gauge (Left Hand Thread)

Dimensions:

• 6 3/4" Wide
• 7 1/4" Tall

Warning from Micro Matic:
Only use in a gas blender or nitrogen generator application!
