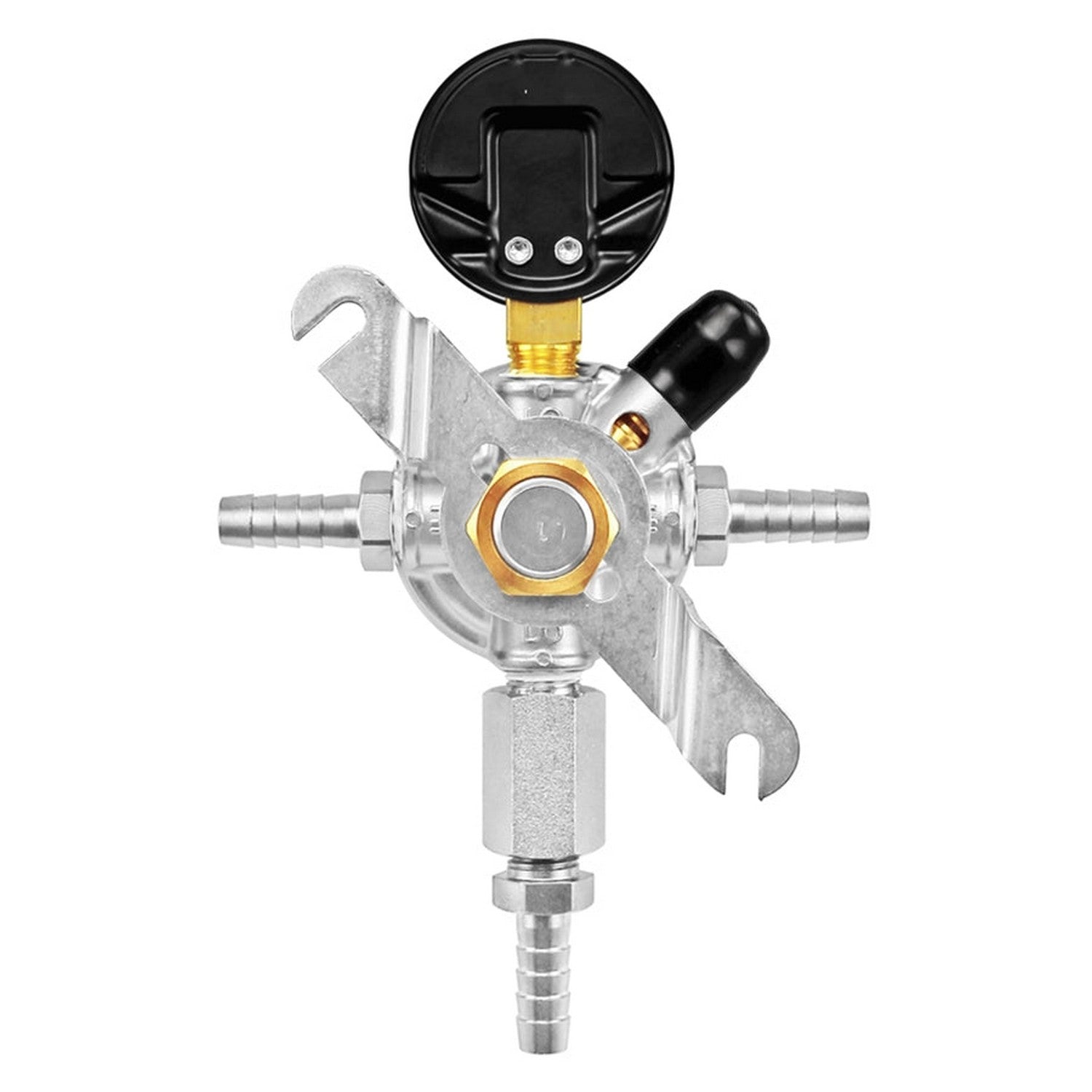

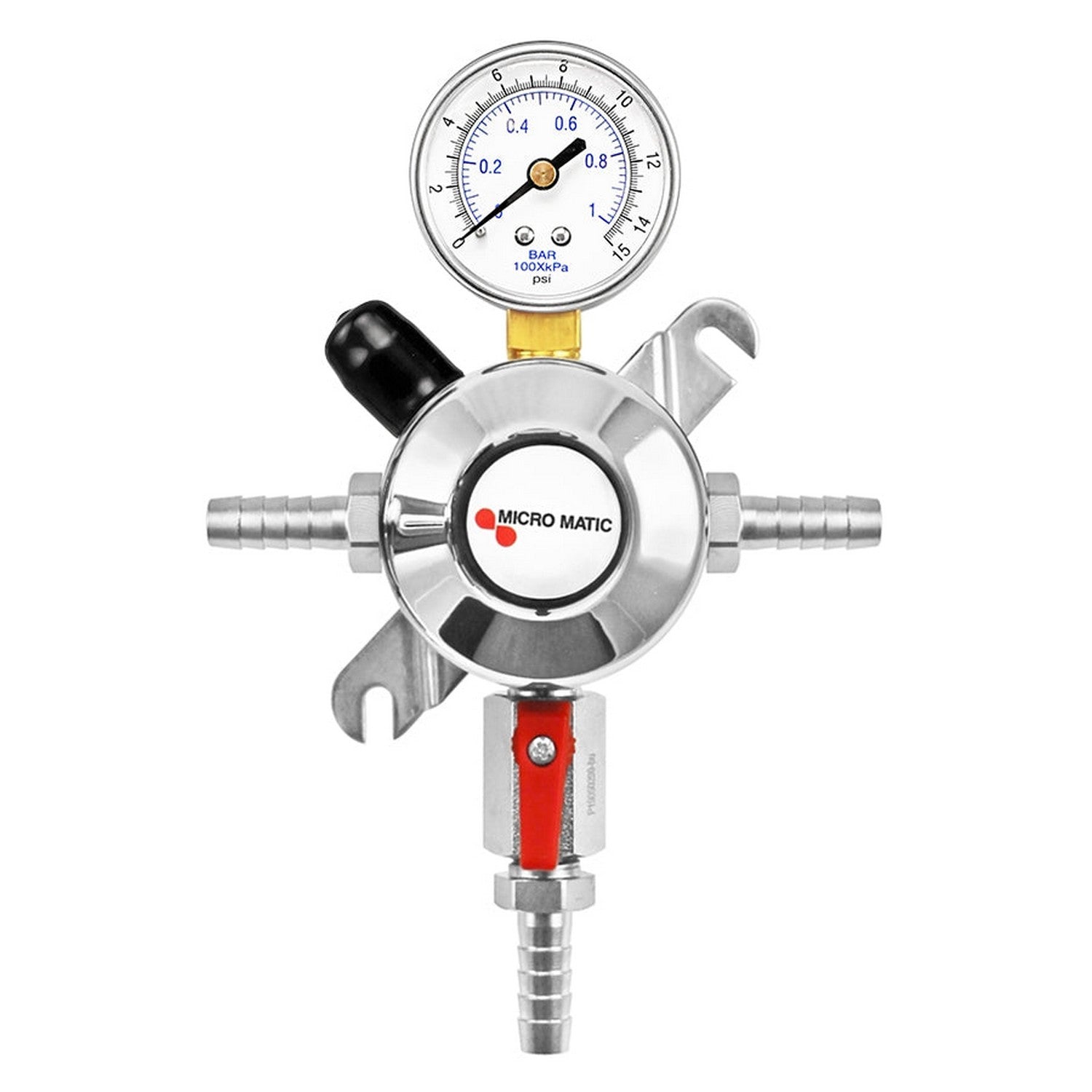

Micro Matic Secondary CO2 Regulator - Premium Plus Series (15 PSI) [8011-15-PP]

Here we have the Premium Plus Series secondary CO2 regulator manufactured by Micro Matic.

With a maximum gauge reading of 15 PSI, this regulator ensures precise control.

Safety is a priority with a pressure relief mechanism that activates between 55 and 65 PSI.

Enjoy the durability of a chrome-plated forged brass body, which guarantees long-lasting performance.

This regulator features a convenient shut-off valve equipped with a 3/8" OD barb for the outlet. Additionally, it provides a 3/8" OD barbed inlet/outlet for efficient pass-thru functionality.

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-65 PSIG.
• Secondary regulators are designed to further reduce pressure from a primary regulator to a proper dispensing level.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Chrome Plated Finish. Can handle Co2
• Flow control inlet filter
• Nickel plated valve seat for higher corrosion resistance
• 3/8" OD barbed inlet (Right hand thread)
• Body parts are 1/4" NPT (Right hand thread)
• 3/8" OD barbed gas shut-off valve (Right hand thread)
• Working Pressure Range 0 - 55 PSI
• Front loading seat assembly is easily replaceable in the field
• Comes with wall mounting brackets
• Includes additional 1/4" Male NPT Hex Plug
• 0-15 PSI low pressure gauge (Right Hand Thread)

Dimensions:

• 4 3/4" Wide
• 7 1/2" Tall
