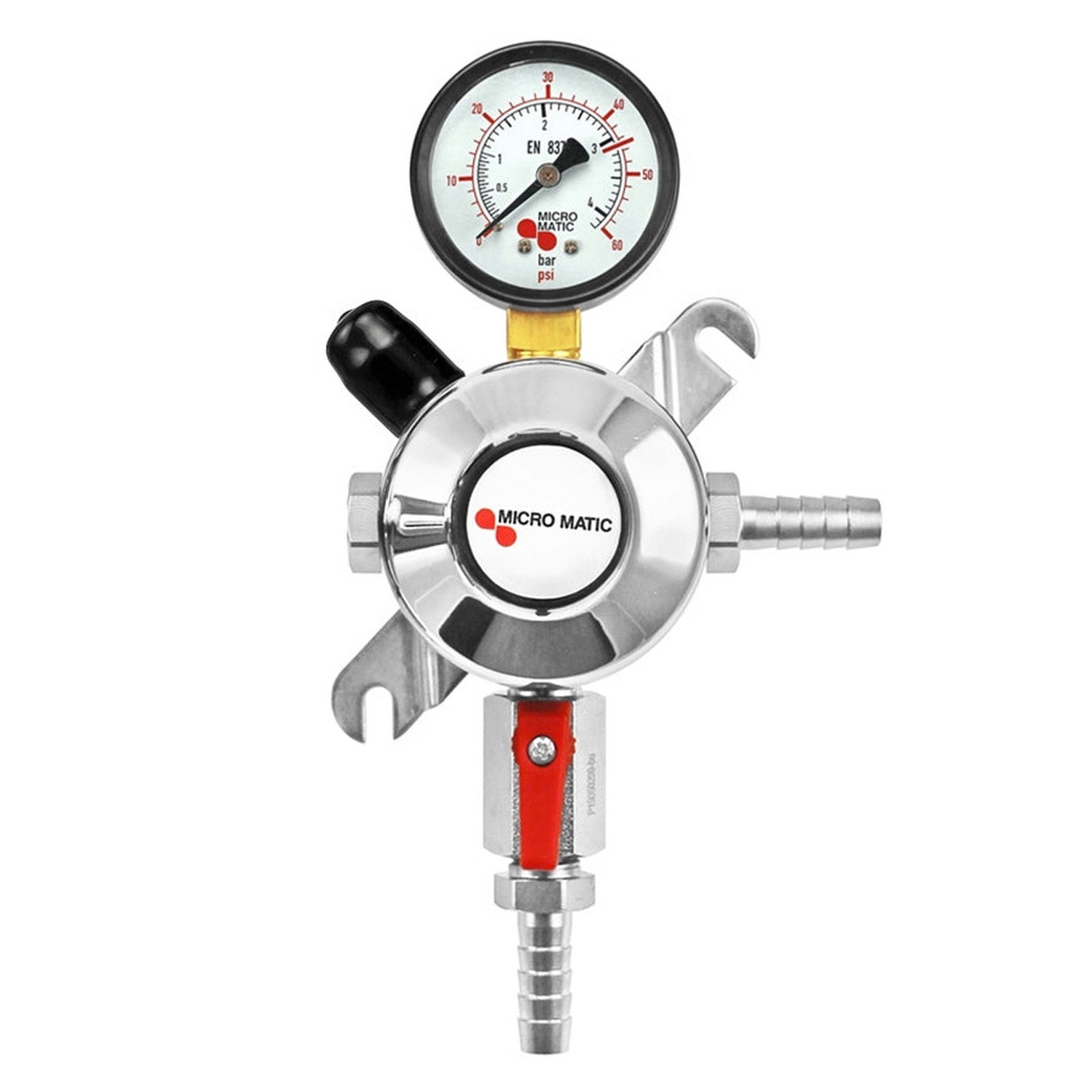

Micro Matic Secondary CO2 Regulator - Premium Plus Series (60 PSI) [8011-PP]

Now a remarkable addition to the Premium Plus Series - the secondary CO2 regulator designed by Micro Matic.

With its impressive gauge that reaches up to 60 PSI, this regulator ensures precise control over CO2 pressure. Moreover, the safety pressure relief system is ingeniously set to trigger between 55 and 65 PSI, providing an added layer of protection.

The body of this regulator is crafted from chrome plated forged brass, guaranteeing both durability and an elegant appearance.

Equipped with a convenient shut-off valve, the outlet features a 3/8" OD barb, while the inlet is fitted with a 3/8" OD barbed connection. This design seamlessly ensures a reliable and efficient flow of CO2.

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-65 PSIG.
• Secondary regulators are designed to further reduce pressure from a primary regulator to a proper dispensing level.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Chrome Plated Finish. Can handle Co2
• Flow control inlet filter
• Nickel plated valve seat for higher corrosion resistance
• 3/8" OD barbed inlet (Right hand thread)
• Body parts are 1/4" NPT (Right hand thread)
• 3/8" OD barbed gas shut-off valve (Right hand thread)
• Working Pressure Range 0 - 55 PSI
• Front loading seat assembly is easily replaceable in the field
• Comes with wall mounting brackets
• 0-60 PSI low pressure gauge (Right Hand Thread)

Dimensions:

• 4 1/2" Wide
• 7 3/8" Tall
