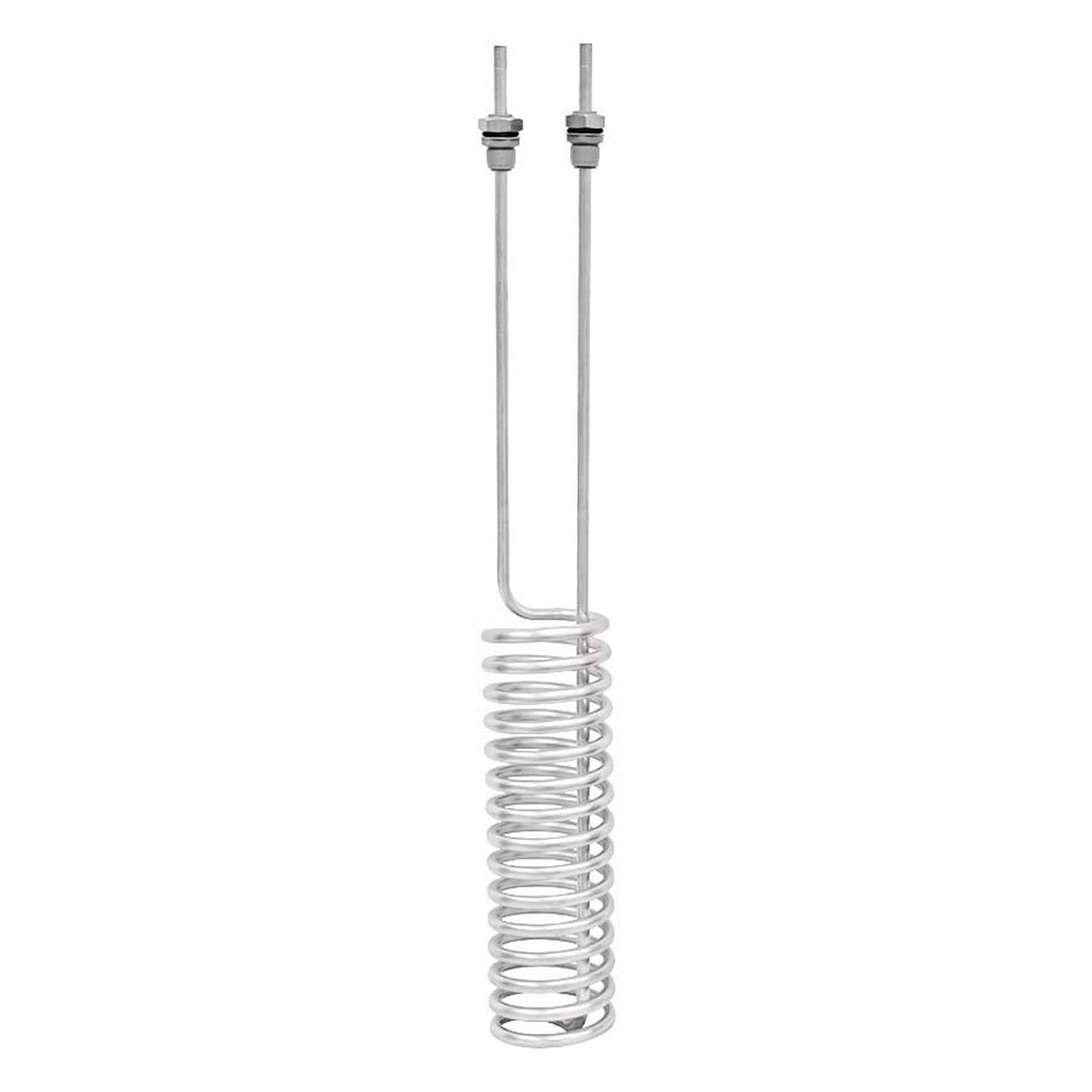

FermZilla Conical Fermenter Stainless Steel Temp Twister Coil

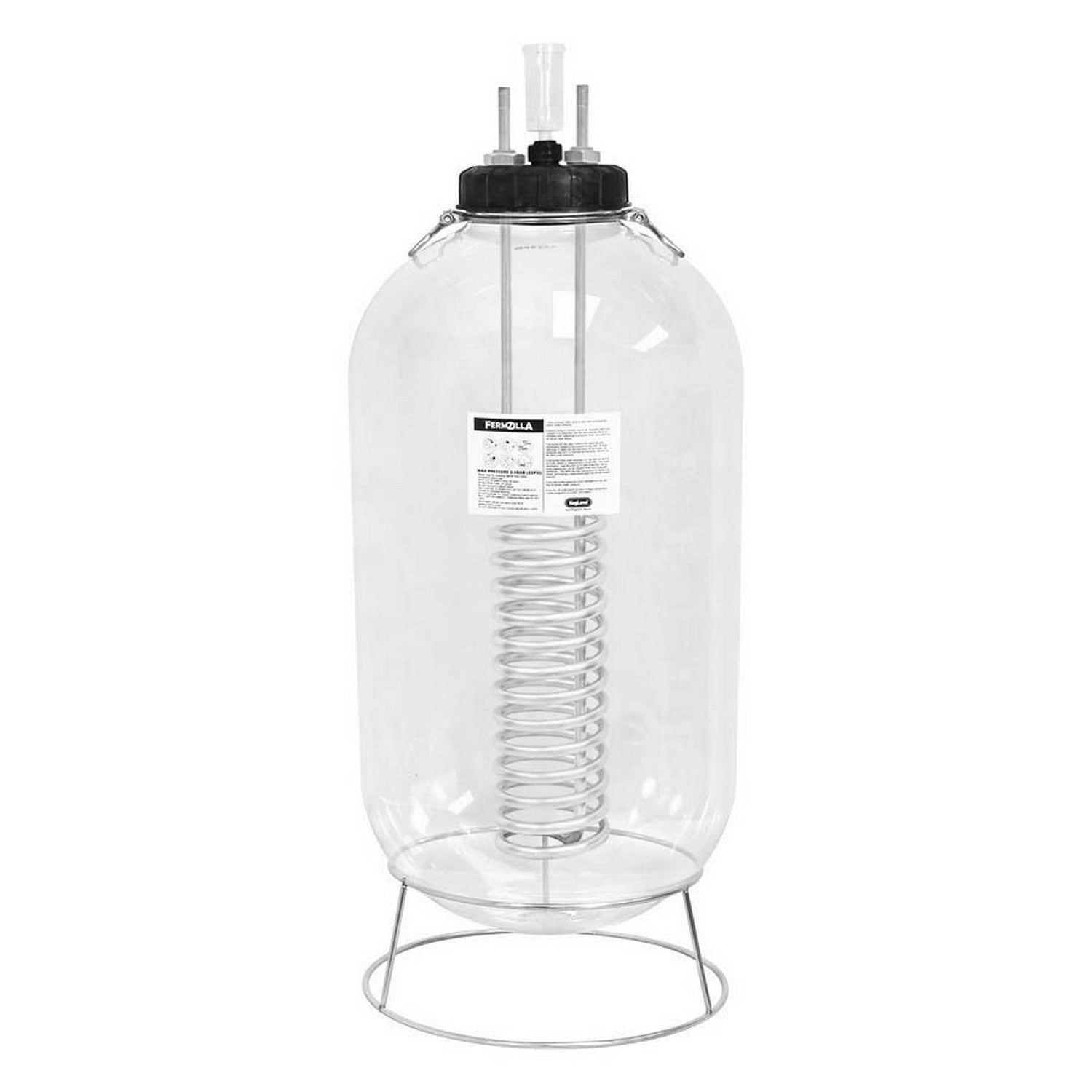

The cooling coil is specifically designed to work with the FermZilla Conical Fermenters, but it can also be adapted to fit other fermenters as long as they have an opening of 4 3/8" diameter or larger. To install the cooling coil, you would need to drill two 22mm holes into the lid of your fermenter and use the provided Duotight bulkheads to attach the coil. If your fermenter is smaller than the coil, you may need to modify the non-coil port to fit your vessel. The cooling coil is made of 304 Stainless Steel and is compatible with glycol chillers for both heating and cooling purposes.
Specifications:
- Stainless Steel (304)
- Duotight Food Grade Plastic (Push-In) Bulkhead - 1/2" NPT X 3/8" (9.5mm) x 2
- 27 3/4" Total Height
- 12 1/4" Coil Height
- 3 5/8" Coil Diameter
Compatible With:
- FermZilla Conical Fermenter - 7.1 Gallon (27L) | Gen 2
- FermZilla Conical Fermenter - 14.5 Gallon (55L) | Gen 2
- FermZilla Tri-Clover Conical Fermenter - 7.1 Gallon (27L) | Gen 3
- FermZilla Tri-Clover Conical Fermenter - 14.5 Gallon (55L) | Gen 3
- FermZilla All Rounder Fermenter - 7.9 Gallon (30L)
- FermZilla All Rounder Fermenter - 15.9 Gallon (60L)
Product Code: KL14618
