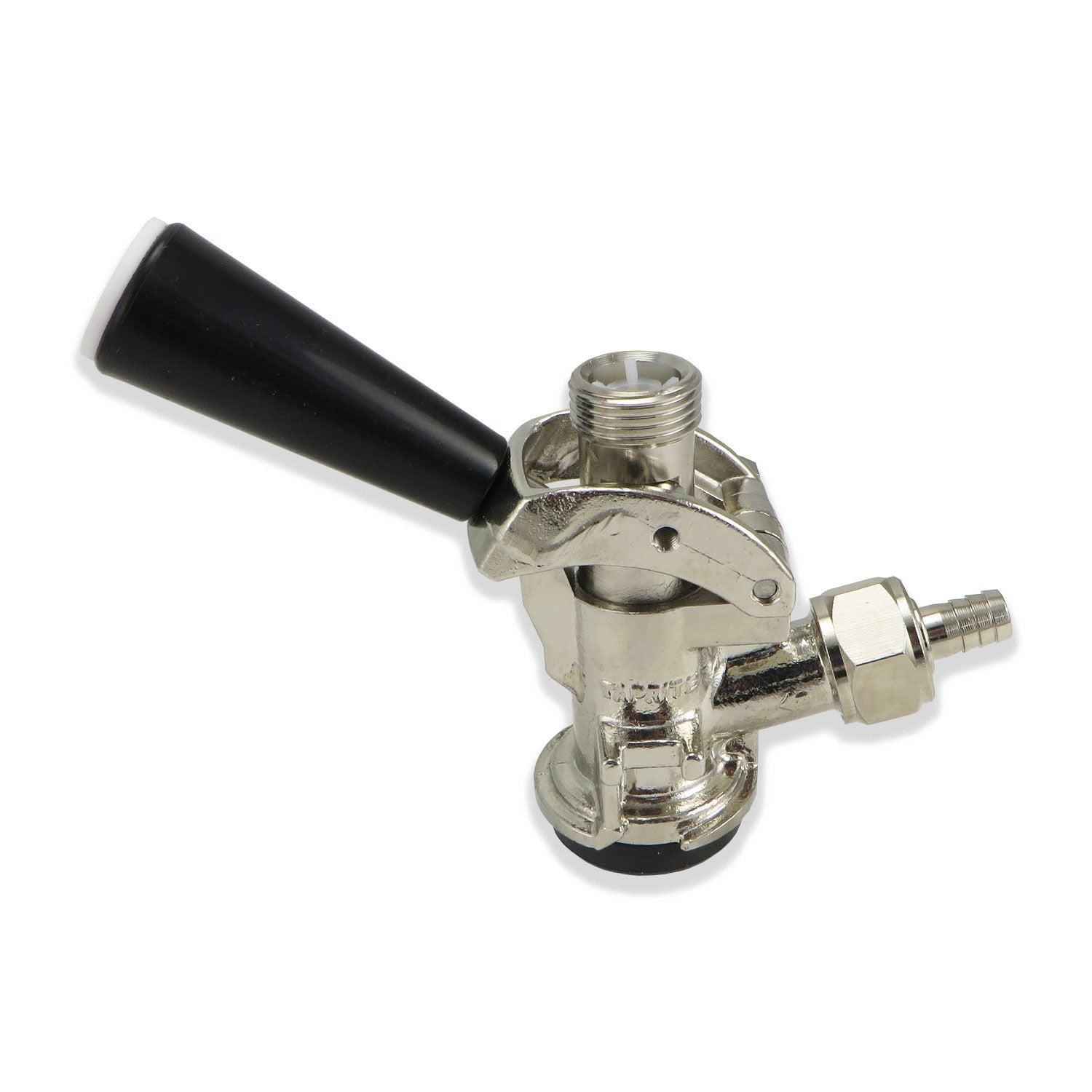

Taprite Sanke "S" Keg Coupler #CH5100

High quality Taprite "S" style Sanke Coupler. Manufactured in the USA and is NSF/UL approved.

This sanke keg coupler is made out of chrome plated brass. The handle is black and short style which is ideal for smaller diameter kegs. It has a fully integrated 55-PSI pressure relief valve as well as a ball check valve which prevents back flow of beer and can be easily removed for cleaning.

Taprite's unique KAM-Lock keg lock feature eliminates unexpected spray of beer or a loss of gas. In addition it can be fully and quickly disassembled for cleaning.

The gas port is 3/8" OD in diameter and will fit hose with an ID of 3/8" or 5/16".

Sanke "S" style couplers are used by many European breweries. It has a longer probe than a "D" style coupler.

Please Note: A Tail Piece Assembly is recommended as these parts are needed to properly hook up a Sanke Coupler to tubing.

---

Specifications:

• Model: CH5100
• Material: Forged Brass
• Finish: Chrome Plated
• Tailpiece Material: Forged Brass
• Probe Material: Forged Brass
• Type: "S" Style
• Handle Type: Short Handle
• Handle Colour: Black
• Tail Piece: 3/8" OD Barb
• Beer Port Size: 7/8"-14 (5/8" BSP) (U.S. Beer Industry Standard)

Find Your Brand:
(Always confirm with the store when purchasing the keg if it will be compatible.)

Sanke Coupler Chart

---

Taprite Documentation:

• EXPANDED PARTS BREAKDOWN
