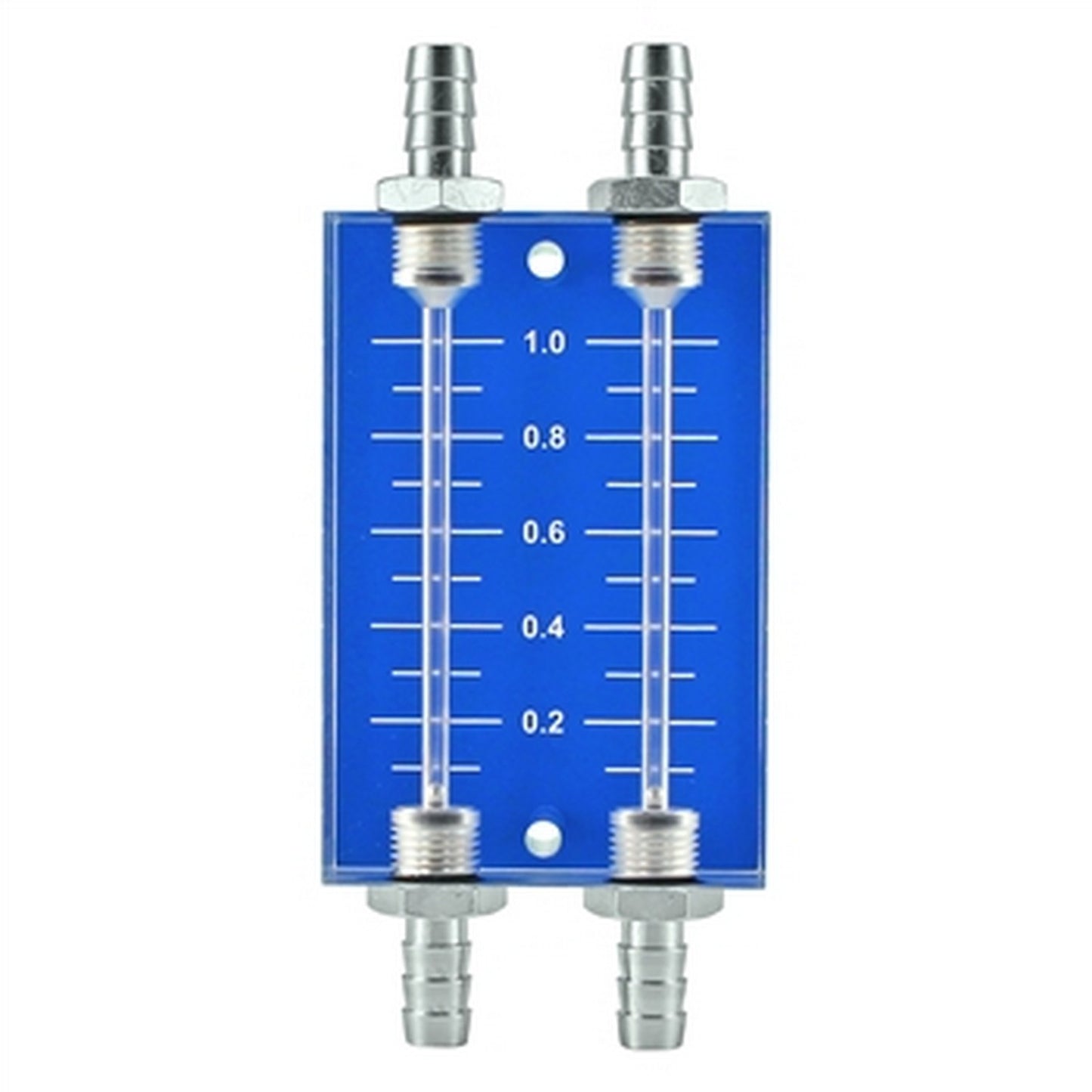

Micro Matic Double In-Line Leak Detector

This Micromatic double in-line leak detector is intended to be used in your dispensing setup to ensure that no CO2 or gas leak is present.

Having this device installed in your setup makes detecting leaks fast and easy especially when you are dispensing from multiple kegs.

How it works:

• The unit contains two separate chambers, each with a small plastic float ball.
• When gas is flowing through the chamber the floats are lifted up.
• The larger the gas flow the higher the floats lift up inside their chambers.
• If no beer or other beverage is being poured then the floats will sit at the bottom of the chambers.
• If they are floating when no beer is being poured then you have a leak and should immediately fix the issue.

---

Details:

• Easily determine if you have a CO2 or gas leak
• Ideal when dispensing from multiple kegs
• Excellent for ensuring a safe brewing environment
• Comes with required mounting hardware as well as labels

Dimensions:

• 6" Length
• 2 1/2" Width
• 1/4" Inner Diameter (Hose Barb)
• 3/8" Outer Diameter (Hose Barb)

Please refer to the Micro Matic User Guide for additional information.
