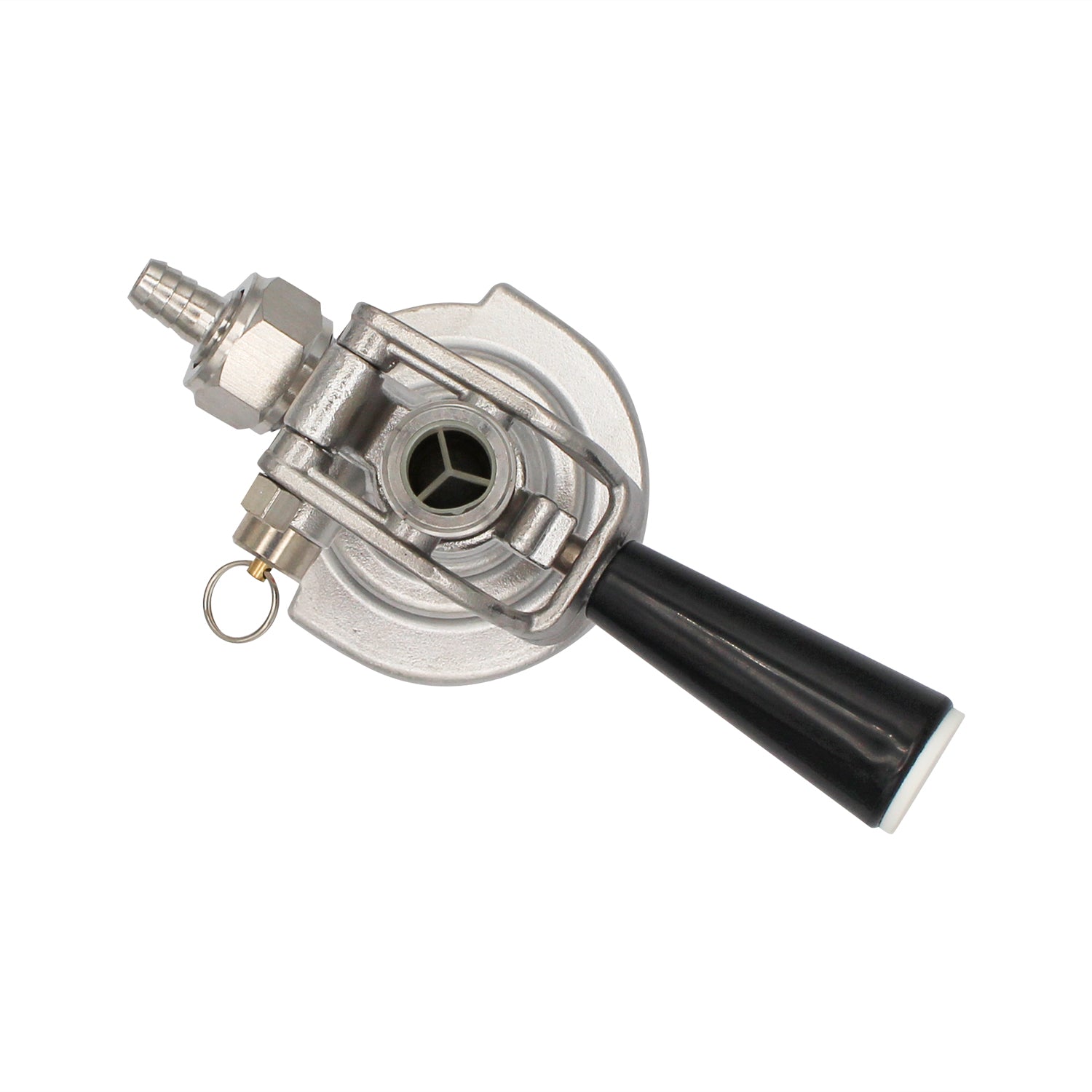

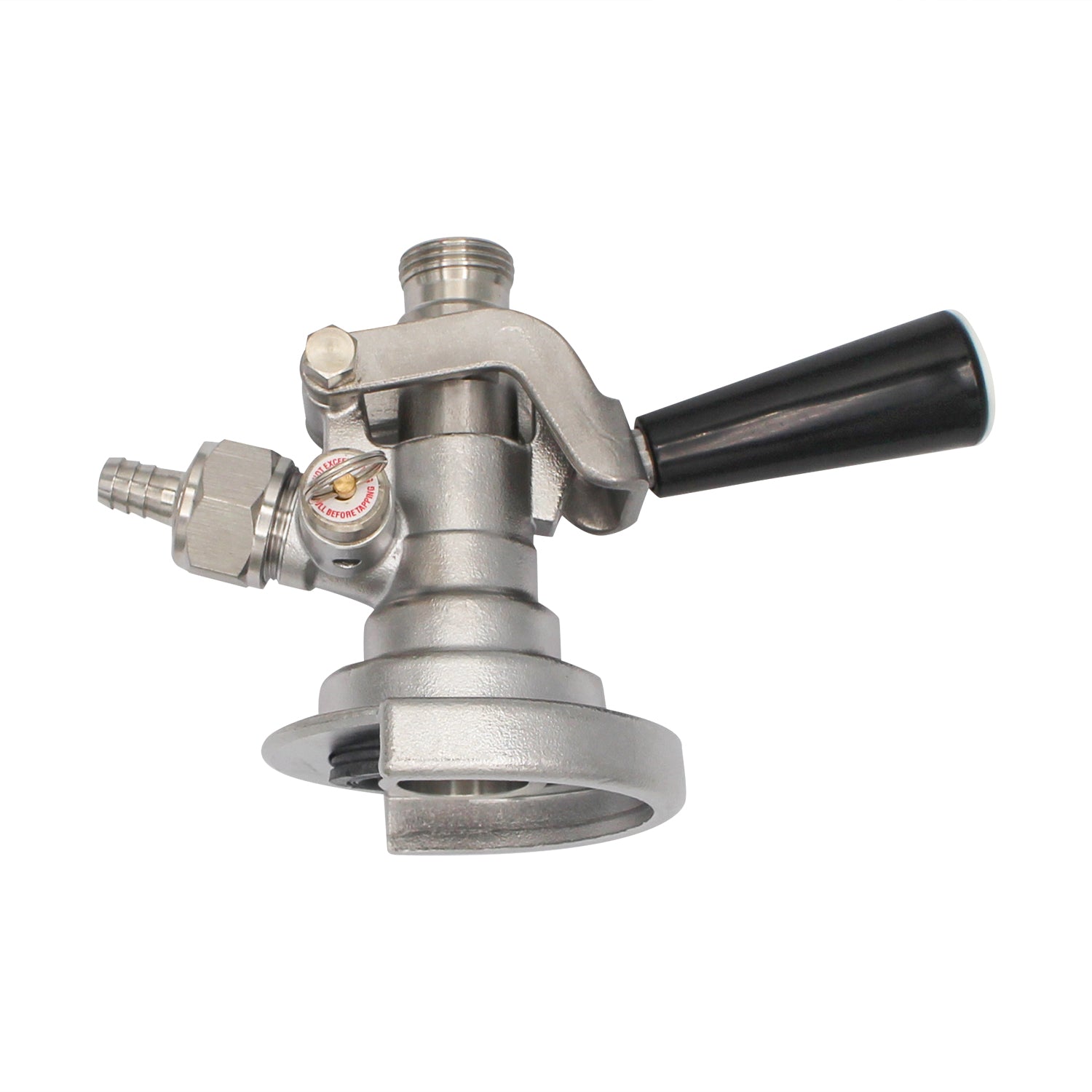

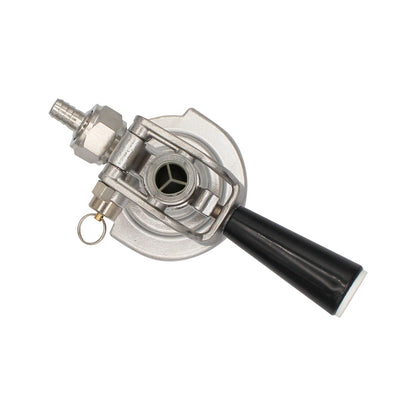

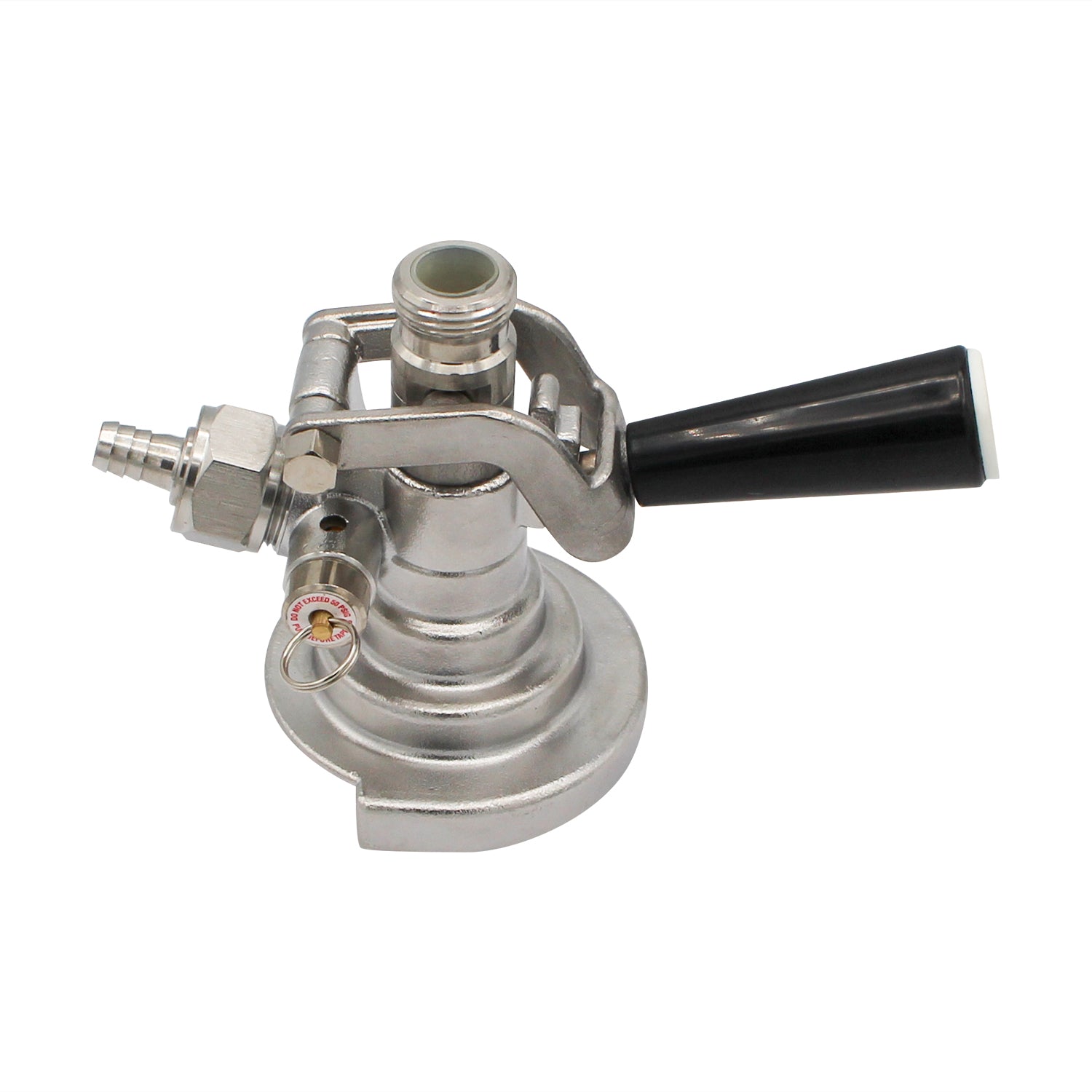

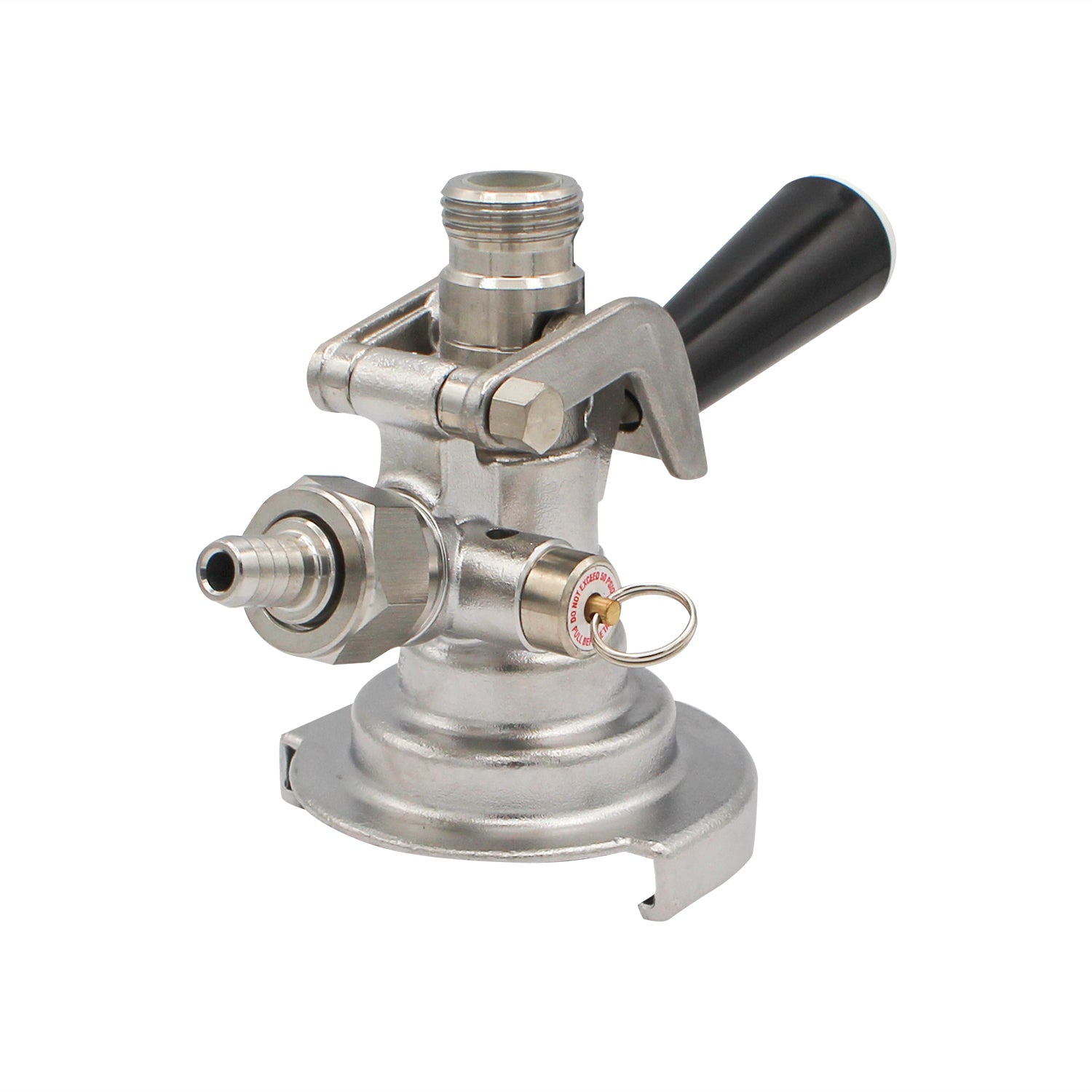

Taprite Sanke 'A' Coupler #CH5400A-SS

High quality Taprite "A" style Sanke Coupler. Manufactured in the USA and is NSF/UL approved.

This sanke keg coupler is made out of 304 stainless steel. The handle is black and short style which is ideal for smaller diameter kegs. It has a fully integrated 55-PSI pressure relief valve as well as a ball check valve which prevents back flow of beer and can be easily removed for cleaning.

Taprite's unique KAM-Lock keg lock feature eliminates unexpected spray of beer or a loss of gas. In addition it can be fully and quickly disassembled for cleaning.

The gas port is 3/8" OD in diameter and will fit hose with an ID of 3/8" or 5/16".

Sanke "A" style couplers are used by breweries such as Hoegaarden, Paulaner, Spaten, and Warsteiner.

Please Note: A Tail Piece Assembly is recommended as these parts are needed to properly hook up a Sanke Coupler to tubing.

---

Specifications:

• Model: CH5400A-SS
• Material: 304 Stainless Steel
• Finish: Polished Stainless Steel
• Tailpiece Material: 304 Stainless Steel
• Probe Material: 304 Stainless Steel
• Type: "A" Style
• Handle Type: Short Handle
• Handle Colour: Black
• Tail Piece: 3/8" OD Barb
• Beer Port Size: 7/8"-14 (5/8" BSP) (U.S. Beer Industry Standard)

Find Your Brand:
(Always confirm with the store when purchasing the keg if it will be compatible.)

Sanke Coupler Chart

---

Taprite Documentation:

• EXPANDED PARTS BREAKDOWN
