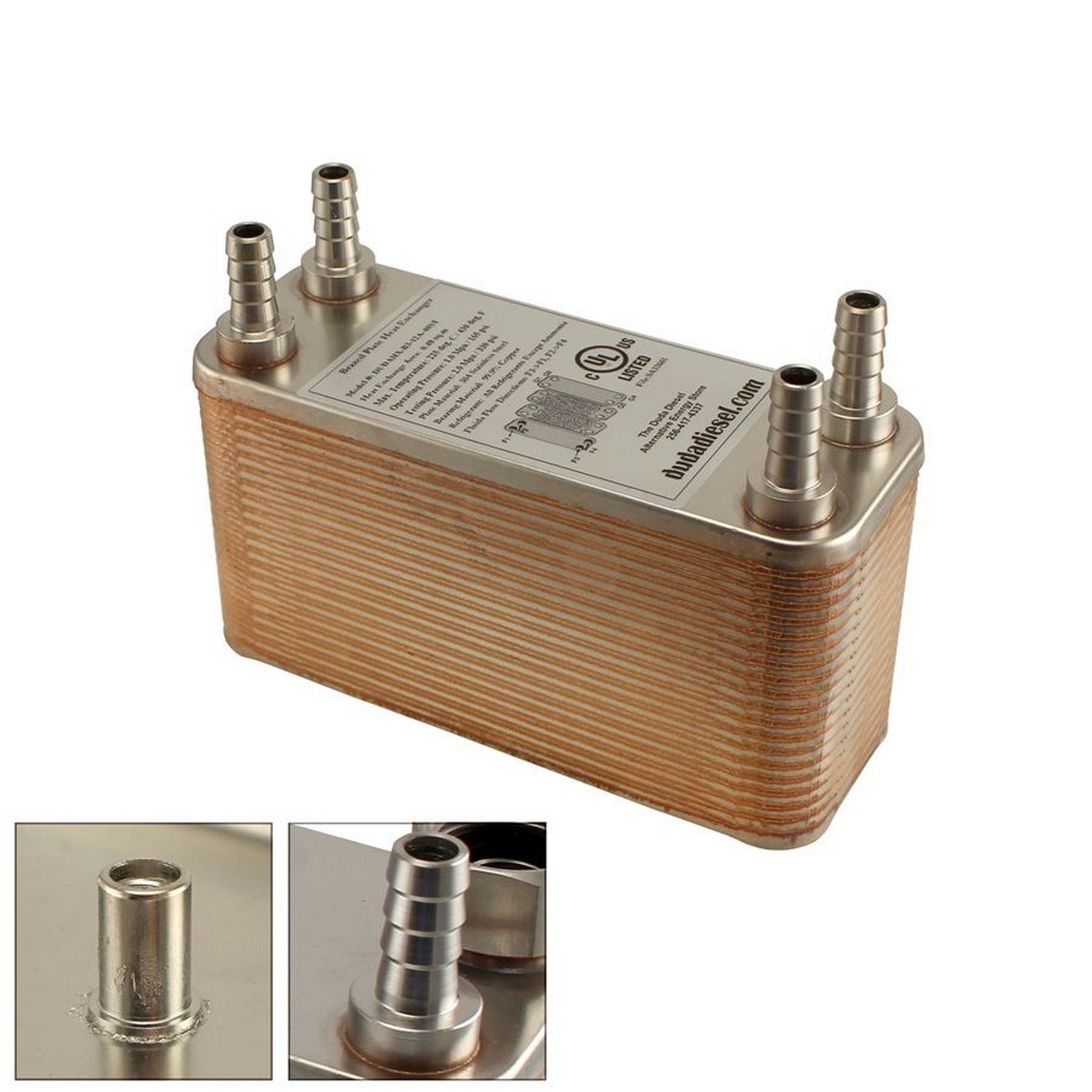

40 Plate Brazed Heat Exchanger - 1/2" Barbs - B3-12A-40ST - 7.5"

The B3-12A-40ST (40 Plate Wort Chiller) - 1/2" Hose Barb (7 1/2") is a high performance chiller, saving you water and time. It has integrated 1/2" Hose Barbs that are welded directly into the unit making hooking up a breeze. The 1/2" Hose Barbs are made to allow easy connections to any tubing with an inner diameter of 1/2".

---

Specifications:

• Part # B3-12A-40ST
• UL Listed
• Made out of 304 Stainless Steel
• 99.9% Copper Brazing
• Heat Exchange Surface Area: 744 square inches
• Max Temperature: 225C/430F
• Max Flow Rate: 18 GPM
• 40 Plate
• 1/2" OD Barb Connections
• Fluid Flow Directions: F3 to F1, F2 to F4

Dimensions:

• 7 1/2" Length
• 2 3/4" Width
• 3 5/8" Height
