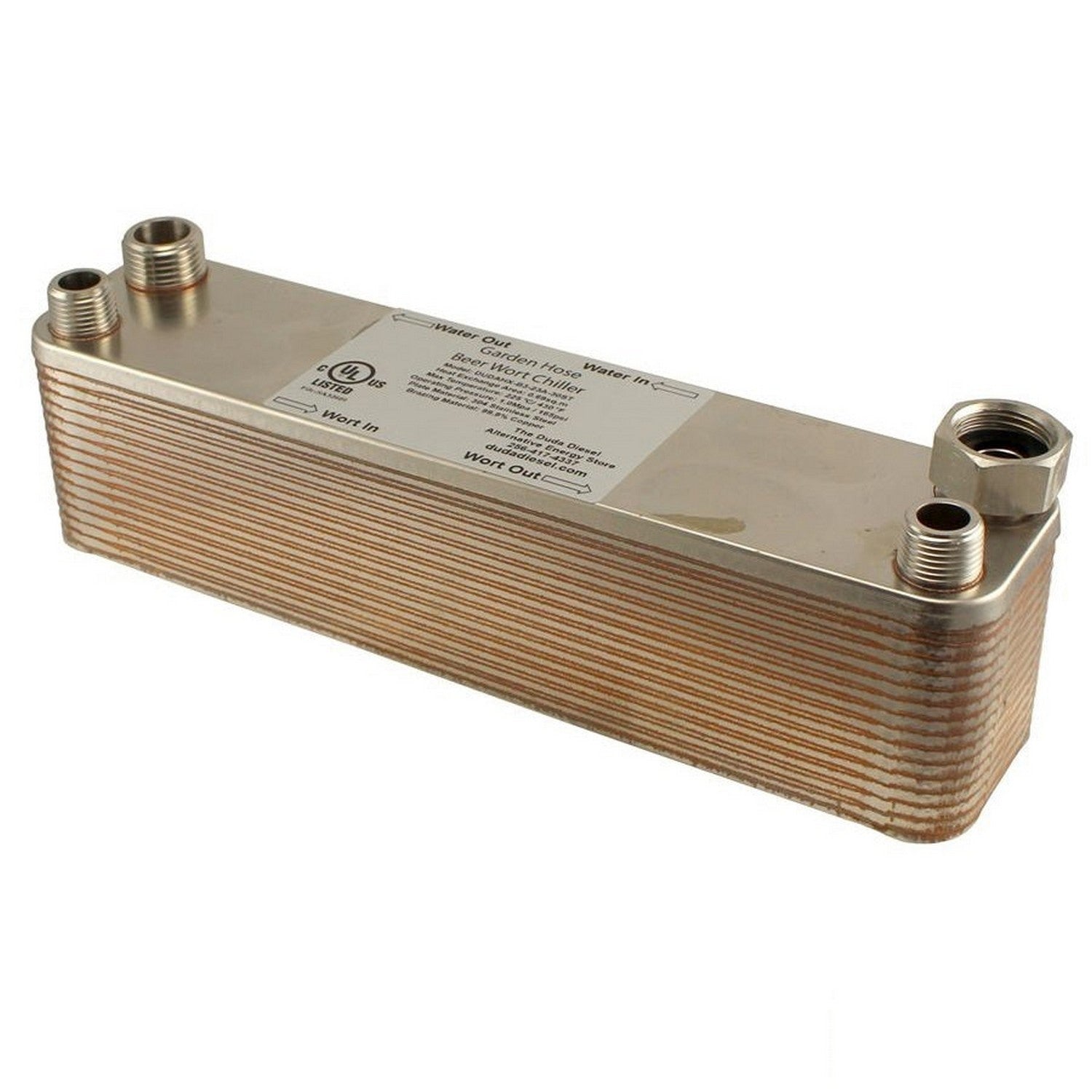

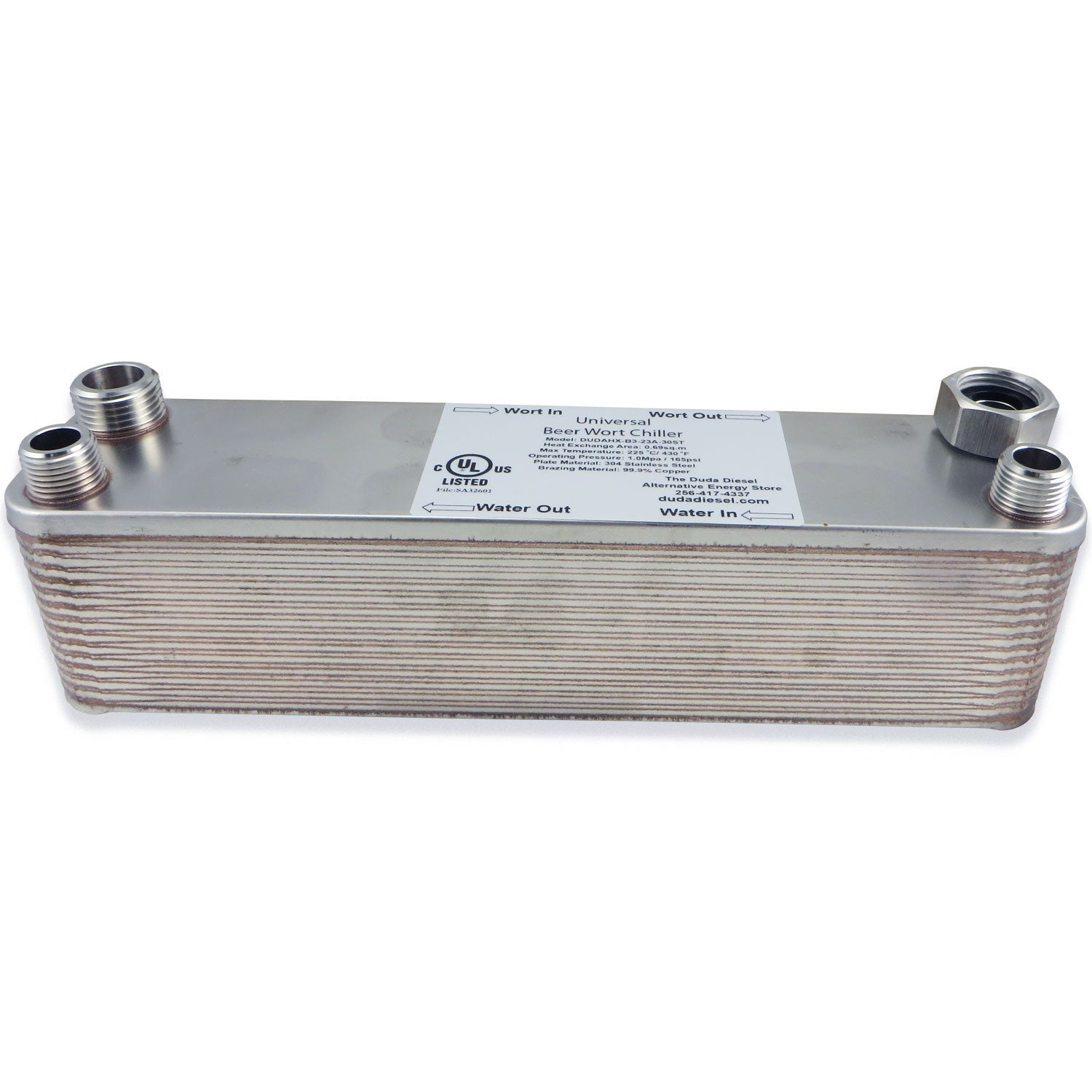

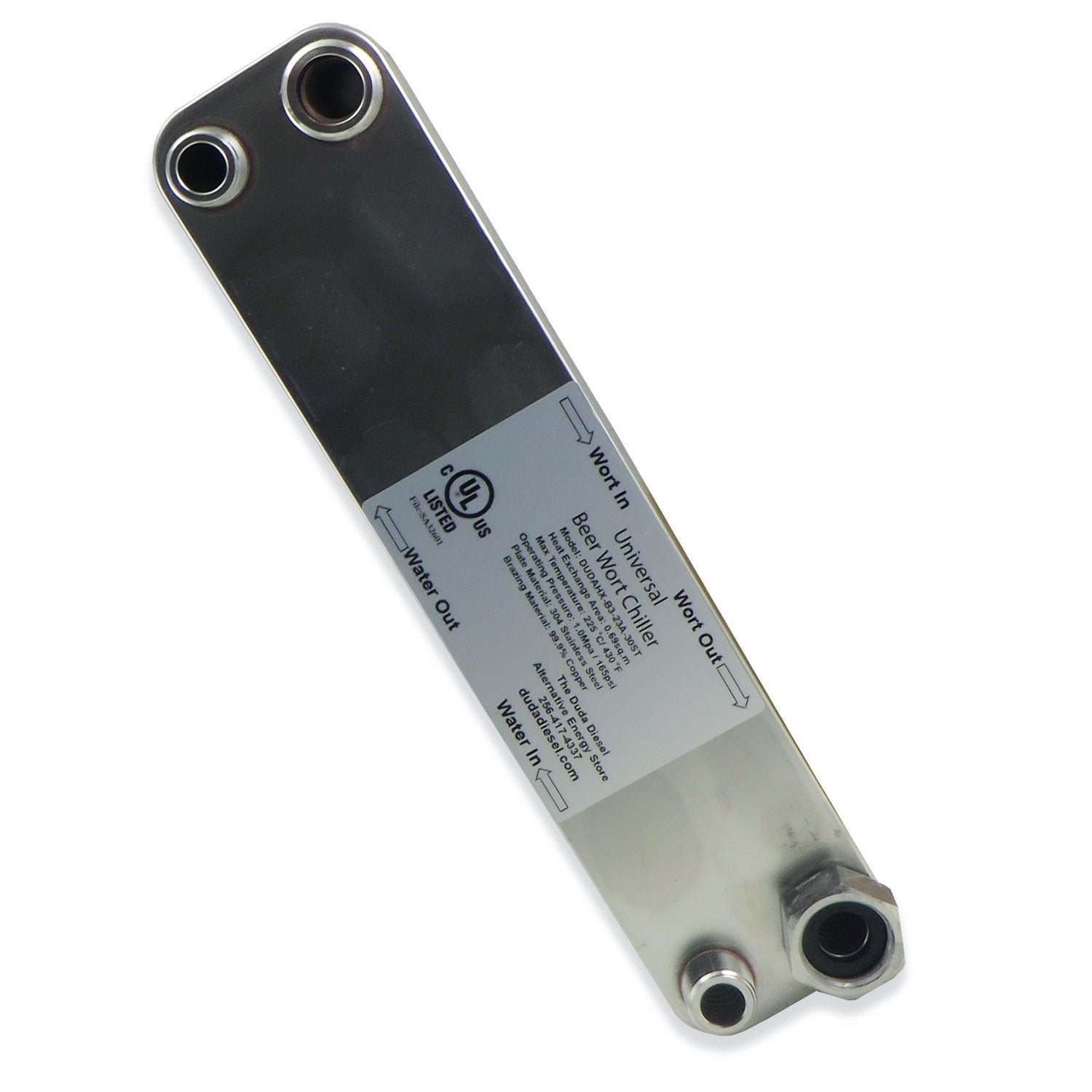

30 Plate Brazed Heat Exchanger - Garden Hose x 1/2" Male NPT - B3-23A-30ST - 12in

This B3-23A-30ST (30 Plate Wort Chiller) - Garden Hose x 1/2" Male NPT (12 1/4") is a high performance chiller, saving you water and time. It has integrated garden hose fittings that are welded directly into the unit making hooking up a breeze. There is one male and one female garden hose fitting on the unit, one at each end. Intending for you to hook the female end up to your faucet, while the male end is meant to be connected to another hose to allow for the heated water to exit the exchanger. The 1/2" Male NPT connections are made to allow easy connections to standard 1/2" Female NPT fittings.

---

Specifications:

• Part # B3-23A-30ST
• UL Listed
• Made out of 304 Stainless Steel
• 99.9% Copper Brazing
• Heat Exchange Surface Area: 1069.5 square inches
• Max Temperature: 225C/430F
• Max Flow Rate: 12 GPM
• 30 Plate
• 3/4" Female Garden Connections
• 1/2" Male NPT Connections
• Integrated mounting hardware for easy installation (M8-1.25, 5/16")
• Fluid Flow Directions: F3 to F1, F2 to F4

Dimensions:

• 12 1/4" Length
• 2 3/4" Width
• 2 7/8" Height
