20 Plate Brazed Heat Exchanger - Garden hose x 3/4" Tri-Clamp - B3-36A-20ST

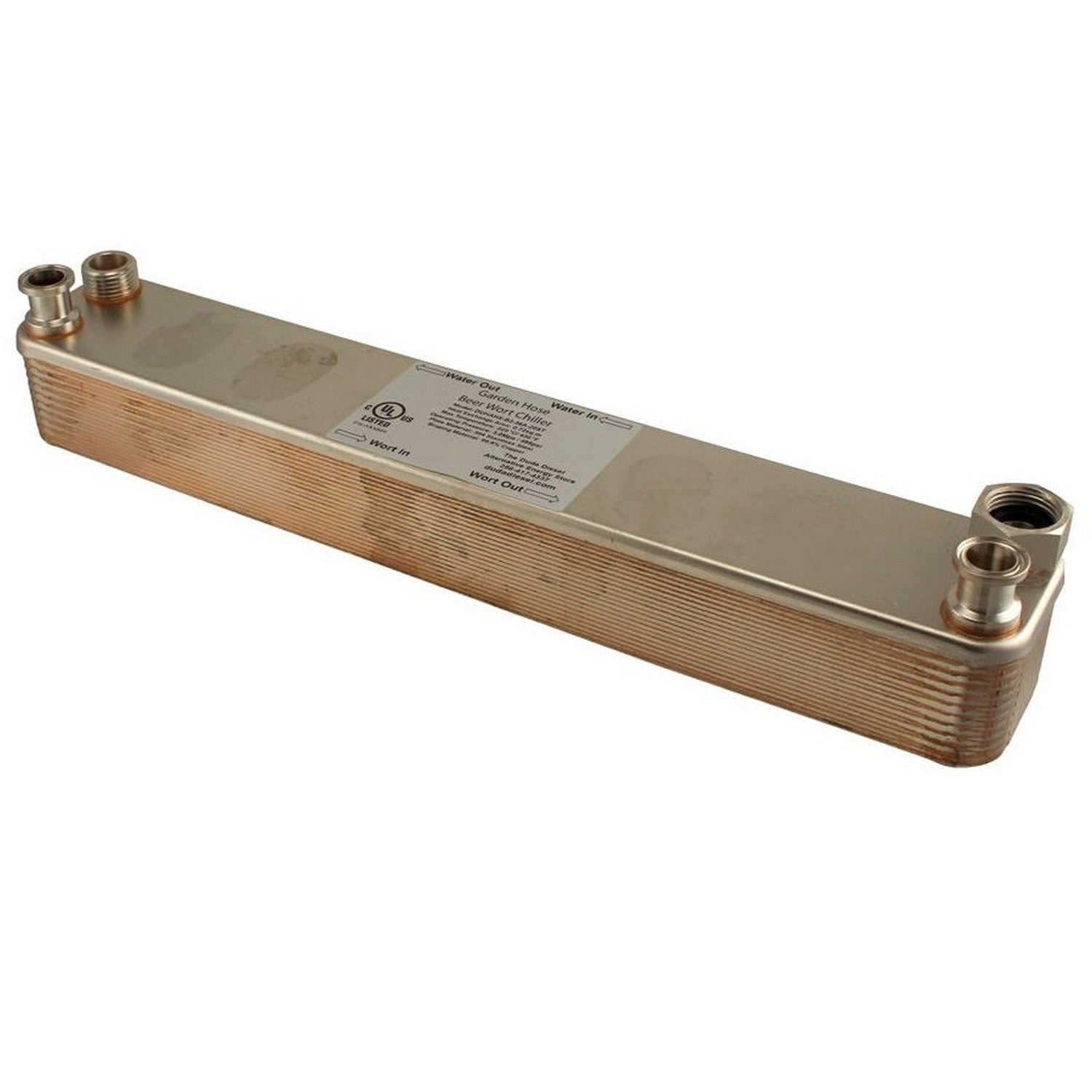

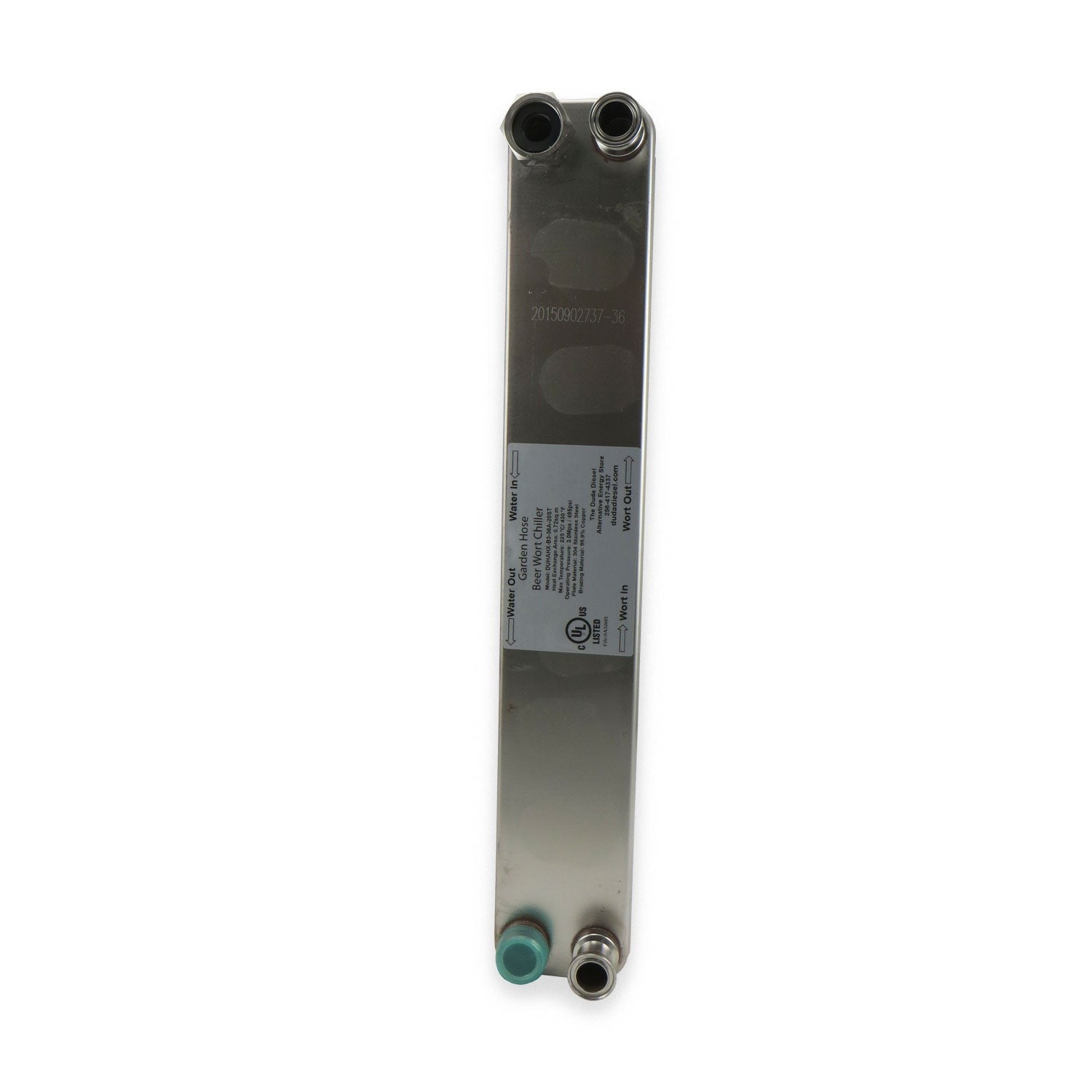

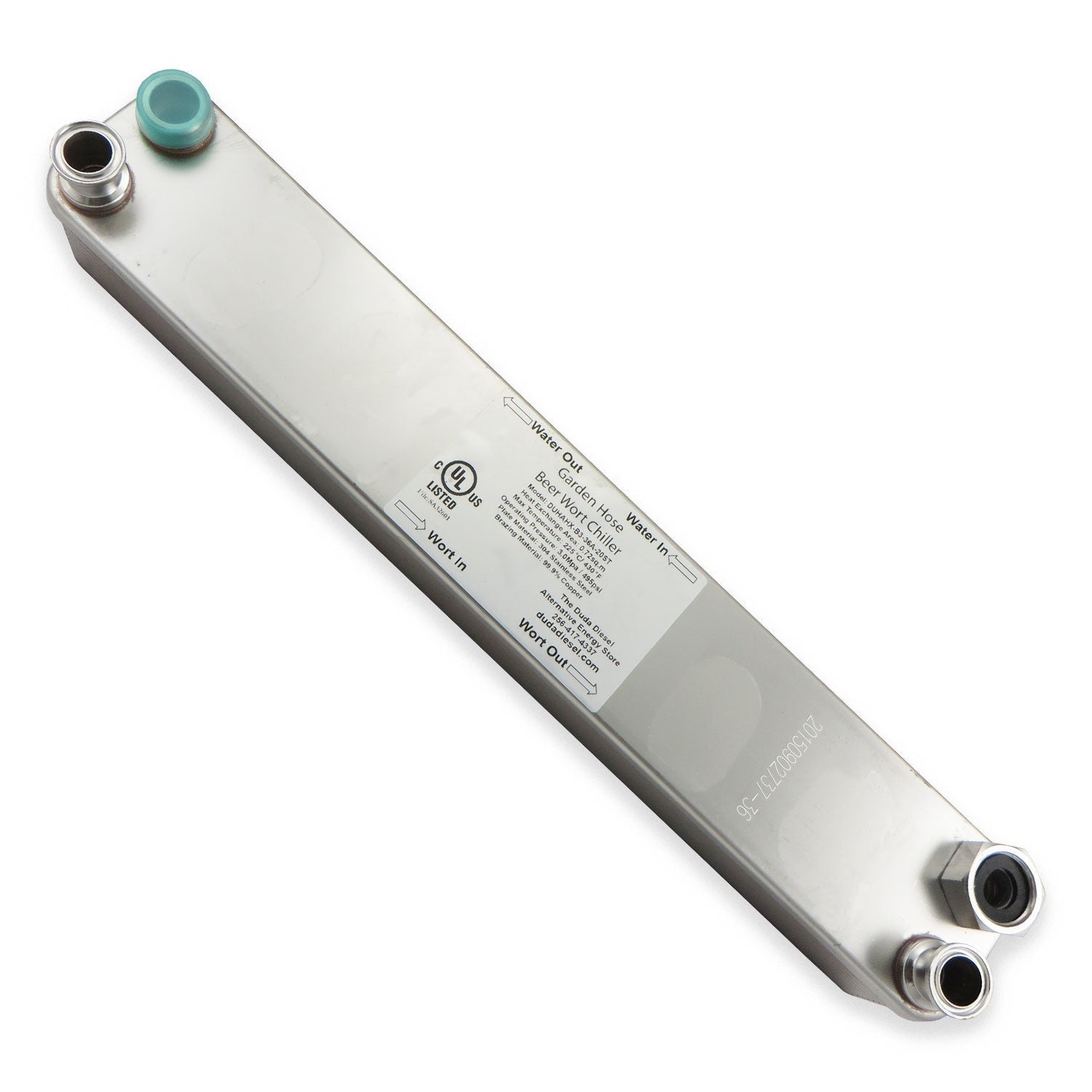

The B3-36A-20ST (20 Plate Wort Chiller) - Garden Hose x 3/4" Tri-Clamp (18 3/8") is a high performance chiller, saving you water and time. It has integrated garden hose fittings that are welded directly into the unit making hooking up a breeze. There is one male and one female garden hose fitting on the unit, one at each end. Intending for you to hook the female end up to your faucet, while the male end is meant to be connected to another hose to allow for the heated water to exit the exchanger. In addition there are two 3/4" Tri-Clamp hook ups that are welded right into the unit, allowing you to hook up any standard 3/4" TC hardware.

---

Thread Type*: Garden Hose Thread (GHT)

*When purchasing threaded hardware, it's crucial to verify that you are selecting the appropriate threaded fittings to meet your requirements.

---

Specifications:

• Part # B3-36A-20ST
• UL Listed
• Made out of 304 Stainless Steel
• 99.9% Copper Brazing
• Heat Exchange Surface Area: 1116 square inches
• Max Temperature: 225C/430F
• Max Flow Rate: 18 GPM
• 20 Plate
• 3/4" Female Garden Hose Connections
• 3/4" Tri-Clamp Connections
• Integrated mounting hardware for easy installation (M8-1.25, 5/16")
• Fluid Flow Directions: F3 to F1, F2 to F4

Dimensions:

• 18 3/8" Length
• 2 3/4" Width
• 2 1/4" Height
