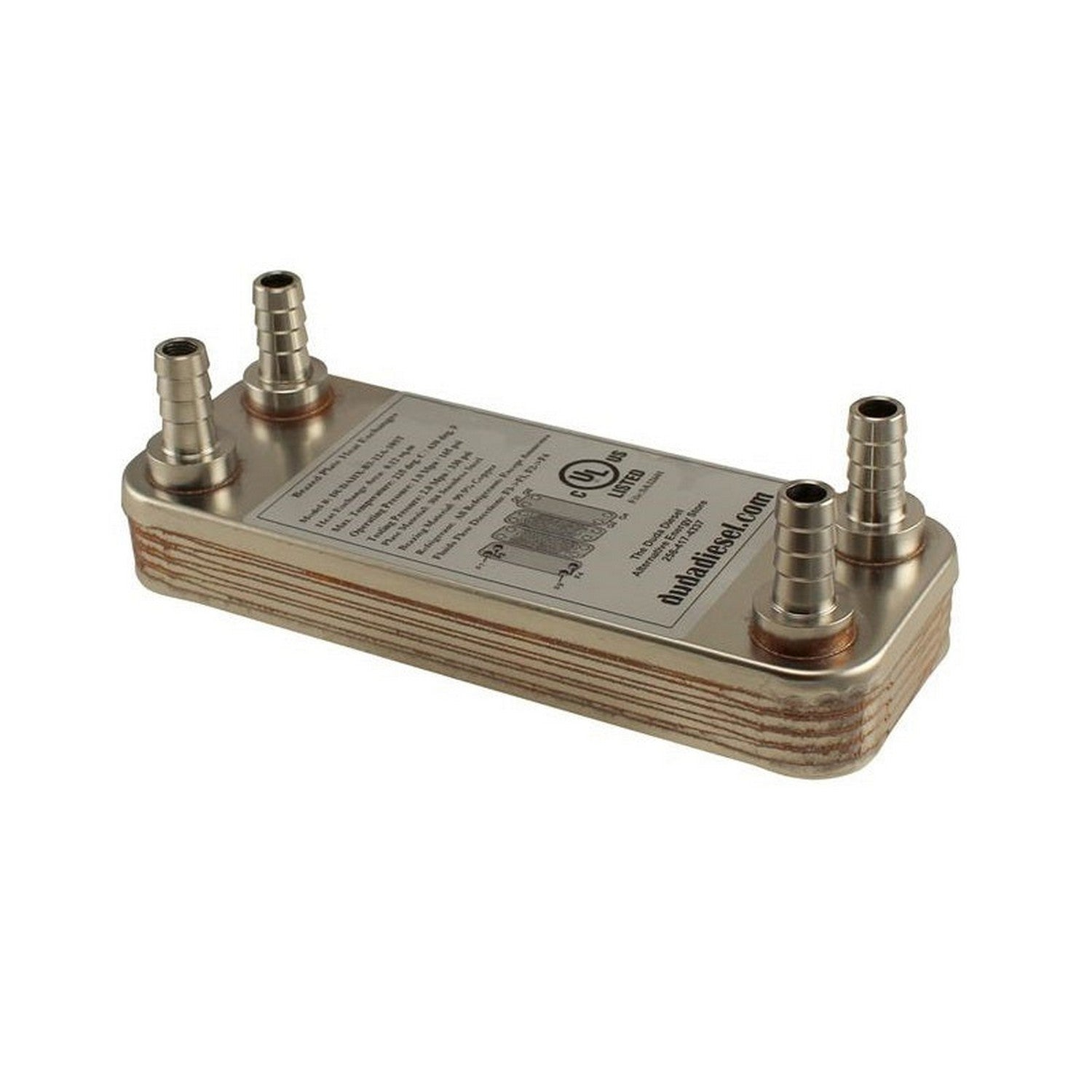

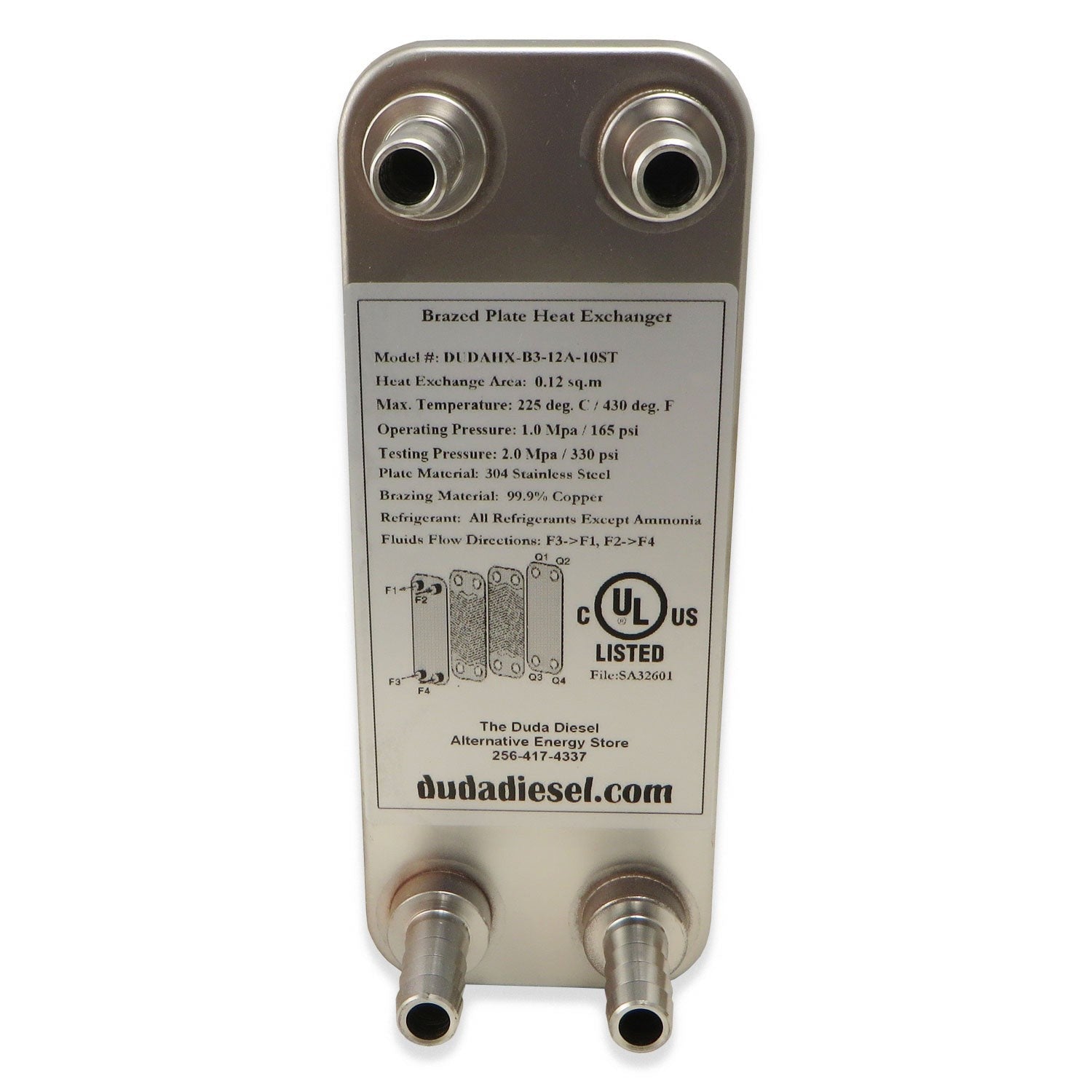

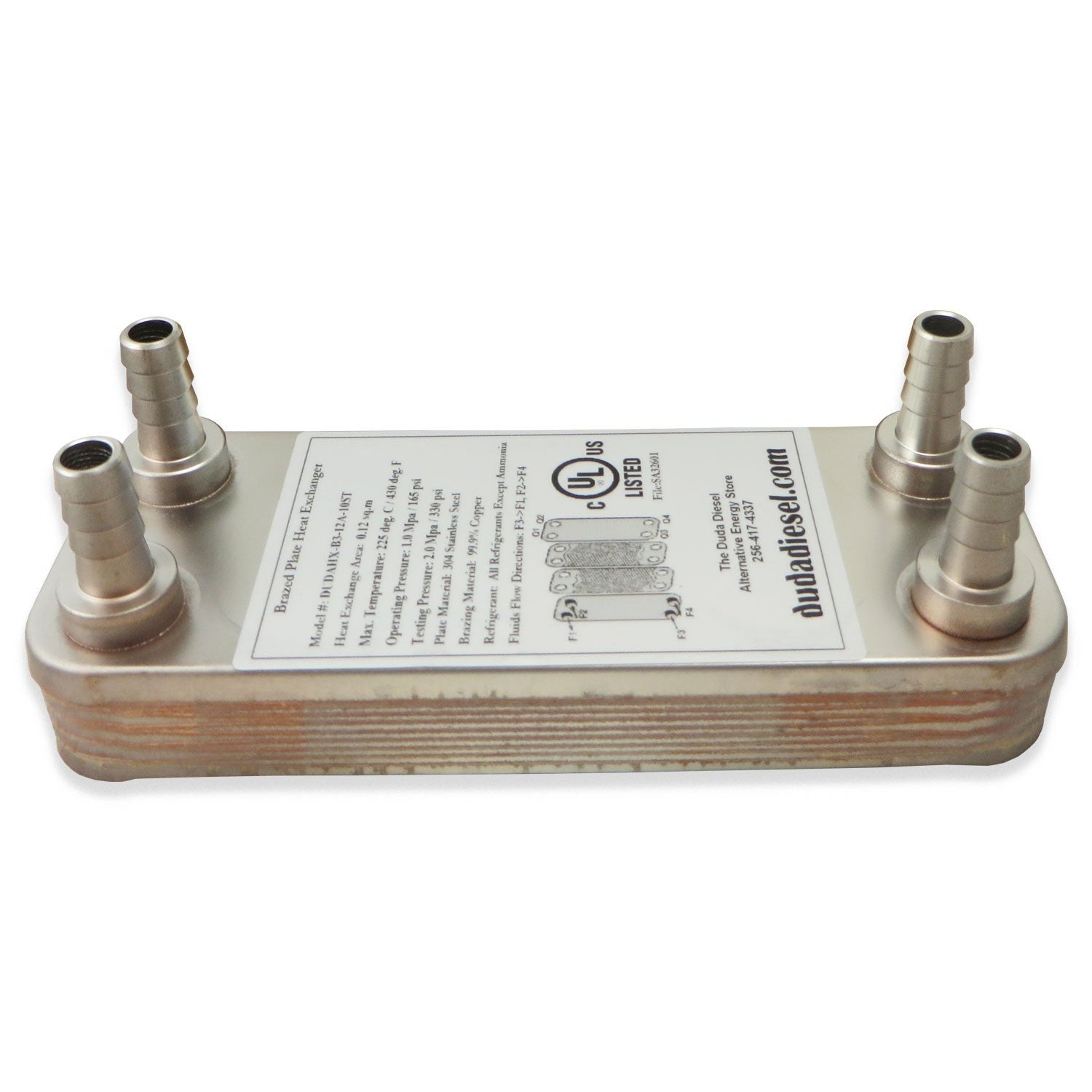

10 Plate Brazed Heat Exchanger - 1/2" Barb X 7.5" - B3-12A-10ST

The B3-12A-10ST (10 Plate Wort Chiller) - 1/2" Hose Barb (7 1/2") is a high performance chiller, saving you water and time. It has integrated 1/2" hose barbs that are welded directly into the unit making hooking up a breeze. The 1/2" hose barbs are made to allow the use of any tubing with an inner diameter of 1/2".

---

Specifications:

• Part # B3-12A-10ST
• UL Listed
• Made out of 304 Stainless Steel
• 99.9% Copper Brazing
• Heat Exchange Surface Area: 186 square inches
• Max Temperature: 225C/430F
• Max Flow Rate: 6 GPM
• 10 Plate
• 1/2" OD Barb Connections
• Fluid Flow Directions: F3 to F1, F2 to F4

Dimensions:

• 7 1/2" Length
• 2 3/4" Width
• 1" Height
