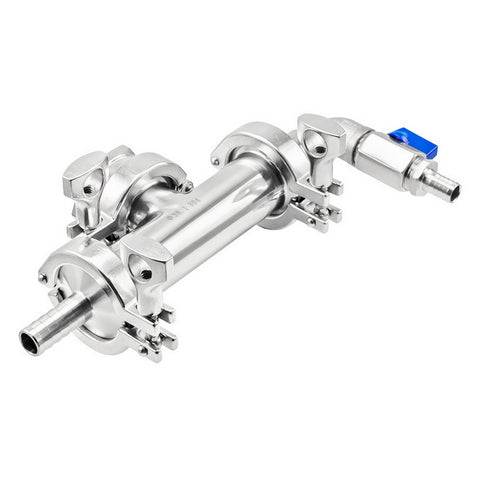

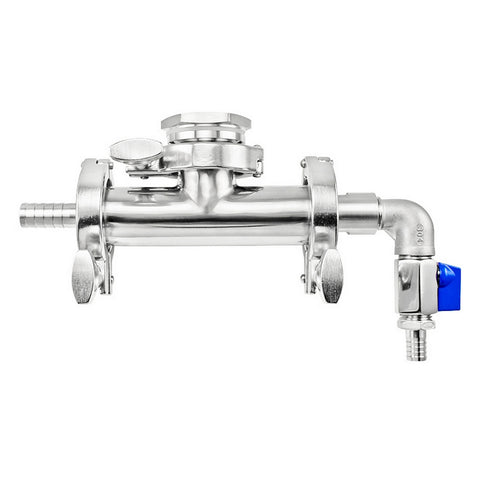

Stainless Steel Tri-Clover Steam Condenser Assembly - 1.5" TC

The Steam Condenser Assembly is constructed from 304 stainless steel and food-grade silicone. All the included parts are either Tri-Clover or NPT, allowing for easy assembly and disassembly for quick cleaning and system modifications. Its purpose is to facilitate the efficient collection of moisture during the brewing process. This is especially crucial in electric brewing systems that are stored indoors or in confined spaces.

When brewing under these circumstances, brewers often encounter difficulties in dealing with the steam produced, especially during the boiling stage. While installing fans may be a solution, not everyone has the means to do so. For those seeking an alternative, this steam condenser is ideal for their brewing system. Having an effective solution to handle steam is essential to prevent moisture buildup on walls and ceilings, which could potentially lead to mold issues.

Please note: Assembly is required.

Comes with:

• 1.5" TC X 1/2" Female NPT Stainless Steel Tri-Clover Misting Nozzle (4.92 LPM | 42 PSI Water Pressure)
• 1.5" TC Stainless Steel Tri-Clover Instrument Tee
• 1.5" TC Stainless Steel Tri-Clover Weldless Bulkhead Fitting
• 1.5" TC X 1/2" OD Barb Stainless Steel Tri-Clover Fitting
• 1.5" TC Stainless Steel Tri-Clover Clamps
• 1/2" NPT Stainless Steel Street Elbow
• 1/2" Male NPT X 1/2" Female NPT Stainless Steel Mini Ball Valve
• 1/2" Male NPT X 1/2" OD Barb Stainless Steel Fitting
• 1.5" TC Silicone Tri-Clover Gaskets

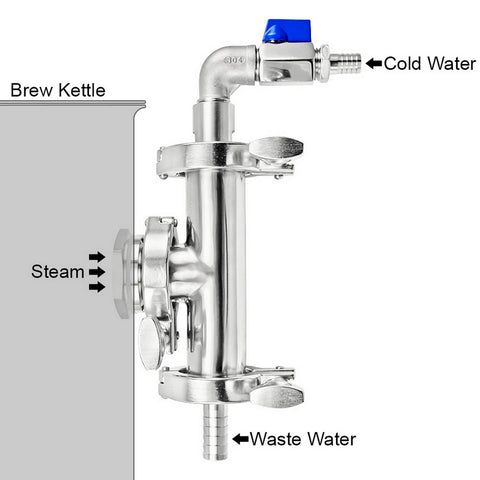

Installation Instructions:

1. Drill a 41mm hole into the side of your brew kettle. It should be installed on the top side of your kettle.
2. Mount the Steam Condenser.
3. Connect a cold water supply to the condenser. To optimize the boil-off rate and enhance the misting nozzle's performance, we recommend using a 12V circulation pump.
4. Attach a drain tube for the hot waste water.
