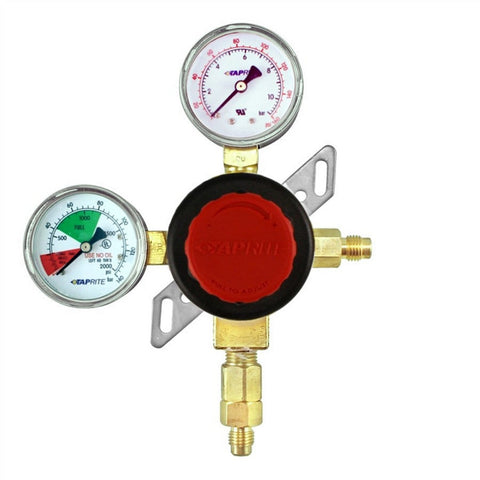

Taprite Primary High Pressure CO2 Regulator w/ HP Hose (160 & 2000 PSI) [T5741WMHP-6]

This Taprite CO2 regulator features a 1/4" MFL inlet and outlet, accompanied by a high-pressure hose for easy connection between the MFL inlet and a CGA320 tank connection.

With gauges indicating pressure levels of 160 and 2000 PSI, the working pressure of this regulator ranges from 0 to 120 PSI. Additionally, it is equipped with a built-in pressure relief valve that effectively vents pressures ranging from 126 to 134 PSI.

Crafted with a sturdy brass body and a durable zinc bonnet, this regulator is specifically designed to withstand high pressures with ease.

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 126-130 PSIG.
• Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle CO2.
• Polycorbonate Bonnet
• 1/4" Flared Inlet (Left hand thread)

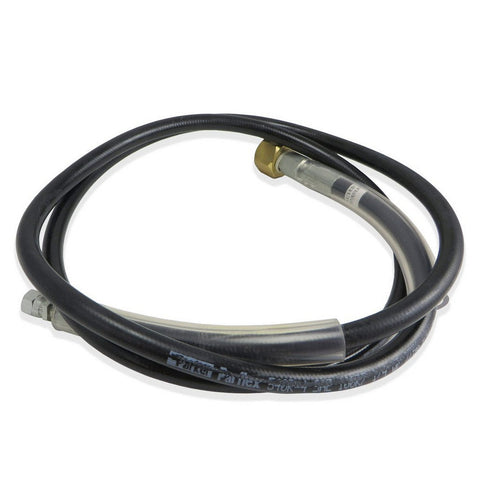

• 6' HP Hose that attaches to CGA320 outlets
• Body parts are 1/4" NPT
• 1/4" male flared outlet (Right hand thread)
• Working Pressure Range 0-120 PSI
• Front loading seat assembly is easily replaceable in the field
• Mounting bracket on each unit
• 0-160 PSI low pressure gauges (Right Hand Thread)
• 0-2000 PSI high pressure gauge (Left Hand Thread)

Dimensions:

• 7 5/8" Wide
• 7 1/2" Tall
