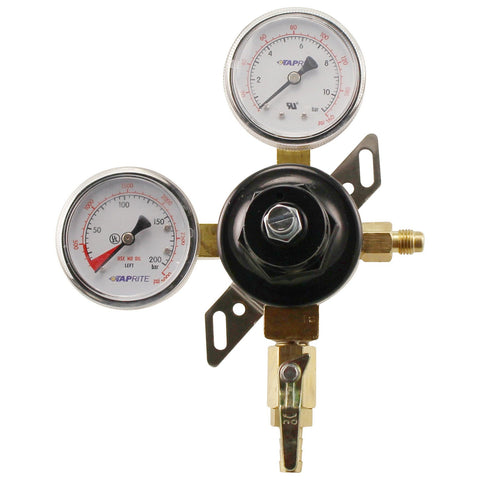

Taprite Primary Nitrogen Regulator (160 & 3000 psi) #5741WMHPNT-6
This Taprite high-pressure regulator features gauges measuring 160 PSI and 3000 PSI, specifically designed for the utilization of Nitrogen or Argon.
Perfect for dispensing Nitro beer varieties, such as stouts, or for purging kegs using a neutral gas for winemaking purposes.
Equipped with a 1/4" MFL inlet and a 5/16" barbed outlet equipped with a check valve.

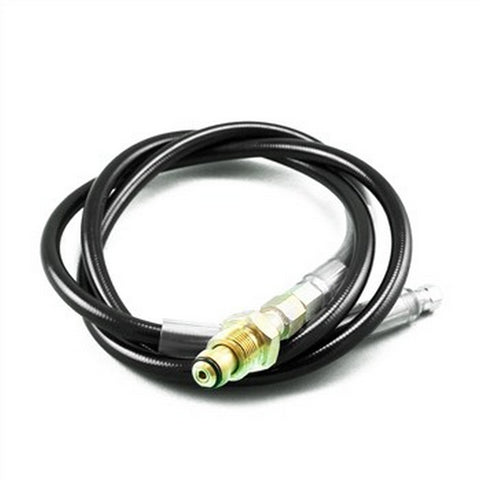

Includes a 6" high-pressure gas hose featuring a CGA 580 fitting, as well as a 1/4" FFL fitting for easy connection to the regulator. A convenient mounting bracket is also provided.
Specifications:
- To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 126-130 PSIG.
- Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
- Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Nitrogen, Argon and blended Beer gas.
- Durable Zinc Bonnet will not strip or break like polycorbonate (plastic)
- 1/4" Flared Inlet (Left hand thread)
- 6' HP Hose that attaches to CGA580 outlets
- Body parts are 1/4" NPT
- 5/16" OD barb shut off valve with check (Right hand thread)
- Working Pressure Range 0-120 PSI
- Front loading seat assembly is easily replaceable in the field
- Mounting bracket on each unit
- 0-160 PSI low pressure gauges (Right Hand Thread)
- 0-3000 PSI high pressure gauge (Left Hand Thread)
Dimensions:
- 7 5/8" Wide
- 7 1/2" Tall
