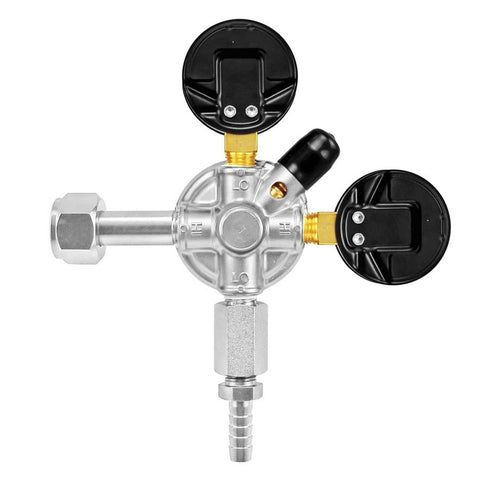

Micro Matic Premium Plus Primary High Pressure CO2 Regulator (160 & 3000 PSI) [942B-PP]

This regulator is tailor-made for demanding high-pressure tasks. From Micro Matic, it comes with gauges that accurately display pressures of up to 160 and an astounding 3000 PSI, with a pressure relief mechanism optimally calibrated between the range of 115 and 125 PSI.

Constructed with a resilient body crafted from chrome plated brass, rest assured that this regulator is built to withstand the test of time.

Take advantage of the ease provided by its CGA320 inlet and make use of the efficient shut-off valve complete with a sturdy 3/8" OD barb outlet.

Warning from Micro Matic:
Only use in a gas blender or nitrogen generator application!

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 115-125 PSIG.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Chrome Plated Finish. Can handle Co2
• Nickel plated valve seat for higher corrosion resistance
• Sintered bronze mesh inlet filter
• Built in CO2 resistant solid nylon inlet seal
• CGA320 Inlet (Left hand thread)
• Body parts are 1/4" NPT
• 3/8" OD barbed gas shut-off valve (Right hand thread)
• Working Pressure Range 0 - 120 PSI
• Front loading seat assembly is easily replaceable in the field
• 0-120 PSI low pressure gauge (Right Hand Thread)
• 0-3000 PSI high pressure gauge (Left Hand Thread)

Dimensions:

• 6 3/4" Wide
• 7 1/4" Tall
