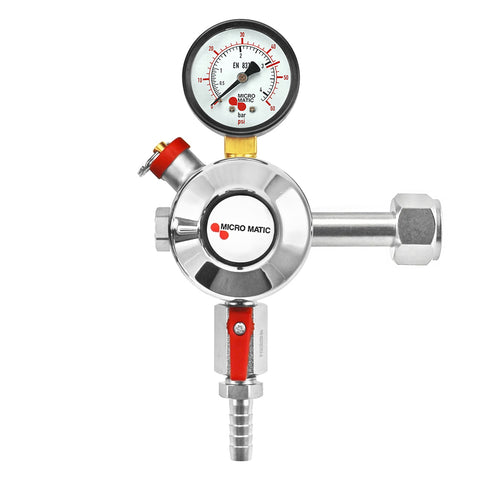

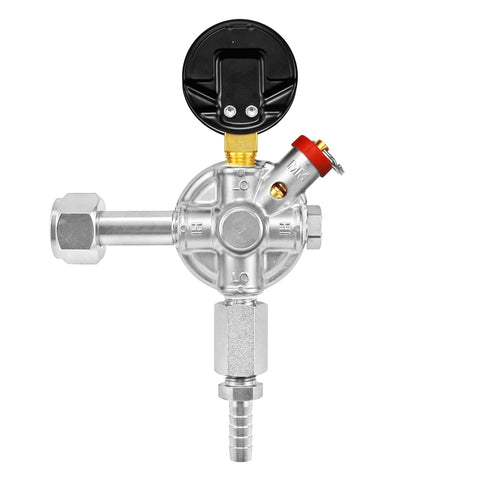

Micro Matic 1-Way Primary 1-Gauge Co2 Regulator (60 PSI) - Premium Plus Series
This is the top-of-the-line 1-Way Primary Low-Pressure Nitrogen Regulator, part of the highly acclaimed Micro Matic Premium Plus Series. This regulator comes equipped with an integrated PRV as well as a safety system that triggers a 'shut down' mechanism when pressure reaches 55 - 65 PSI.
Featuring a sleek Chrome-Plated Brass body, this regulator boasts a single low-pressure gauge displaying a range of 0 - 60 PSI. It is specifically designed to be directly connected to your Nitrogen tank, ensuring smooth and efficient operation.
Specifications:
- To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-65 PSIG.
- Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Chrome Plated Finish. Can handle Co2
- Flow control inlet filter
- Nickel plated valve seat for higher corrosion resistance
- 3/8" OD barbed inlet (Right hand thread)
- Body parts are 1/4" NPT
- 3/8" OD barbed gas shut-off valve (Right hand thread)
- Working Pressure Range 0 - 55 PSI
- Front loading seat assembly is easily replaceable in the field
- 0-60 PSI low pressure gauge (Right Hand Thread)
Dimensions:
- 4 1/2" Wide
- 7 3/8" Tall
