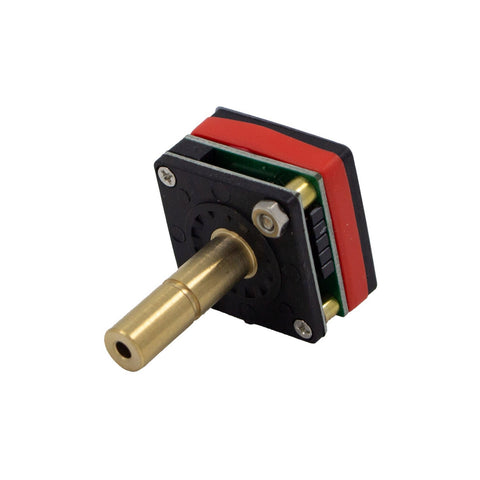

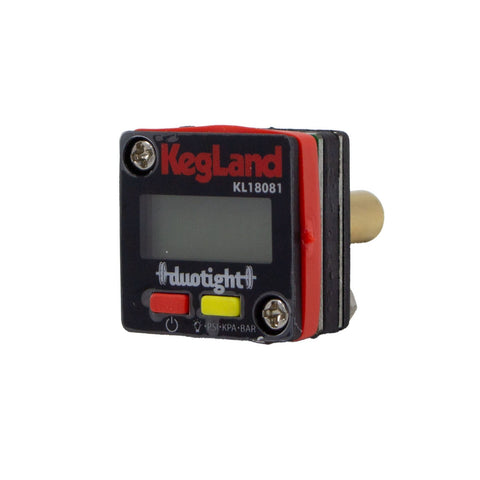

Duotight (Push-In) Digital Mini Pressure Gauge - 5/16" (8mm) (0-90 PSI)

This Duotight Digital Mini Pressure Gauge is a high-quality product that is specifically designed to be used with 5/16" (8mm) Push In fittings. It features a backlit display that accurately measures the output pressure within the range of 0-90 PSI and can display the pressure in PSI, BAR, and KPA units. When selecting a gauge, we recommend choosing one that closely matches your desired pressure setting.

Duotight fittings are engineered to provide quick and hassle-free installation by simply pushing in the compatible tubing. Each fitting contains dual EPDM o-rings, which ensure superior sealing performance thanks to their larger sealing surface area compared to other push-in fittings. This significantly minimizes the risk of leakage and enhances the overall reliability of Duotight fittings.

For optimum performance, it is important to cut your tubing straight rather than at an angle. This ensures a complete and secure seal, further enhancing the functionality of the gauge.

This pressure gauge is specifically designed for use with 5/16" OD (8mm) Polyethylene Tubing.

Please note: This gauge is NOT intended for measuring the pressure of liquids. It is solely designed for measuring gas pressure. Any exposure to liquids can damage the gauge's pressure transducer and will void the return policy.

Specifications:

• Duotight (Push In) Connection
• Backlit Display
• Automatic Screen Turn-Off After 15 Seconds
• Pressure Range: 0-90 PSI
• Pressure Range: 0-6.2 BAR
• Pressure Range: 620 KPA
• CR2032 Batteries Included
• Works with 5/16" OD (8mm) Polyethylene Tubing

Product Code: KL18081
