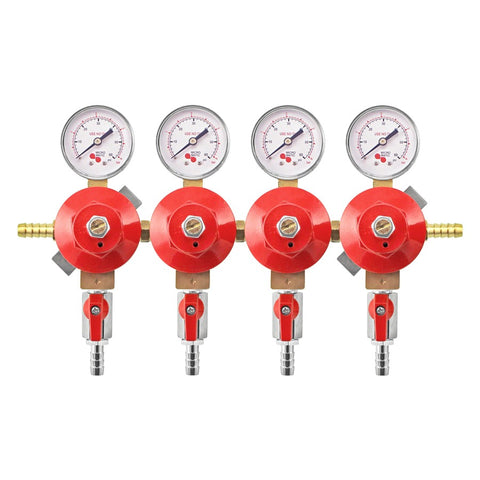

Micro Matic Secondary Quadruple CO2 Regulator (60 PSI) [8044]

Introducing the Micro Matic secondary pass through regulator, equipped with four outputs and gauges.

Featuring gauges that accurately display a pressure reading of 60 PSI, with a pressure relief mechanism expertly calibrated to maintain a range of 55 to 65 PSI.

Designed with convenience in mind, all inlets and outlets boast 3/8" OD barbs, ensuring a secure connection. The outlets are thoughtfully equipped with shut-off valves for effortless control.

Crafted with a combination of robust brass bodies and lightweight aluminum bonnets, this regulator guarantees durability and reliability.

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-65 PSIG.
• Secondary regulators are designed to further reduce pressure from a primary regulator to a proper dispensing level.
• Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Co2
• Flow control inlet filter
• Enlarged CO2 port for high volume
• Aluminum Bonnet
• 3/8" OD barbed inlet (Right hand thread)
• Body parts are 1/4" NPT (Right hand thread)
• 3/8" OD barbed gas shut-off valves (Right hand thread)
• Working Pressure Range 0 - 50 PSI
• Front loading seat assembly is easily replaceable in the field
• Comes with wall mounting brackets
• Includes additional 1/4" Male NPT Hex Plug
• 0-60 PSI low pressure gauges (Right Hand Thread)

Dimensions:

• 12 1/2" Wide
• 7 3/8" Tall
