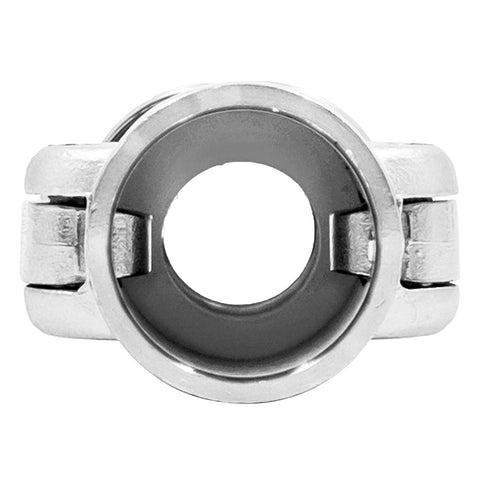

BrewZilla Stainless Steel Female Camlock Fitting - 1/2" Cam. X 1/2" Male BSP (Type B)
✅ In Stock
Crafted from robust 304 stainless steel, this Camlock fitting is engineered to work flawlessly with BrewZilla All-Grain Systems. The female quick-connect design, coupled with an interior silicone seal, provides a secure, leak-proof connection with minimal effort. It's compatible with Type A, E, & F.
Occasionally, you may find the male and female camlocks require a bit more effort to connect. This is often due to manufacturing tolerances that can vary from batch to batch. Even a simple factor like the thickness of the gasket can influence the amount of pressure needed to close the cam arms.
Note Regarding "Fit": The thread type is British Standard Pipe (BSP). Please note that BSP and NPT/NPS threads are not interchangeable. When purchasing threaded hardware, it's essential to ensure you're choosing the correct threaded fittings for your needs.
Specifications:
If you find your mating pair to be difficult to close, consider the following tips:
Occasionally, you may find the male and female camlocks require a bit more effort to connect. This is often due to manufacturing tolerances that can vary from batch to batch. Even a simple factor like the thickness of the gasket can influence the amount of pressure needed to close the cam arms.
Note Regarding "Fit": The thread type is British Standard Pipe (BSP). Please note that BSP and NPT/NPS threads are not interchangeable. When purchasing threaded hardware, it's essential to ensure you're choosing the correct threaded fittings for your needs.
Specifications:
- Constructed from 304 Stainless Steel
- Female Camlock
- Designed for use with 1/2" Female BSP Connections
- 150 PSI (11 BAR) Operating Pressure
- Includes Silicone Seal
- Removable Ring Holders
If you find your mating pair to be difficult to close, consider the following tips:
- Be sure to close both cam arms simultaneously, not one at a time
- While closing the cam arms, push the two fittings together to compress the gasket slightly
- A small amount of lubricant on the cams where the grooves contact helps (anything food grade such as vasoline to keg lube will work)
- Break in the gaskets by leaving the mating pair connected for a few days, making it easier to reconnect in the future
