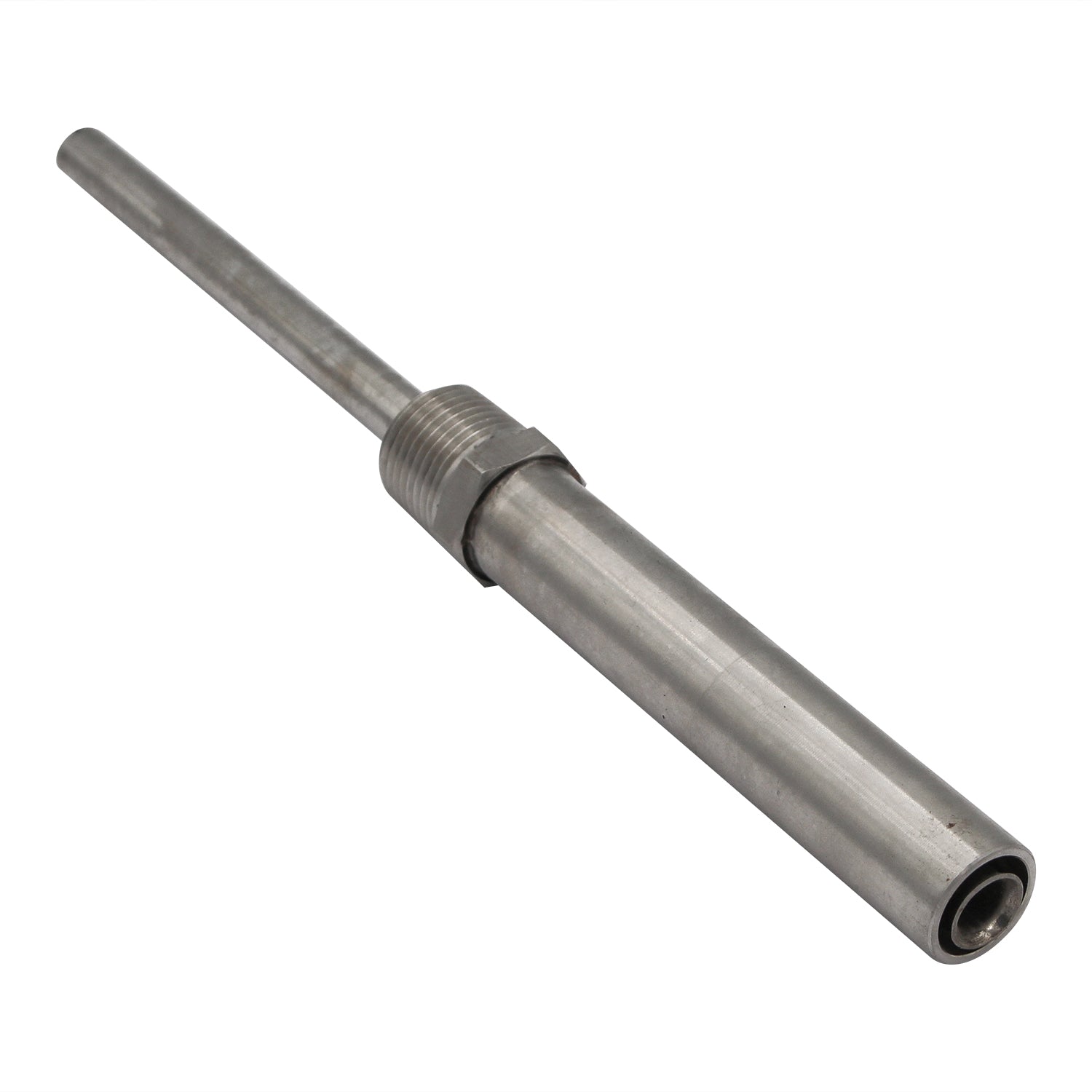

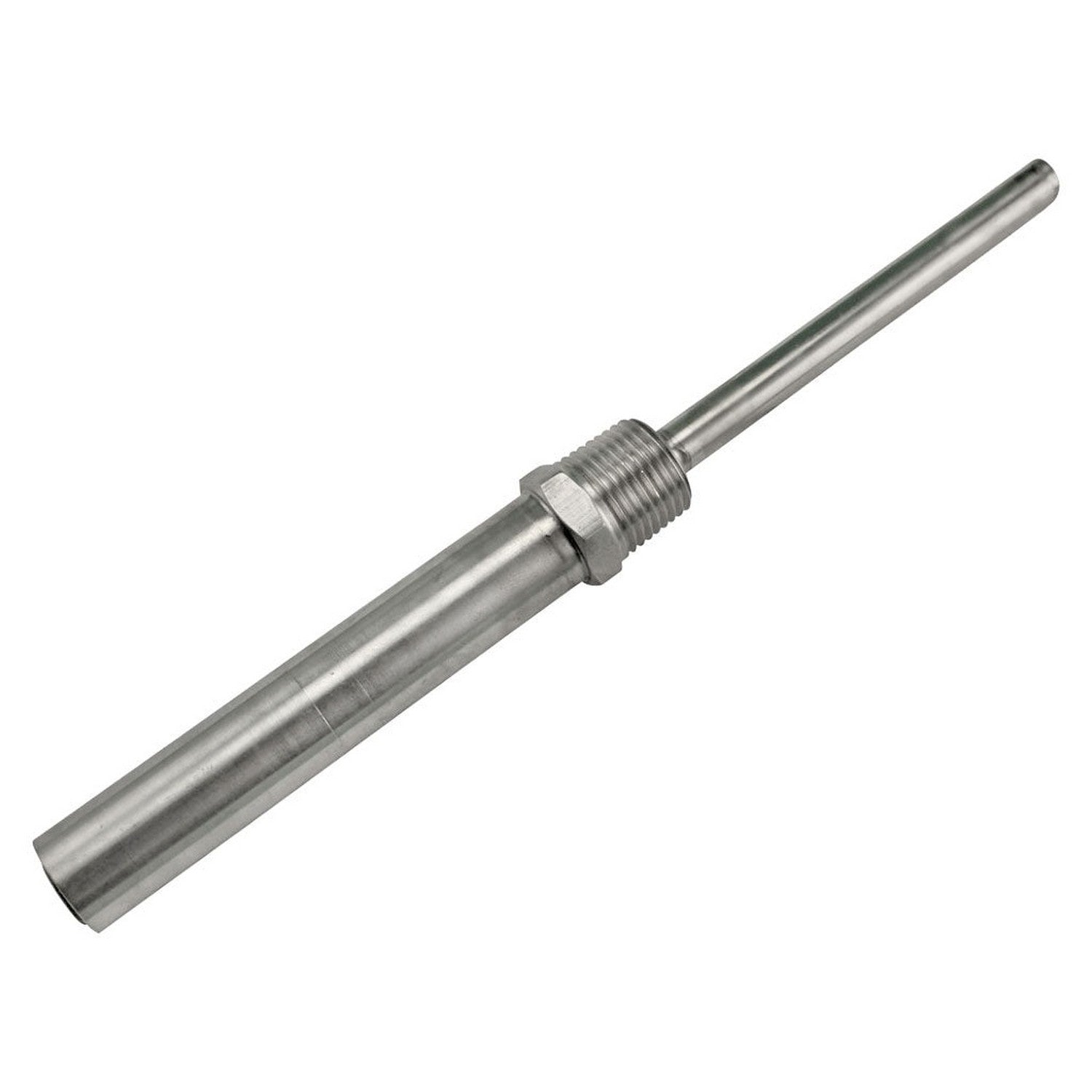

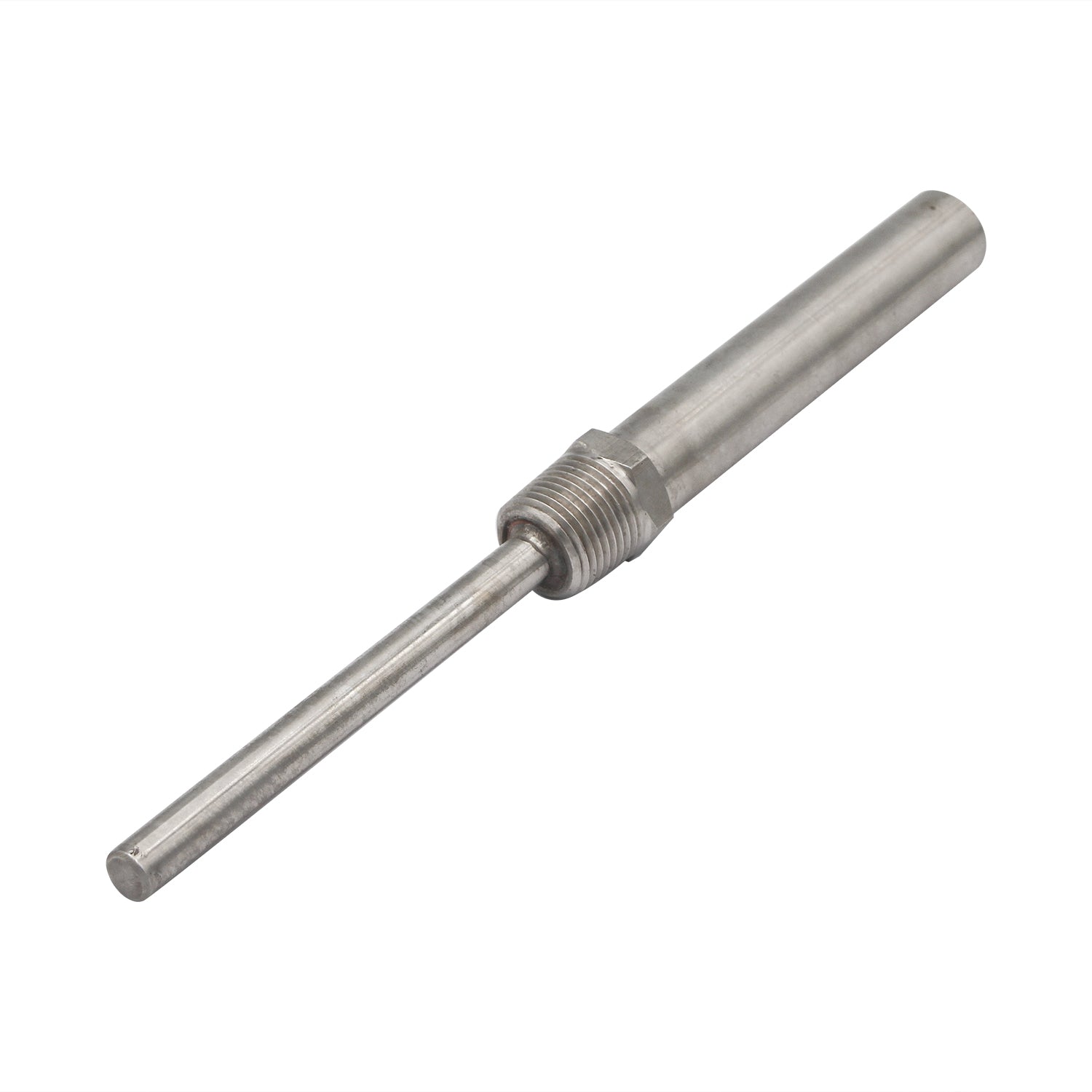

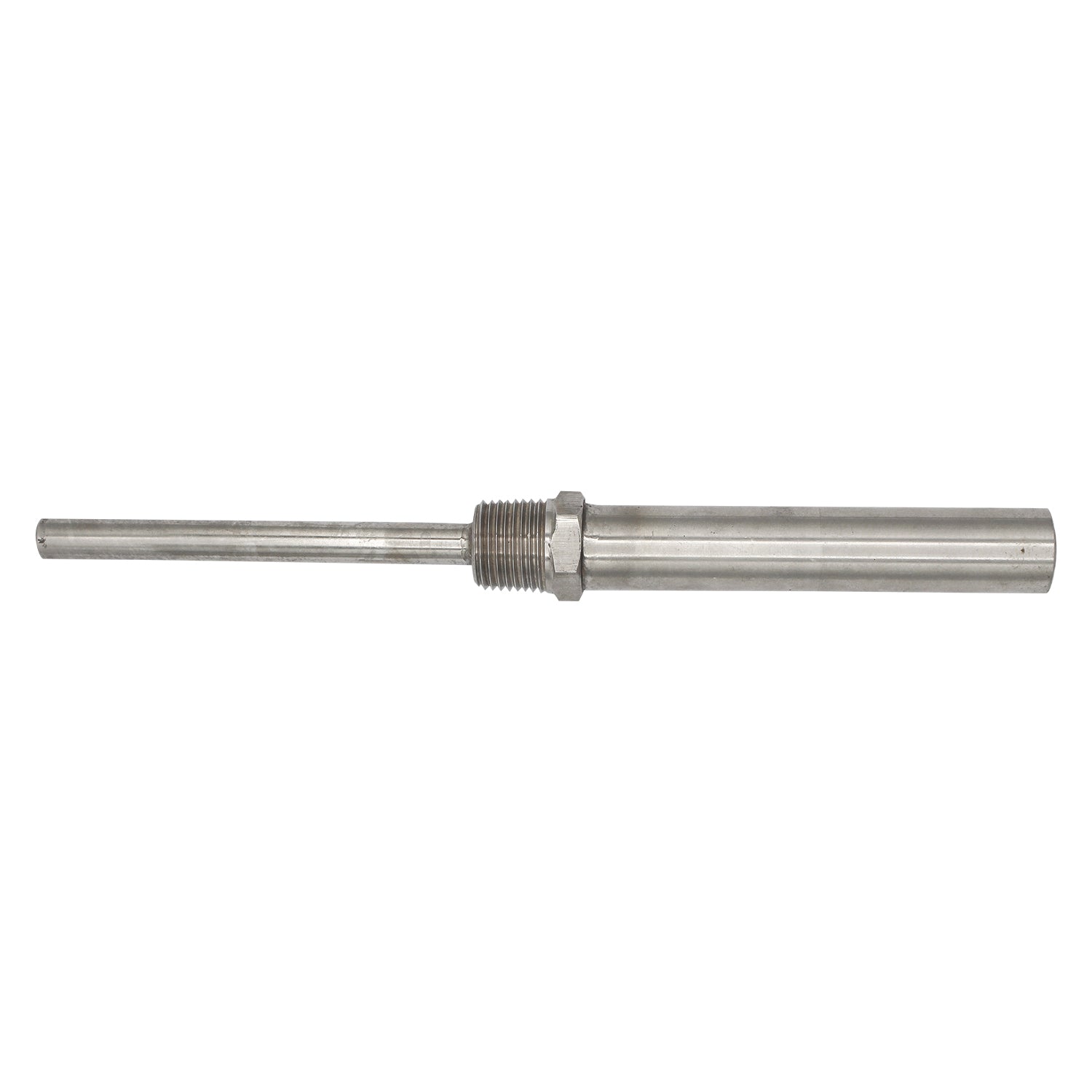

Stainless Steel Thermowell with 1/2" Male NPT Threading and Heat Shield. This thermowell threads into any standard 1/2" female NPT fitting. Features a 5" shielded tube on the outside end as a heat shield, 3/4" outer diameter. This helps protect wires or cables from heat source (such as a burner), also assures accurate temperature reading at the probe end. 4" probe from the face of the threads to the tip assures good reach without too much intrusion.
Thread Type*: National Pipe Thread (NPT)
*BSP and NPT/NPS threads are NOT compatible with each other. When purchasing threaded hardware, it's crucial to verify that you are selecting the appropriate threaded fittings to meet your requirements. Unsure about thread type? Please consult the NPT thread chart HERE. Specifications:
Made out of 304 Stainless Steel
1/2" Male NPT Connection
9" Total Length
3/8" OD Probe
5/16" ID Probe Hole
This item does work with Ranco or Johnson Digital Controls.
