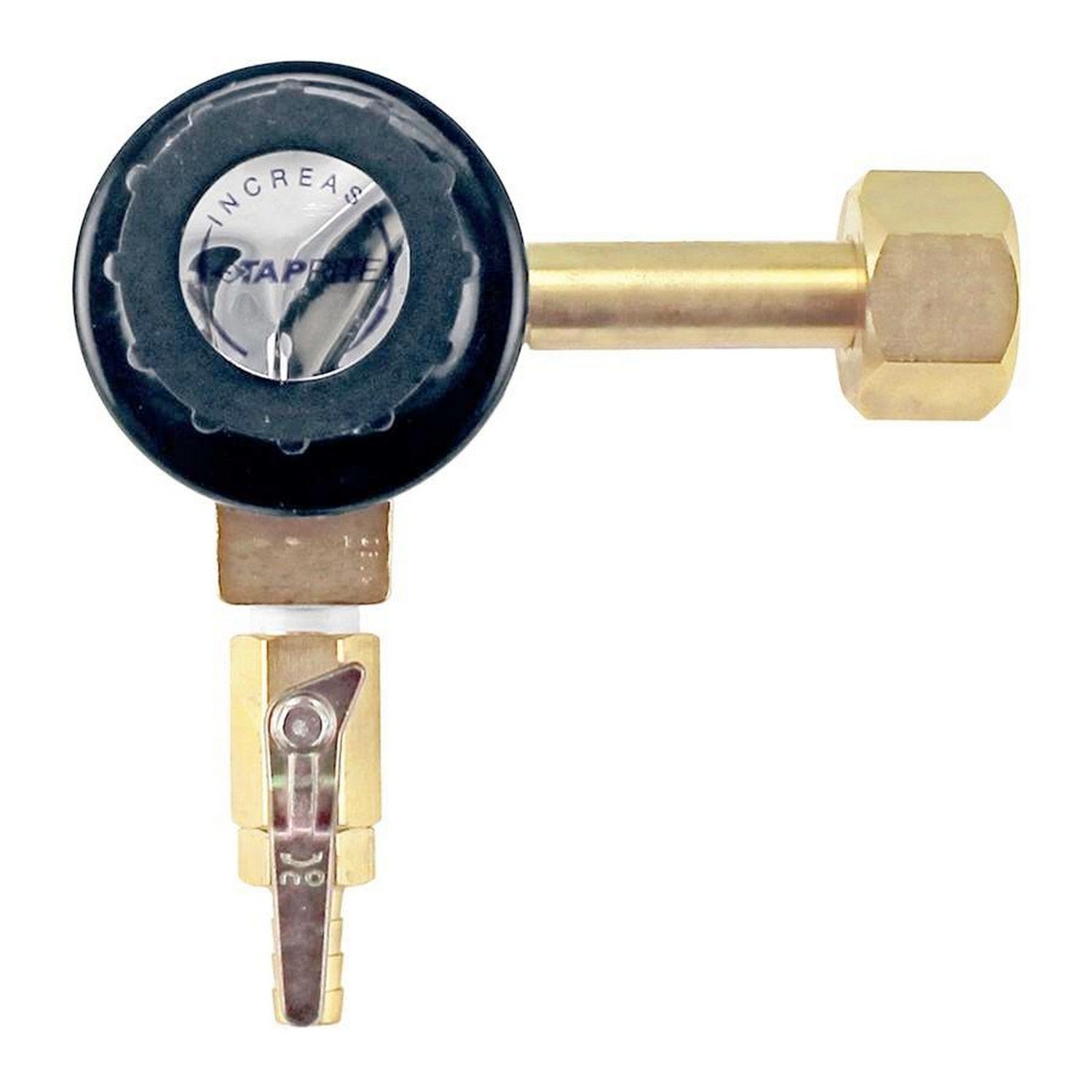

Taprite Jockey Box Regulator (30 to 45 PSI) [FC741H]

Use this gaugeless flow control regulator when dispensing through a jockey box.

The dial has a range of 30 PSI to 45 PSI and a ridged knob, allowing you to easily adjust a low pressure pour. The pressures are labelled on the outside edge of the dial, with an arrow indicating current pressure.

It has a CGA320 inlet, and a 5/16" OD barbed outlet with check valve. The brass body and zinc bonnet are very sturdy, and the gaugeless design makes it compact enough to fit in most any setup.

---

Specifications:

• Low pressure range for dispensing
• Shut-down safety built into the body that instantly protects the dispensing system in the unlikely event of regulator failure or malfunction. Blow-off is factory set at 55-65psig.
• Permanent quad-ring seal on the inlet nipple helps eliminate leaks. No need to use a fiber washer each time tanks are changed.
• Top and left side have 1/4" NPT plugs
