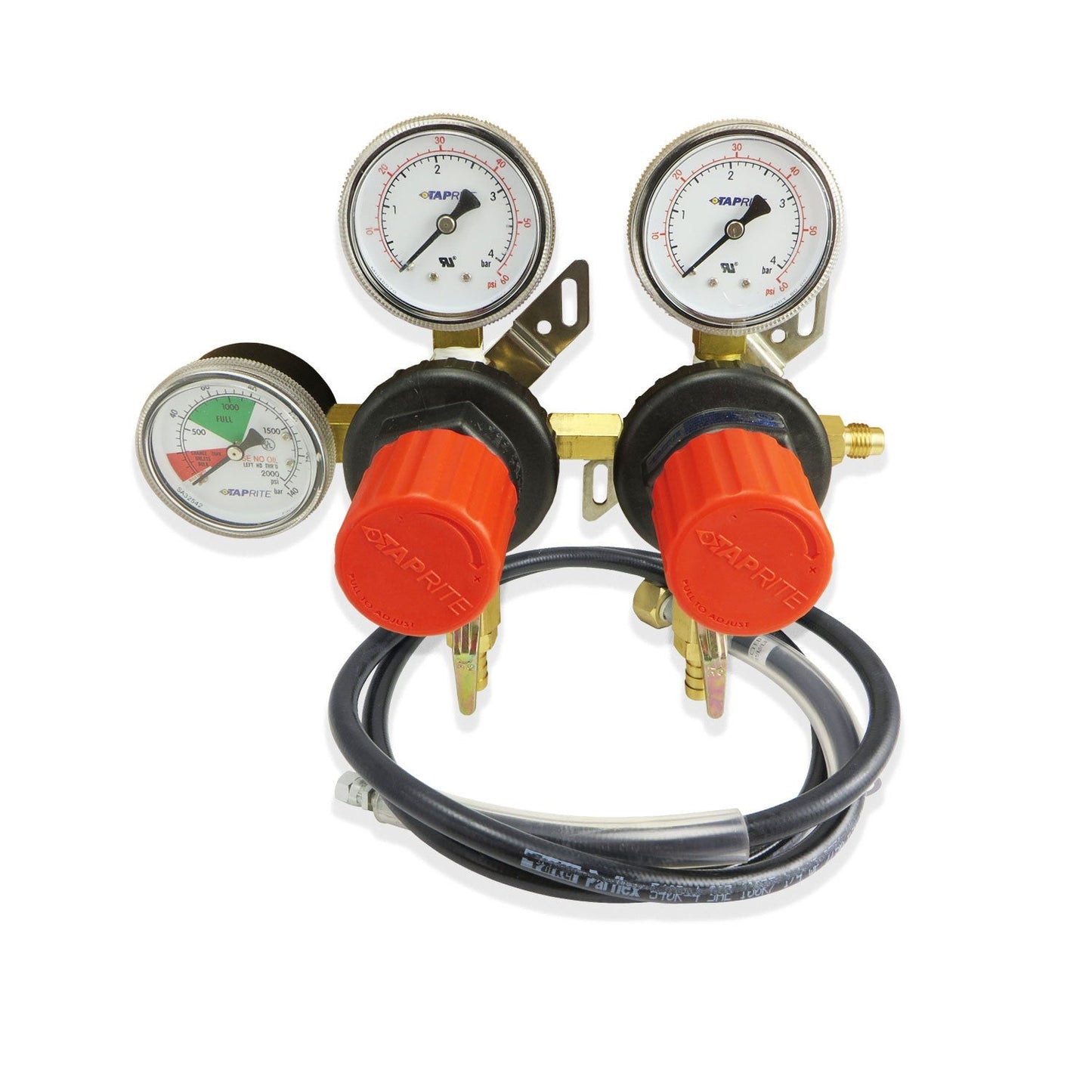

Taprite Dual Primary CO2 Regulator with HP Hose (60PSI & 2000PSI) #T752WMHP-6

Premium Taprite Primary Dual Product CO2 Regulator with Hose. NSF Approved -- Approved for use by all major breweries. Manufactured in the USA.

Solid brass body with extra long nipple. Regulator has "shut down" safety system (blow off at 55 to 60 PSI.) Heavy duty UL rated dual gauges. Left hand (LH) threaded ports with 1/4" Flared Inlet. Included also is a 6' High Pressure 1/4" Female Hose that allows you to attach any CGA320 CO2 connection to this regulator.

The bonnet is made from Polycorbonate. The regulator is approved for CO2.

Features 5/16" OD barb shut off valves with check.

OntarioBeerKegs is an official distributor of Taprite.

---

Specifications:

• To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-60 PSIG.
• The internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
• Forged brass body for greater durability. The body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Co2.
• Polycorbonate Bonnet
• 1/4" Flared Inlet (Left-hand thread)
• Body parts are 1/4" NPT
• 5/16" OD barb shut off valves with check (Right-hand thread)
• Working Pressure Range 0-50 PSI
• The front-loading seat assembly is easily replaceable in the field
• Mounting bracket on each unit
• 0-60 PSI low-pressure gauges (Right-Hand Thread)
• 0-2000 PSI high-pressure gauge (Left Hand Thread)

Dimensions:

• 9 1/2" Wide
• 7 1/2" Tall
