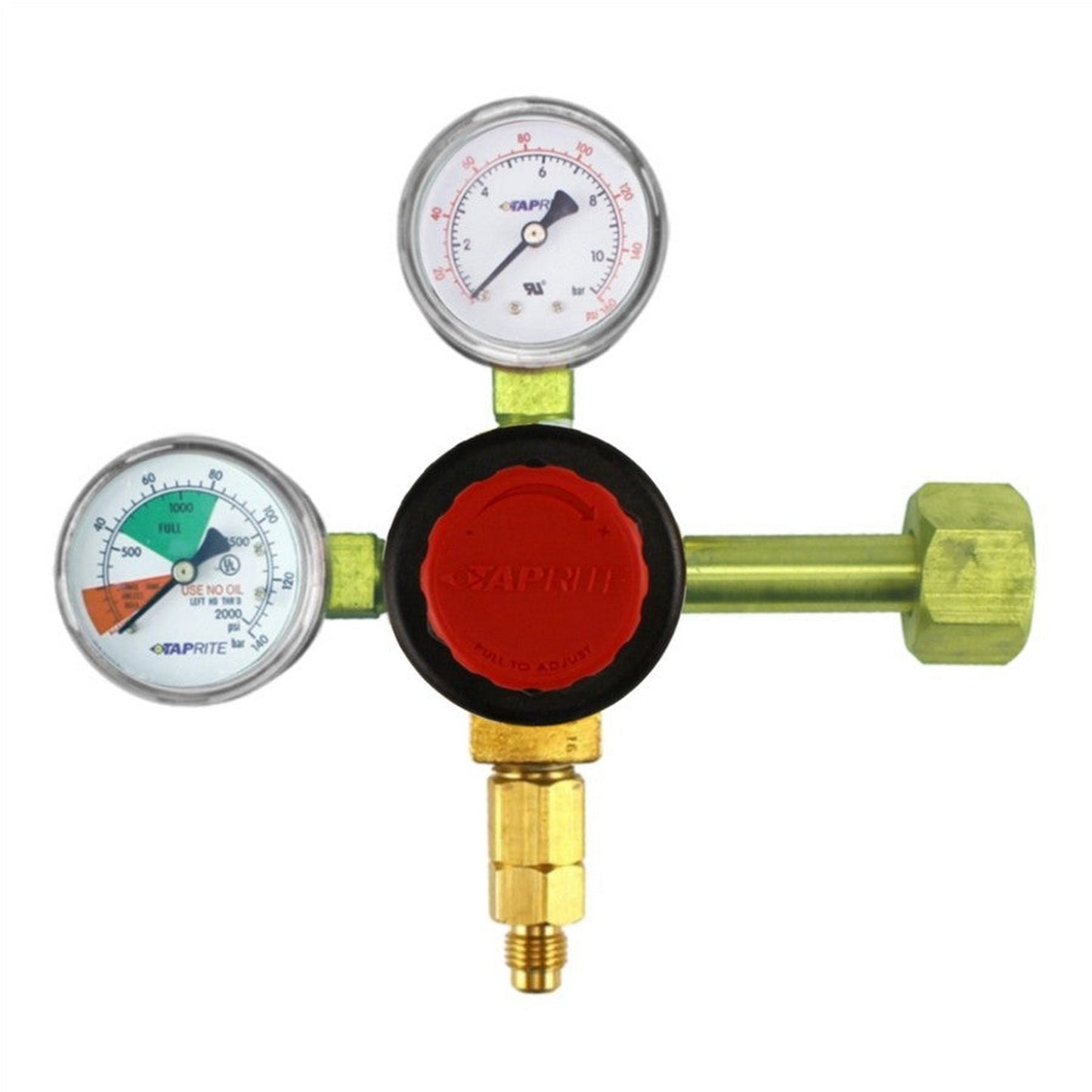

Taprite Primary High Pressure Soda Regulator

Taprite Primary High Pressure Soda Regulator (160 & 2000 PSI) [T5741PMHP]

  • $118.99


The Soda Regulator regulator by Taprite, featuring a CGA320 inlet (left-hand thread) and a 1/4" MFL outlet for optimal functionality features accurate gauges with a range of 0 - 160 PSI and 0 - 2000 PSI, providing precise pressure monitoring for your convenience. The working pressure is carefully designed to operate within the 0 to 120 PSI range, ensuring efficient performance.

Crafted with a durable forged Brass body and a polycarbonate bonnet, this regulator guarantees long-lasting reliability and endurance.

Specifications:

  • To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 126-134 PSIG.
  • Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
  • Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Can handle Co2.
  • Polycorbonate Bonnet
  • Red Cap
  • CGA320 Inlet (Left hand thread)
  • Body parts are 1/4" NPT
  • 1/4" male flared outlet (Right hand thread)
  • Working Pressure Range 0-120PSI
  • Non-removable adjusting screw limits maximum delivery pressure to 50 PSIG
  • Front loading seat assembly is easily replaceable in the field.
  • 0-160 PSI high pressure gauge (Right Hand Thread)
  • 0-2000 PSI high pressure gauge (Left Hand Thread)


Dimensions:

  • 7 5/8" Wide
  • 7 1/2" Tall
