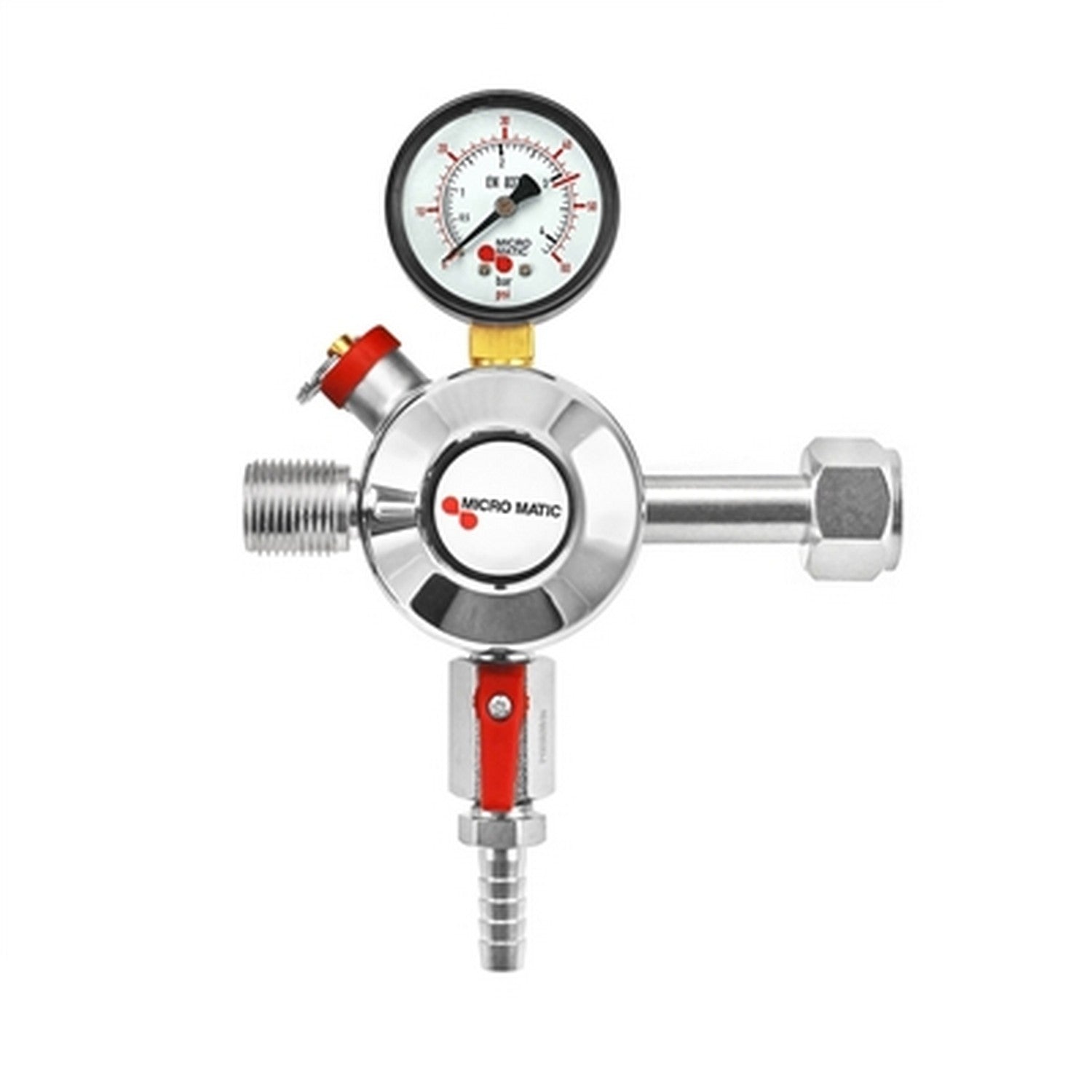

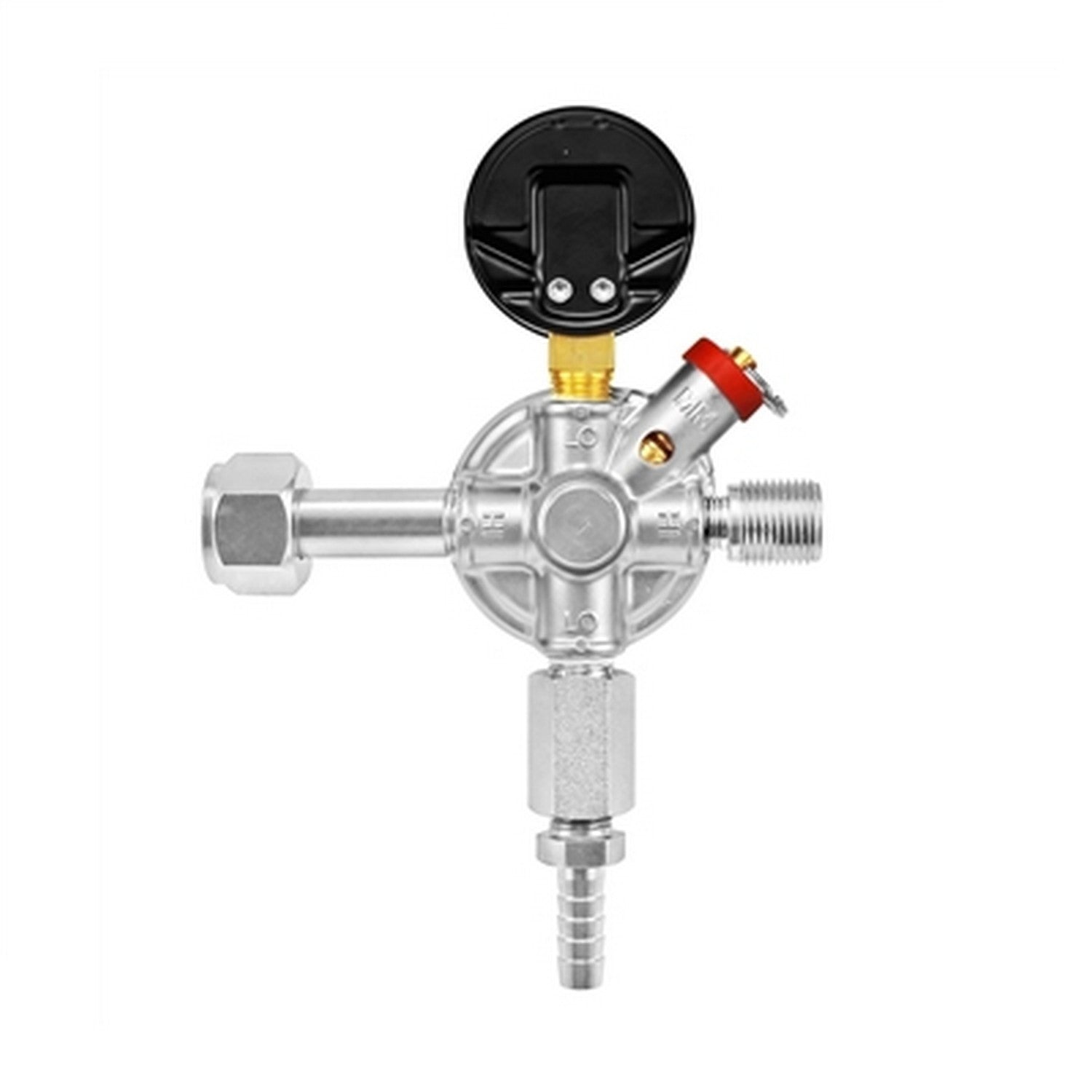

Micro Matic Primary Add-On Co2 Regulator (60 PSI) - Premium Plus Series
An invaluable add-on to your kegging setup, the Micro Matic Primary Add-On Co2 Regulator boasts a 60 PSI gauge and is crafted with a Chrome-Plated Brass body featuring both a CGA320 inlet and a CGA320 connection.
Enhance the functionality of your primary regulator with this CO2 add-on regulator, allowing for the conversion into a dual product system. Take advantage of the integrated PRV for manual release of excess CO2, while benefiting from the safety system's 'shut down' feature, ensuring blow off between 55 to 65 PSI.
Micro Matic emphasizes the importance of proper usage, stating that this add-on regulator must be connected to a primary CO2 regulator. Designed with a threaded high-pressure port on the left-hand side for tank mount (primary) regulator compatibility, failure to connect a regulator to this port may result in high-pressure CO2 venting directly through the regulator body.
Specifications:
- To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-65 PSIG. Can be manually released using the integrated PRV.
- Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up. Chrome Plated Finish. Can handle Co2
- Nickel plated valve seat for higher corrosion resistance
- Sintered bronze mesh inlet filter
- Built in CO2 resistant solid nylon inlet seal
- CGA320 Inlet (Left hand thread)
- CGA320 Add-On Connection (Left hand thread)
- Body parts are 1/4" NPT
- 3/8" OD barbed gas shut-off valve (Right hand thread)
- Working Pressure Range 0 - 50 PSI
- Front loading seat assembly is easily replaceable in the field
- 0-60 PSI low pressure gauge (Right Hand Thread)
Dimensions:
- 5 1/2" Wide
- 7 1/4" Tall
