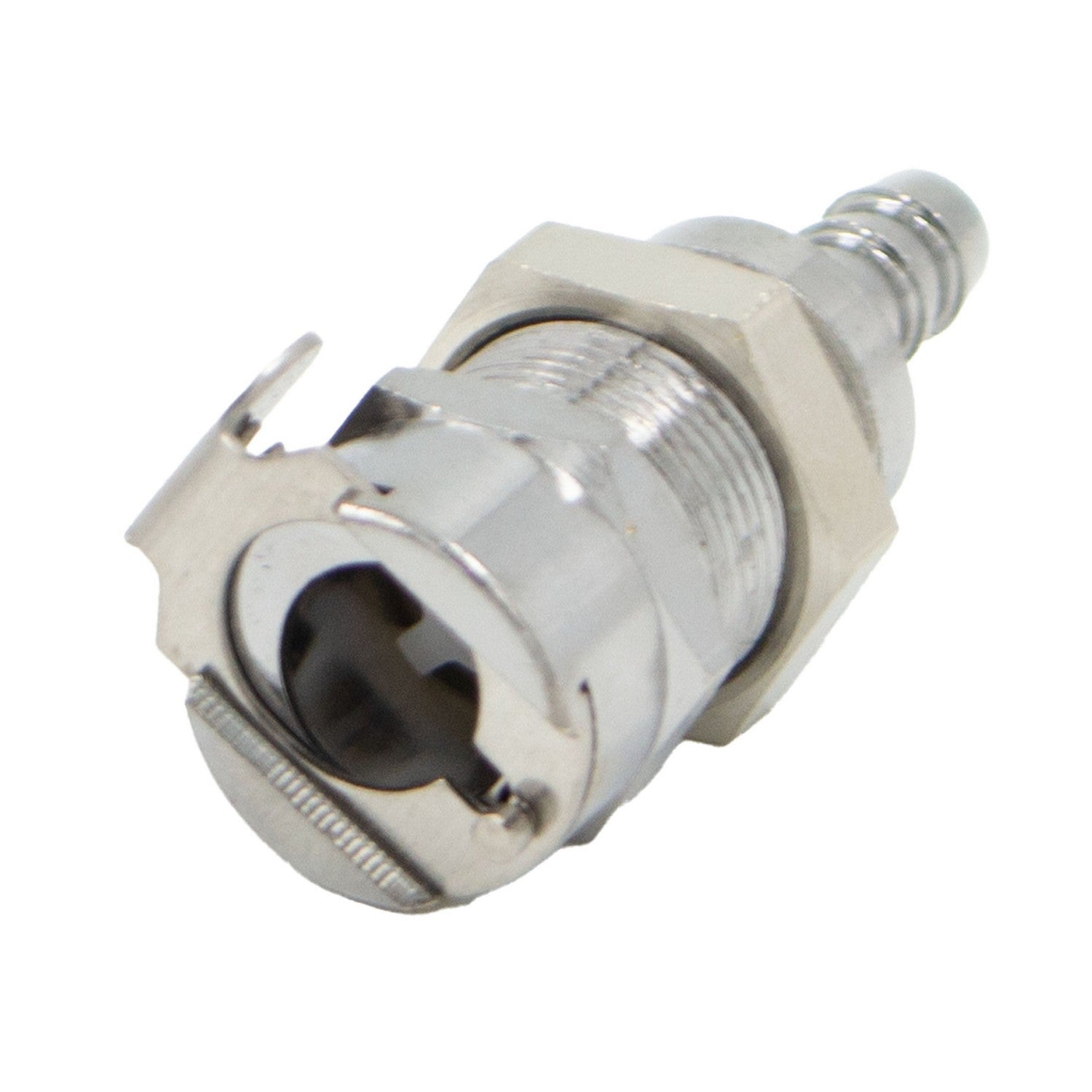

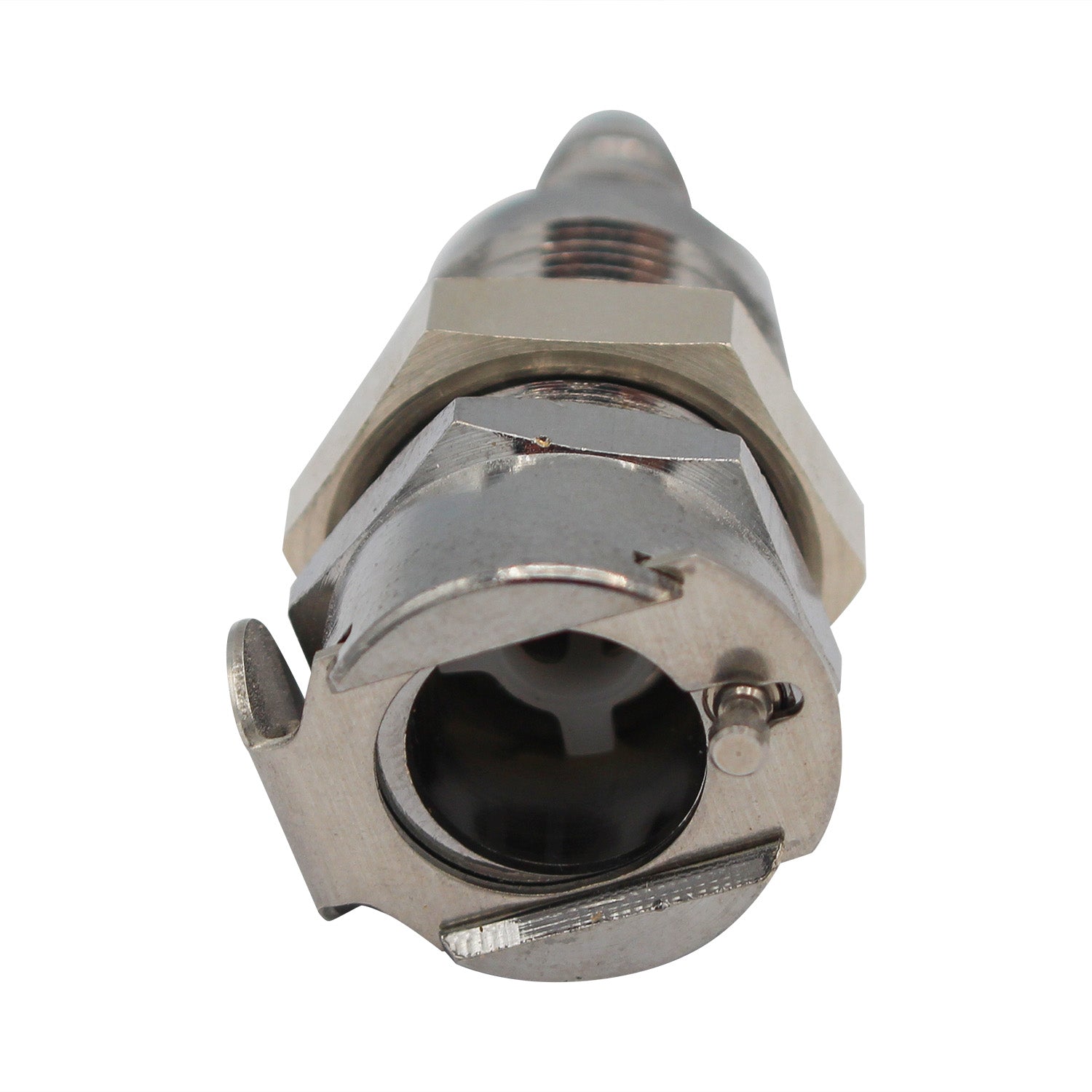

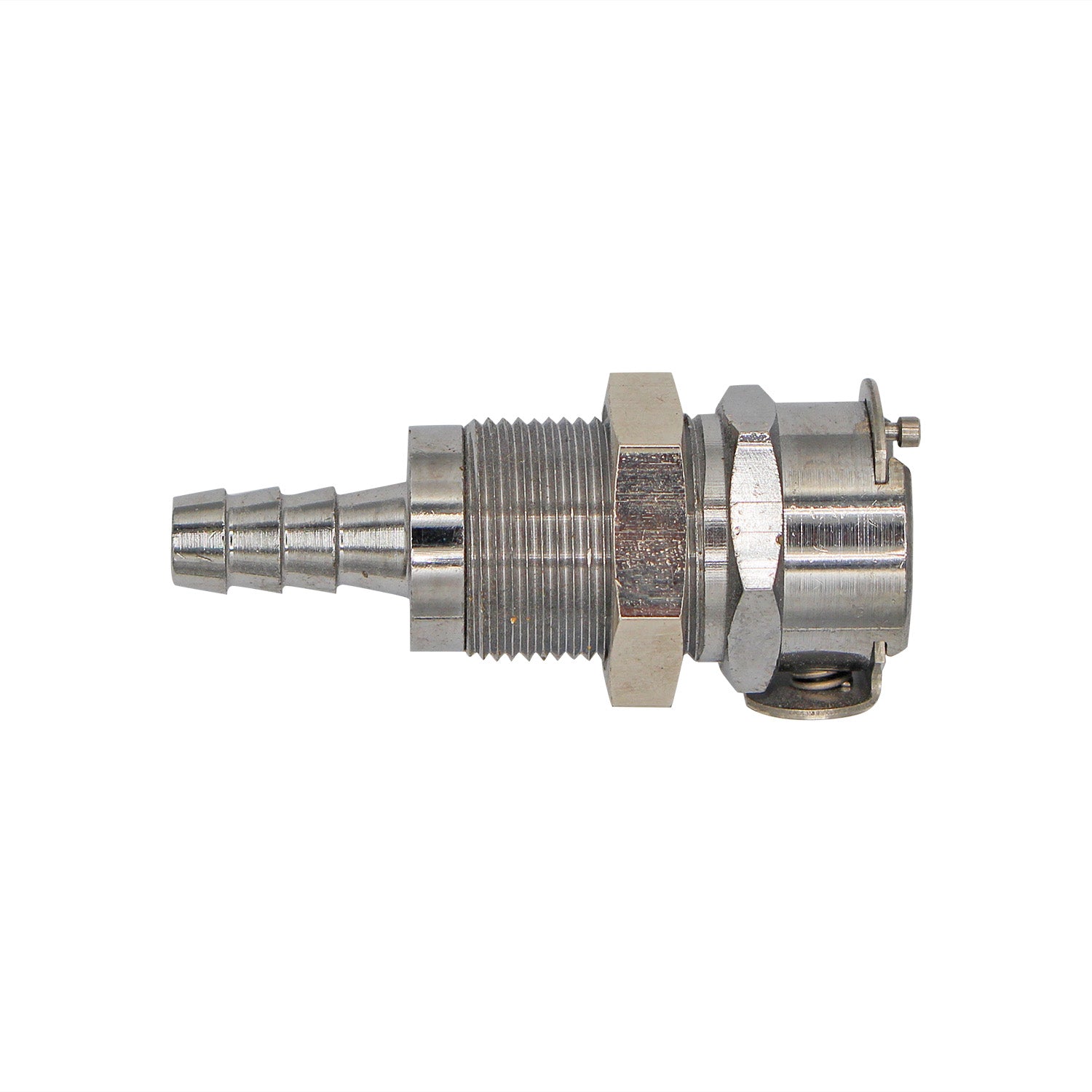

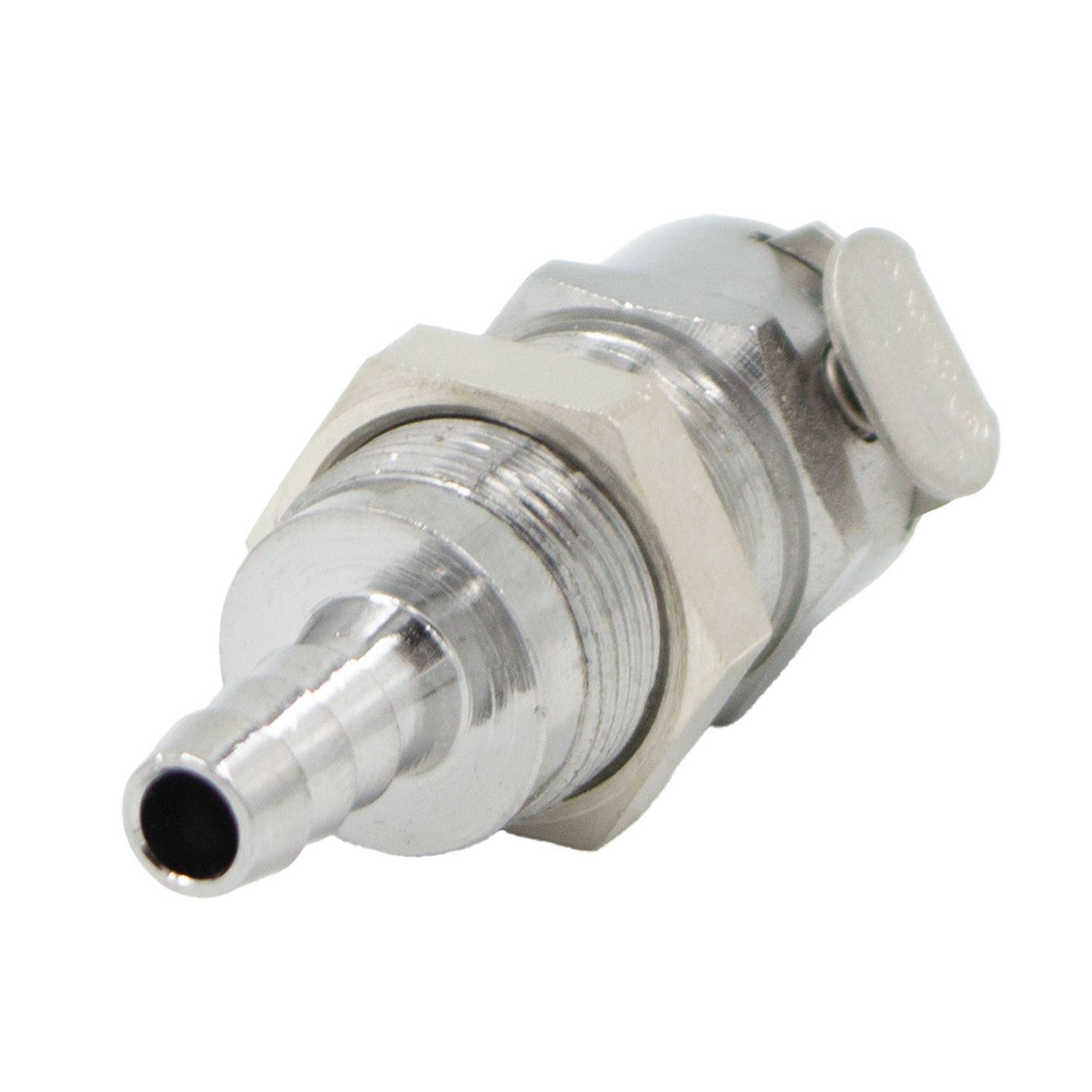

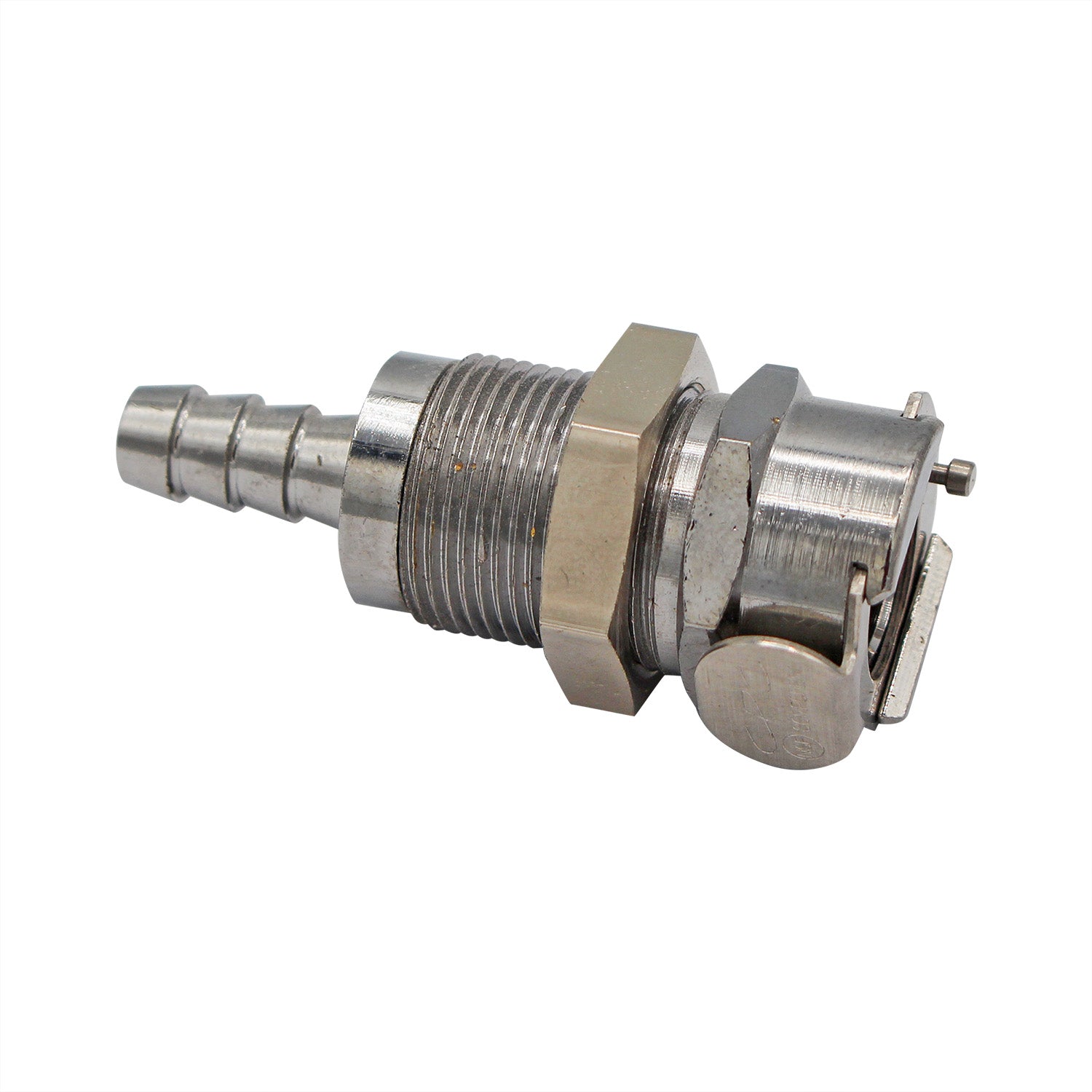

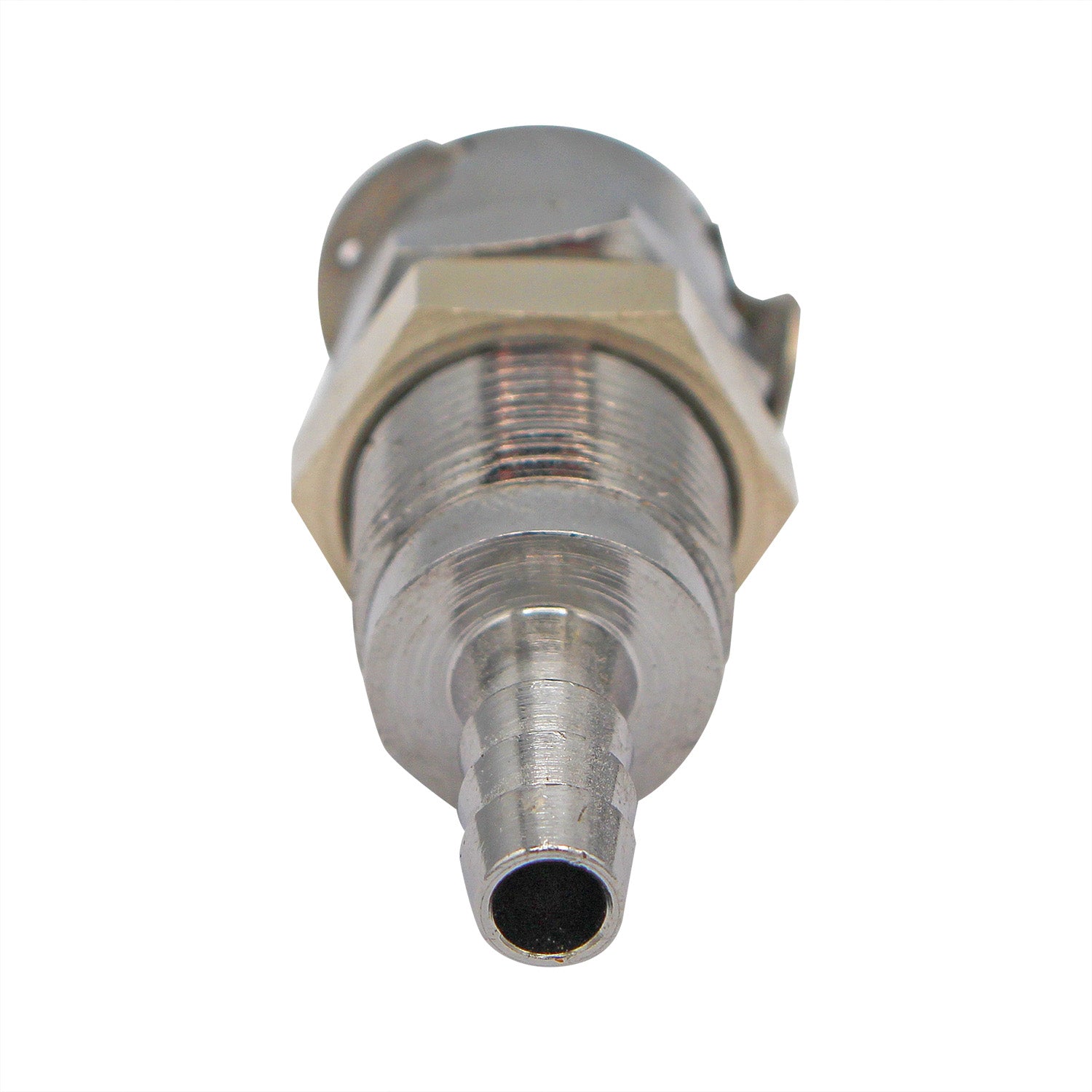

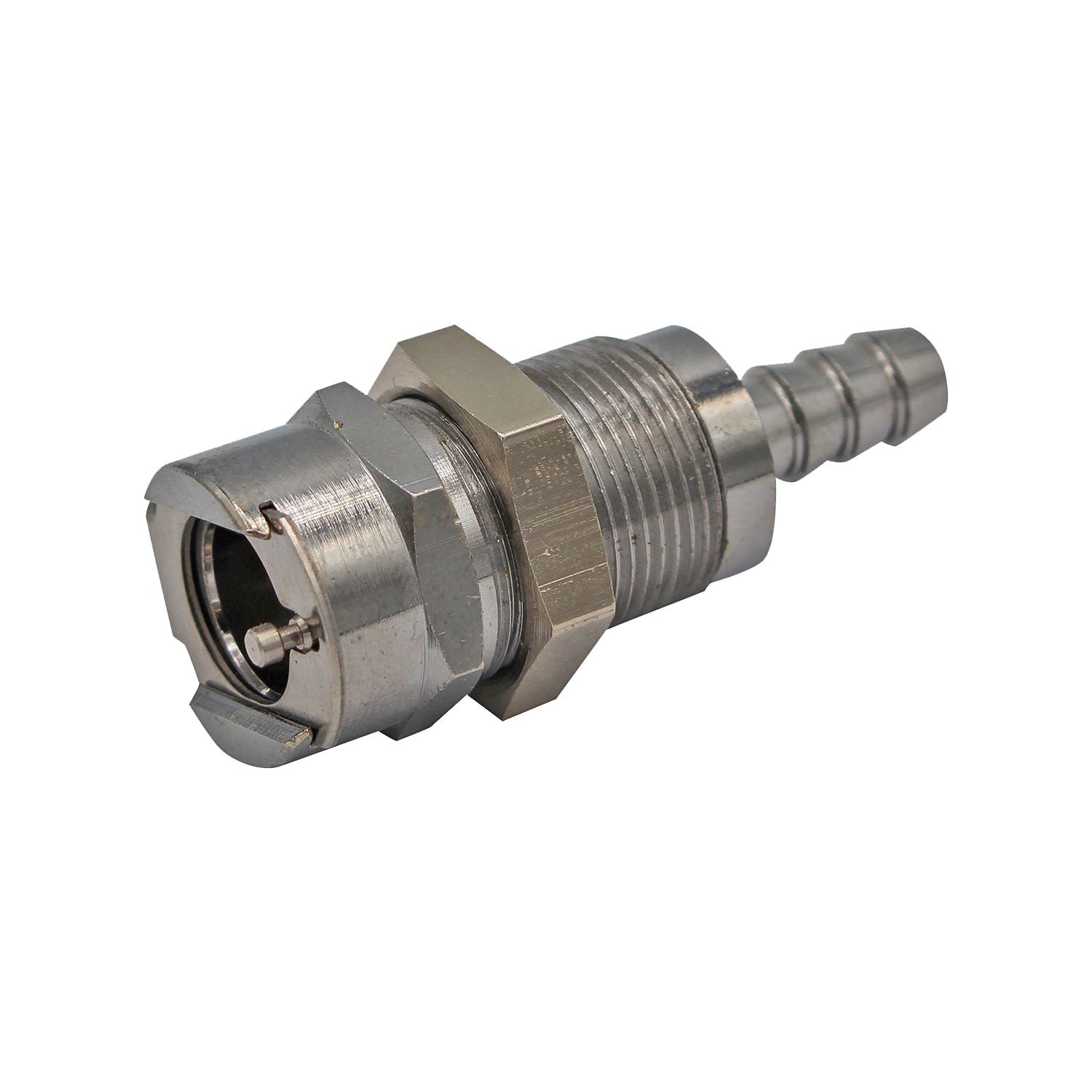

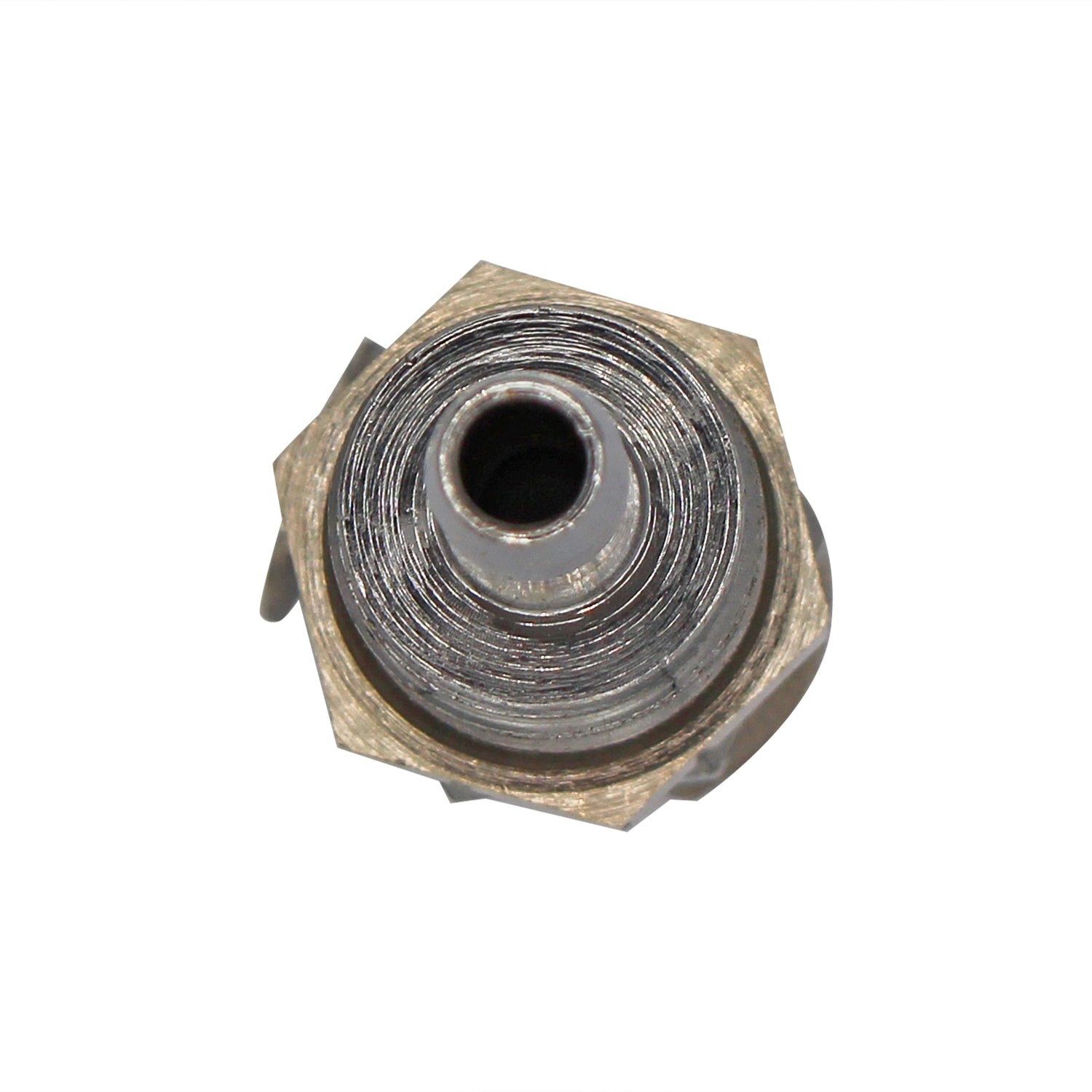

Micro Matic Chrome Plated Brass Air Quick Disconnect Coupler - Female QD X 1/4" OD Barb [70300]

  • $66.69


Introducing the Micro Matic Air Quick Disconnect Coupler, crafted from high-quality chrome plated brass. This coupler is designed to seamlessly connect with other quick disconnect hardware, allowing for effortless transitions between keg setups. Please note that this coupler is not compatible with plastic or stainless steel quick disconnects.

What sets these quick disconnect couplers apart is the integrated bulkhead that offers a wider range of installation options. The forward locknut, expertly welded to the assembly, ensures a secure attachment and minimizes the risk of leakage. With a maximum wall thickness of 1/2" and requiring a 5/8" hole for installation, these couplers guarantee a hassle-free setup process.

To install the coupler correctly, simply insert the quick disconnect fitting into the gas line. This eliminates the need for tools when disconnecting from the gas source. By pressing the spring-loaded disconnect tab on the female side, the connection will separate, effectively shutting off the gas flow.

It features a 1/4" OD barb on the end, offering seamless connectivity to any 3/16" and 1/4" ID tubing you may have.

Specifications:

  • Chrome Plated Brass
  • Female Quick Disconnect
  • Built-In Shutoff
  • Integrated Bulkhead
  • 1/4" OD Barb
  • 2" Length
  • Maximum Wall Thickness of 1/2"
  • Maximum Pressure of 150 PSI (10.3 BAR)
  • Operating Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Compatible with 3/16" & 1/4" ID tubing

Compatabile with:

  • Micro Matic Chrome Plated Brass Air Quick Disconnect Nipple - Male QD X 1/4" OD Barb [73000]
