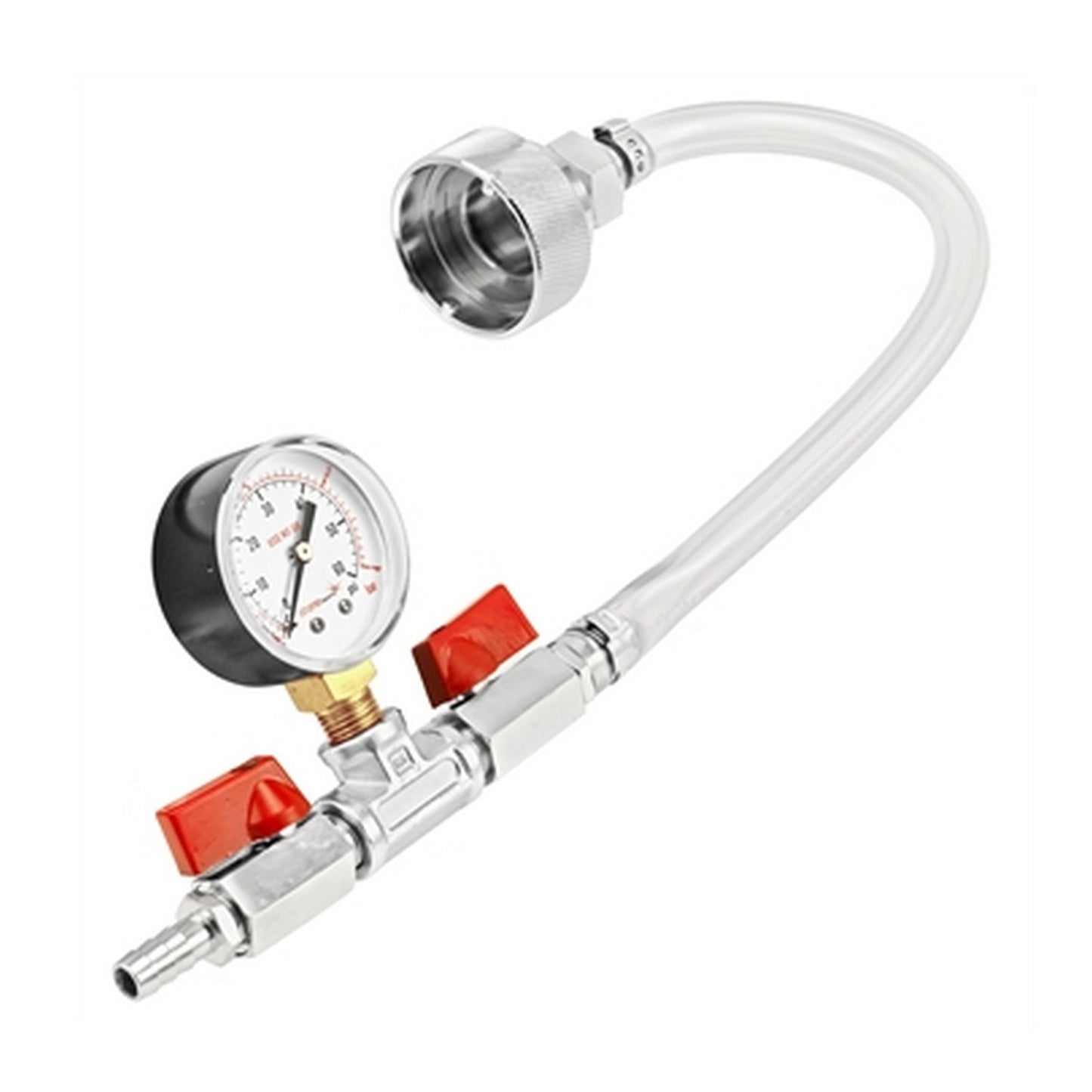

Co2 Pressure Tester

Co2 Pressure Tester

There are 2 shut-offs on this Sanke "D" & "S" CO2 Pressure Gauge. Once you have installed this device, you can test your regulator gauges to ensure they are 100% accurate.

This pressure tester works best when used with 0 - 60 PSI gauges, and thanks to the 'zero adjusting', it can be calibrated with ease.

Process:
  • Check System for Pressure Leaks Before Using Tester.
    Regulator gauge readings are inconsistent when leaks are present.
  • Reset Gauge Pointer to Zero.
    If the tester gauge is not already at zero, remove the cover from the faceplate and place thumb and index finger on each side of the pointer close to the pivot point (hub). Insert a small screwdriver into the slot at the pointer's hub and lightly turn against thumb and finger. Release the pointer and continue adjusting until the pointer rests at zero. Re-attach the faceplate, and the tool is ready for use.
  • Test Your CO2 Pressure.
    The tester can be attached to either Sanke "D" or "S" keg coupler with the adapter. Alternatively, it can be connected directly to the shut-off from the regulator or gas distributor.
  • Testing From Regulator.
    Attach the 3/8" OD hose barb to the appropriate sized tubing and hook directly up to the regulator or gas distributor. Ensure that the shut-off valve is open on the shut-off valve side and the valve is closed on the coupler adapter side.
  • Testing From Sanke Keg Coupler.
    Attach the adapter to the Sanke "D" or "S" keg coupler. Ensure that the shut-off valve is open on the adapter side and the shut-off is closed on the open valve side.
  • Test the CO2 Pressure.
    With either of the two prior methods used, apply pressure from the regulator. If the regulator gauge is inaccurate, adjust it to match the tester's pressure gauge. Replace or repair regulator or regulator gauge if needed. To ensure that no beer enters the tester's gauge, please try to keep the gauge upright while using the Sanke adapter.
