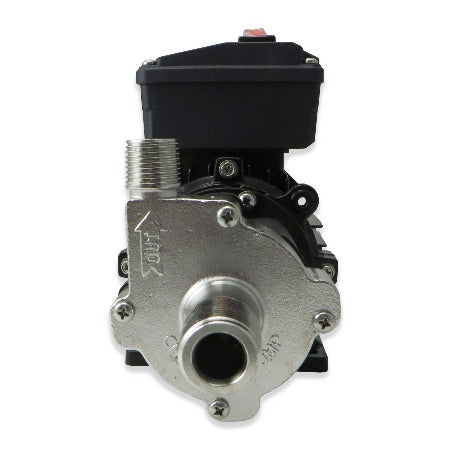

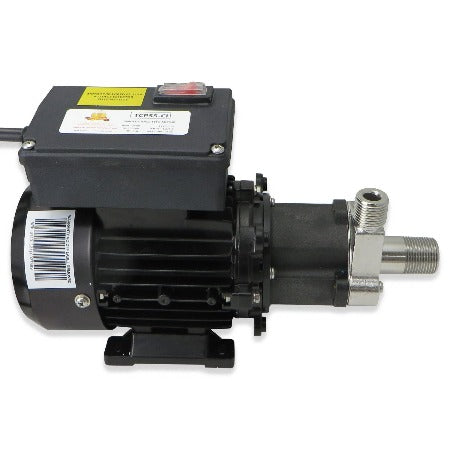

Chugger Pump Mini Max - Center Inlet Stainless Steel Head

  • $282.99

Are you looking to increase flow rates of wort transfer for a more efficient and larger setup? This little pump may be just what you are looking for, since it has 30 times the horsepower of the starter Chugger pump.

The stainless steel housing can handle liquids at temperatures up to 250°F. When the pump is operating please note that the inlet valve should never be restricted, only the outlet.

The front and rear housings of the pump are made from 316 stainless steel for greater durability. The Chugger Max also has sealed bearings so there is no need to oil it.
Caution: Please Note: The pump head and lines need to be full before the pump is started. DO NOT RUN DRY
Features: Specifications:
  • Inlet 3/4" MPT Outlet 1/2"MPT
  • Ryton/Teflon (Impeller)
  • Max Flow 7 GPM 22.7 LPM
  • Max Head 18.6 FT 4.1 M
  • Power .125 HP .093 KW
  • Electrical 115V & 230V
  • Non-Submersible
  • 60HZ 50HZ
  • RPM: 3500
  • Fan Cooled Motor
  • Motor AMP Rating - Full Load Amps (FLA)
  • Motor Only: 1.4 Amps
  • Motor and Pump: 2.0 Amps
